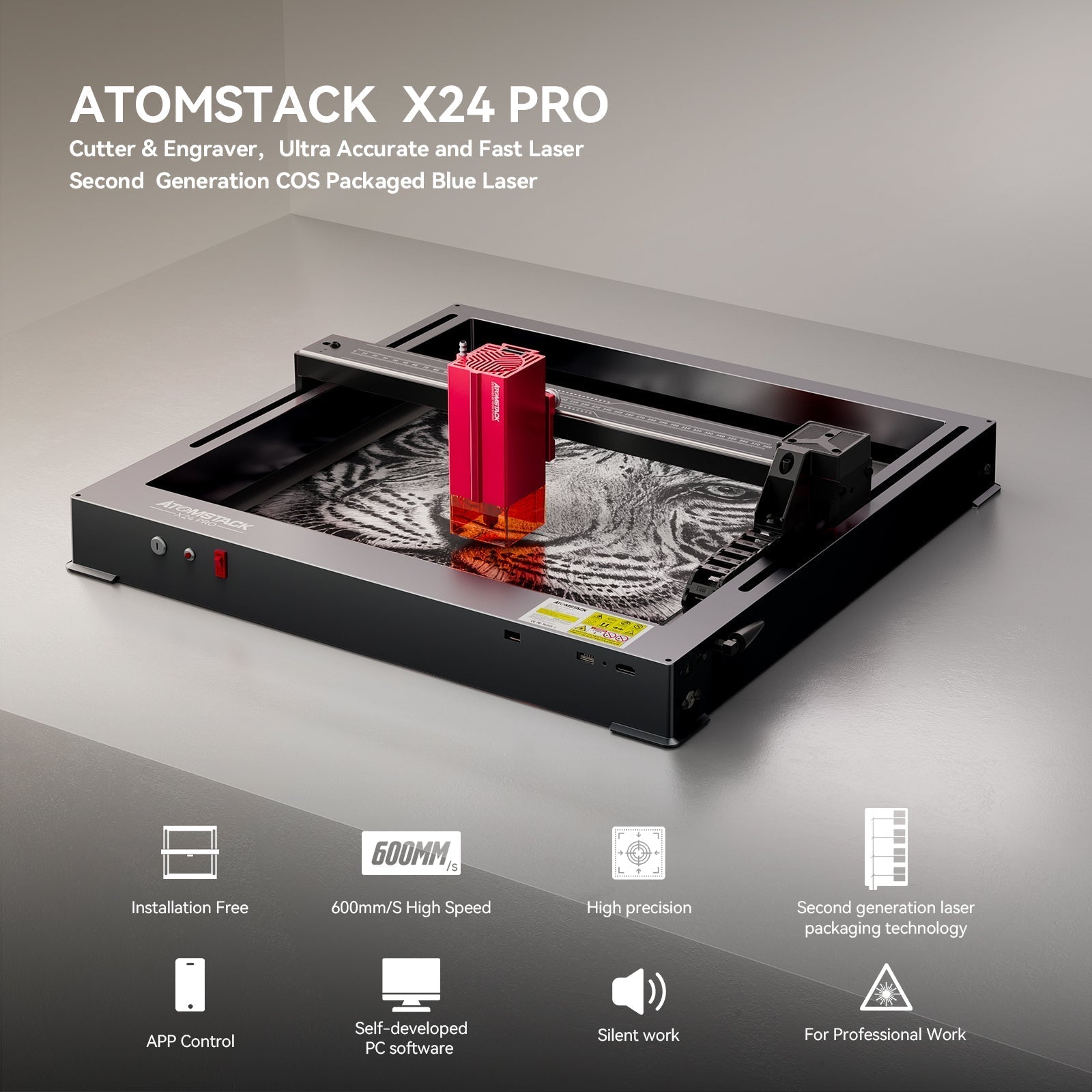

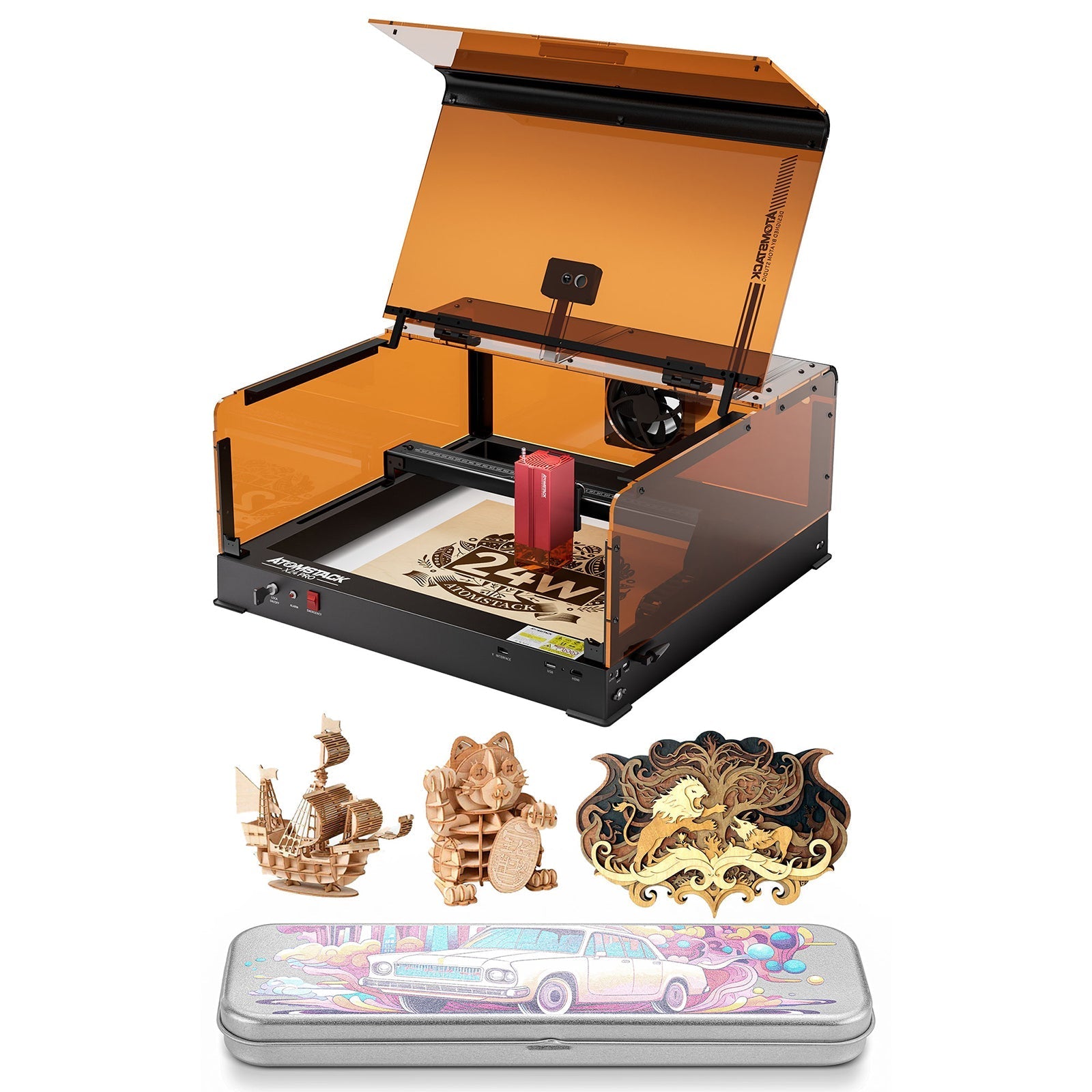

AtomStack X24 Ultra Laser Engraver

Main Features:

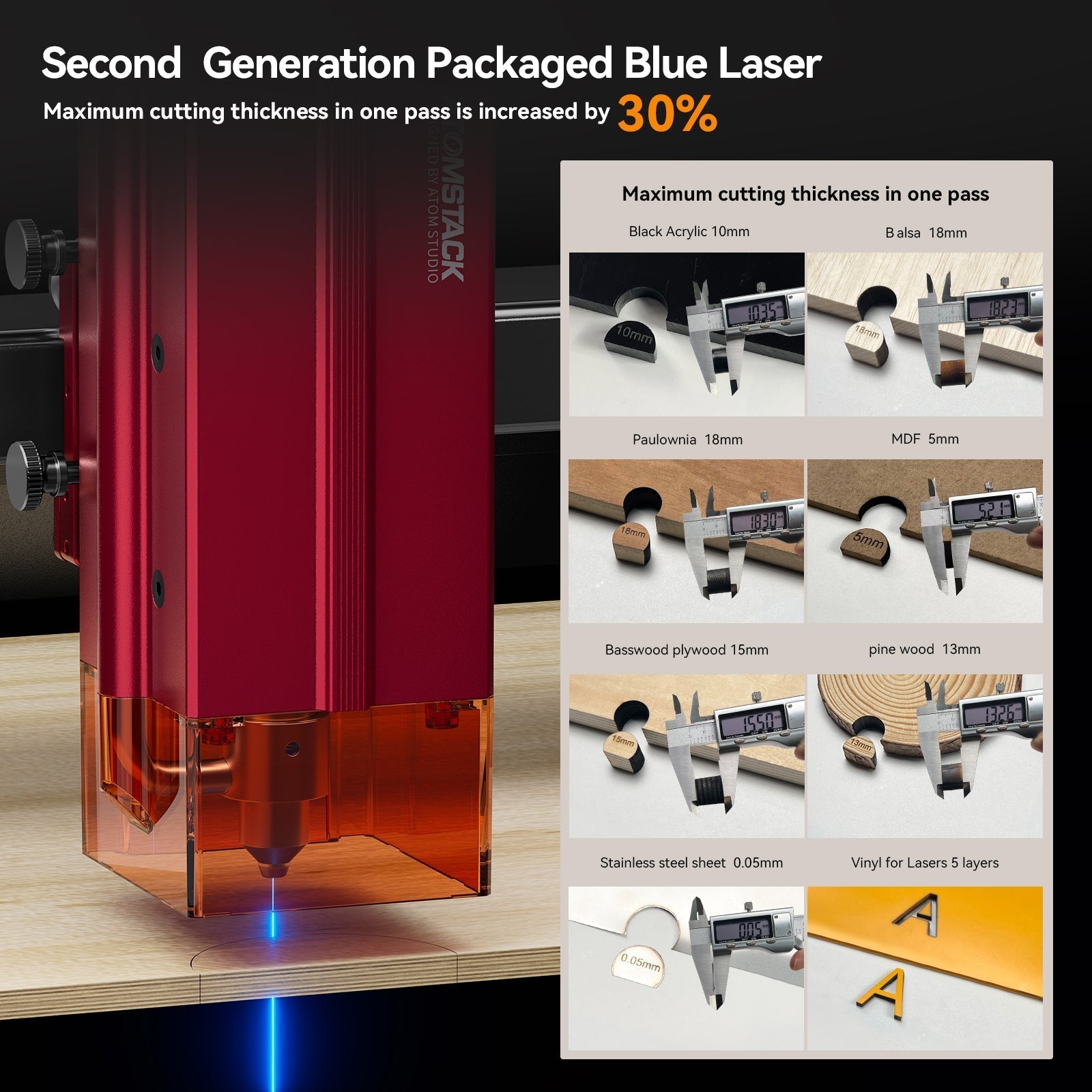

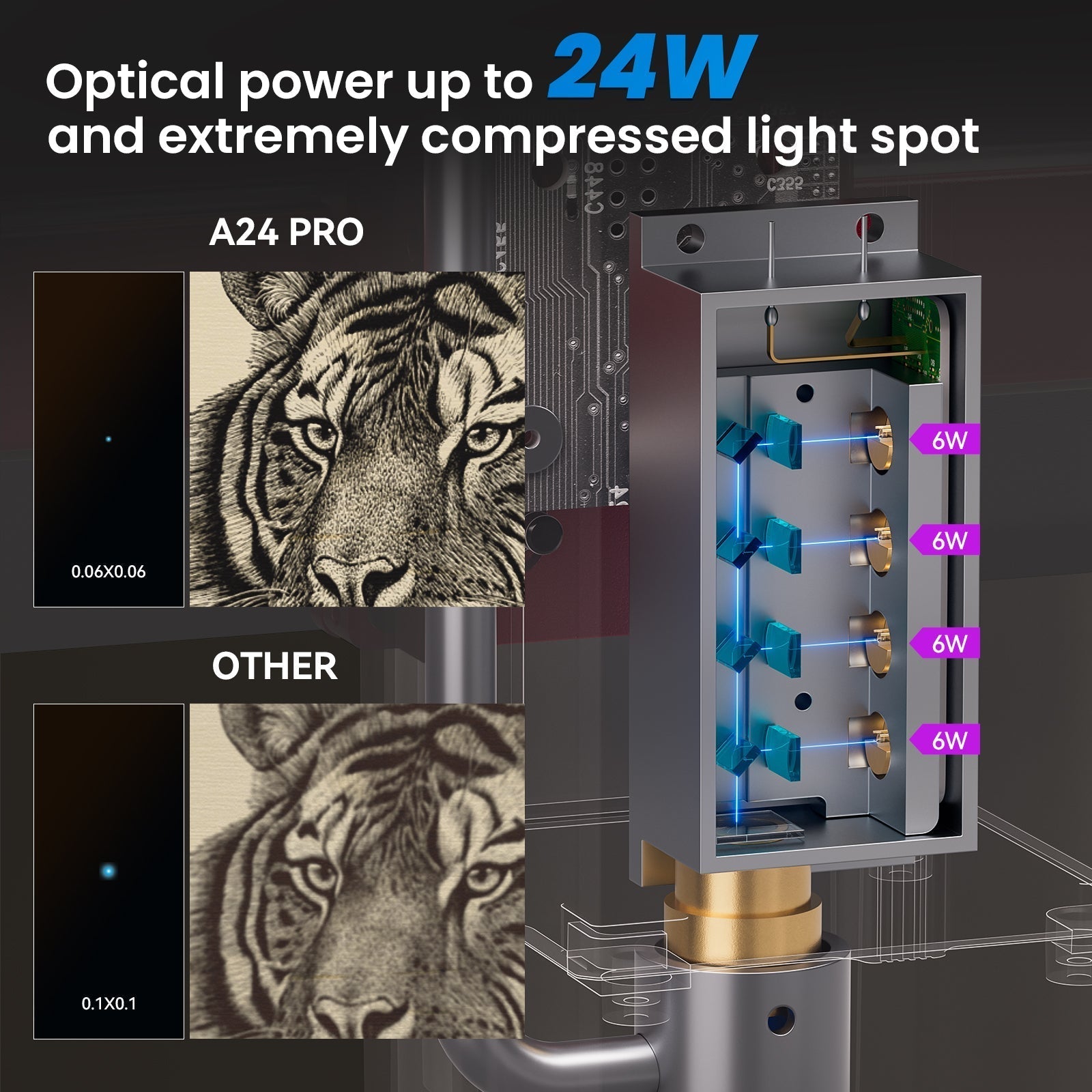

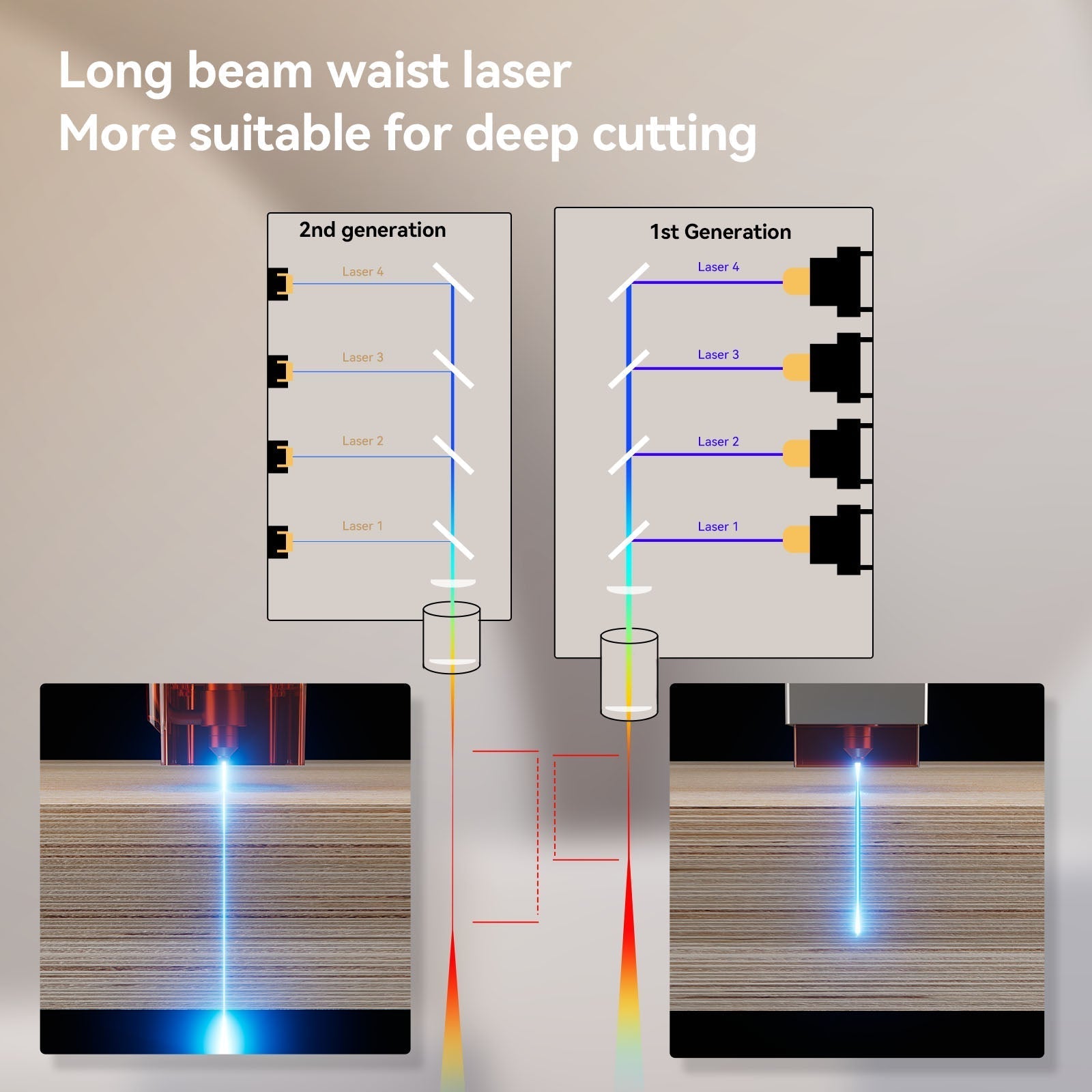

1.Unprecedented Power: The world's first laser engraver boasting a 24W optical power. With a cutting-edge combination of four 6W lasers, it effortlessly cuts through 12-15mm thick tungsten and 8mm thick acrylic in a single pass, and can even handle 0.05mm stainless steel.

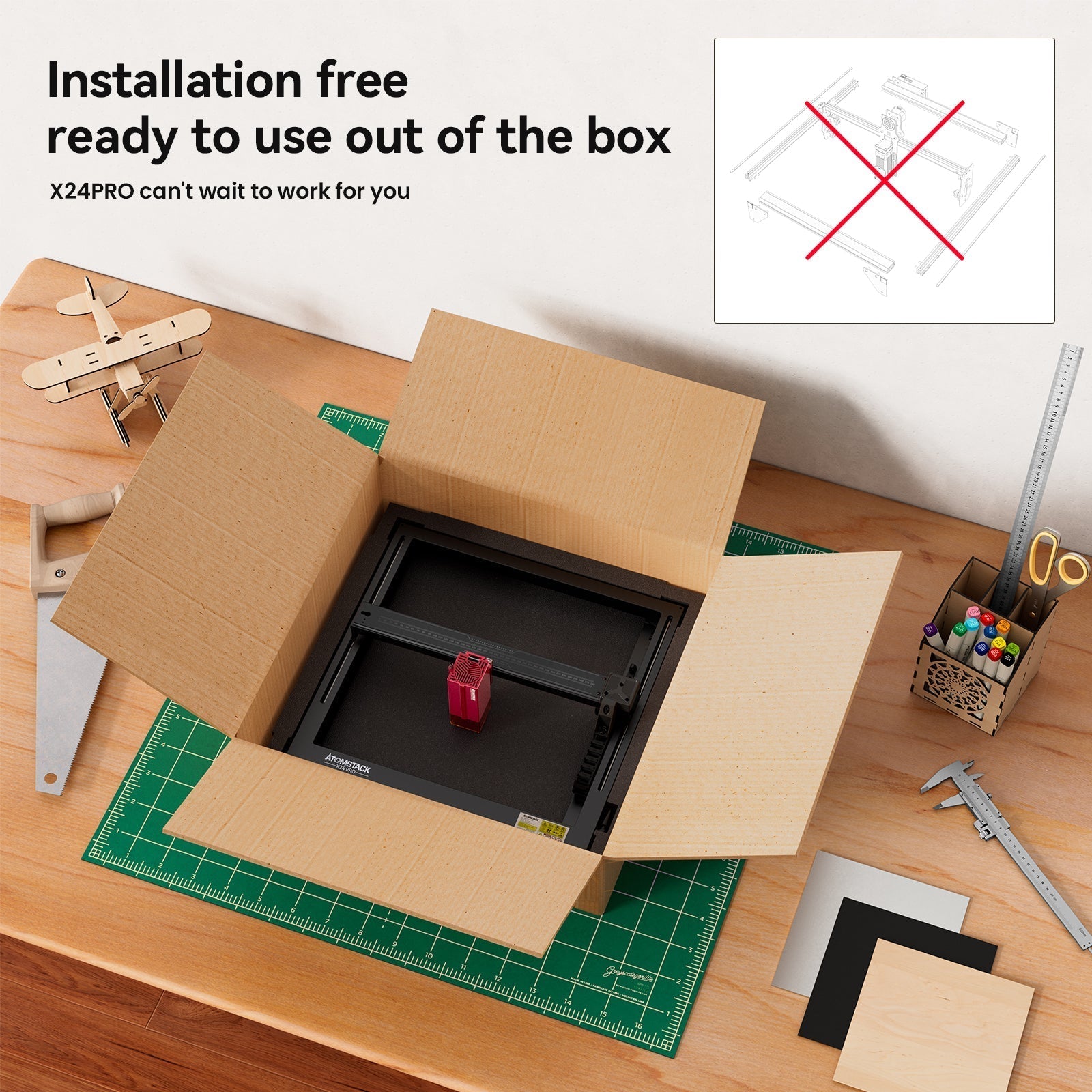

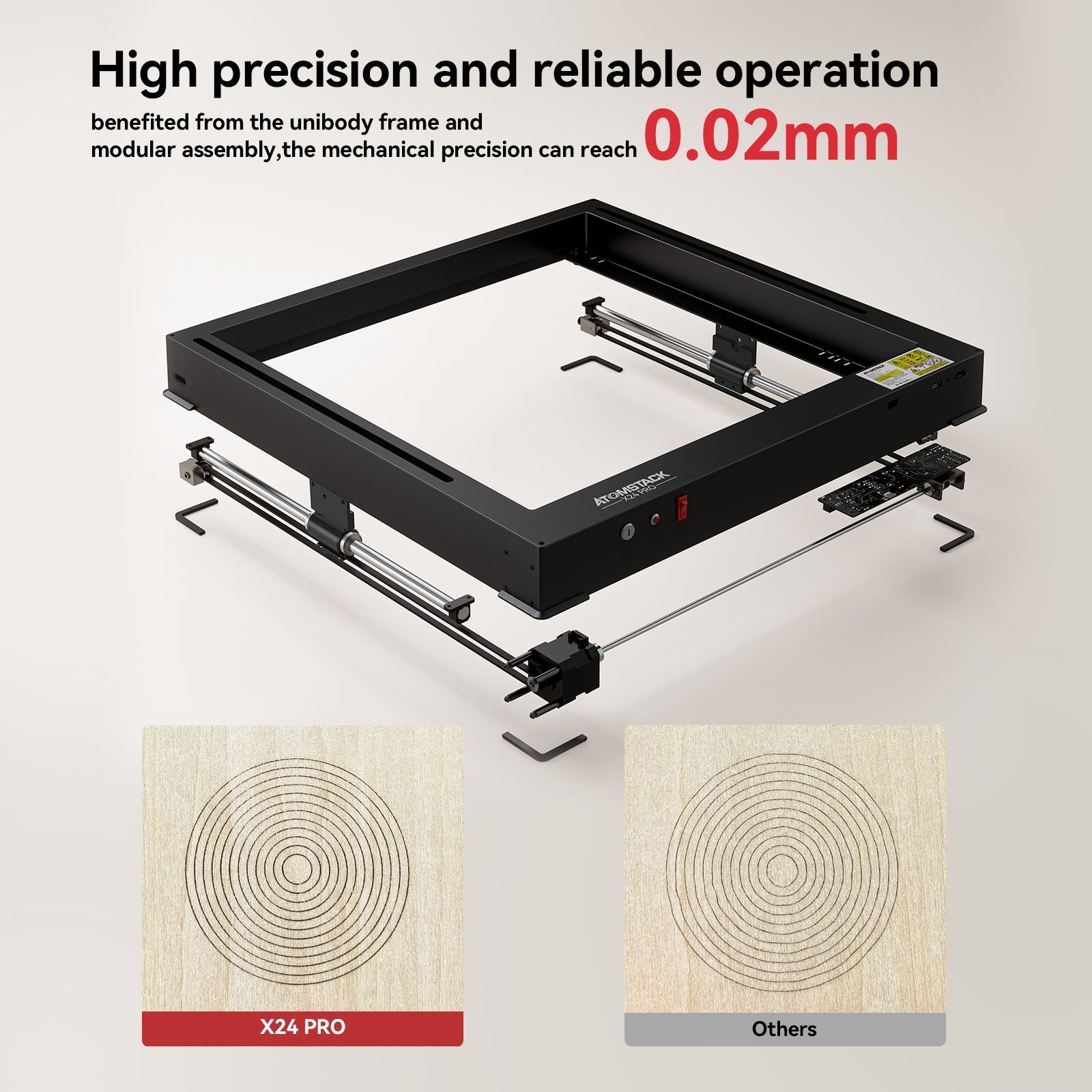

2.Sturdy and No Setup Required: Crafted from anodized full aluminum alloy, this design ensures durability and engraving precision. Plus, it's one-piece frame design, calibrated with precision before shipping, allowing you to use the perfect machine right out of the box.

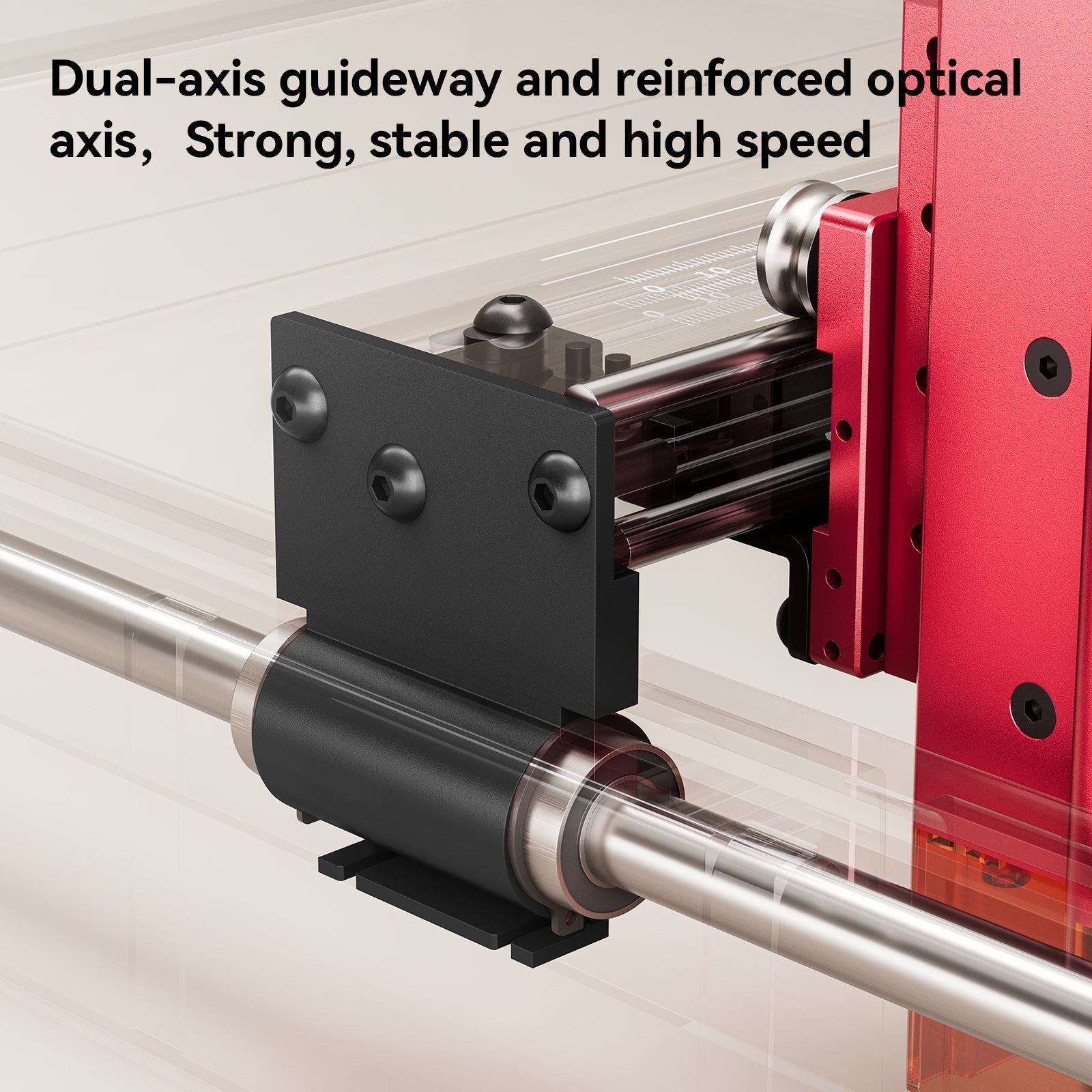

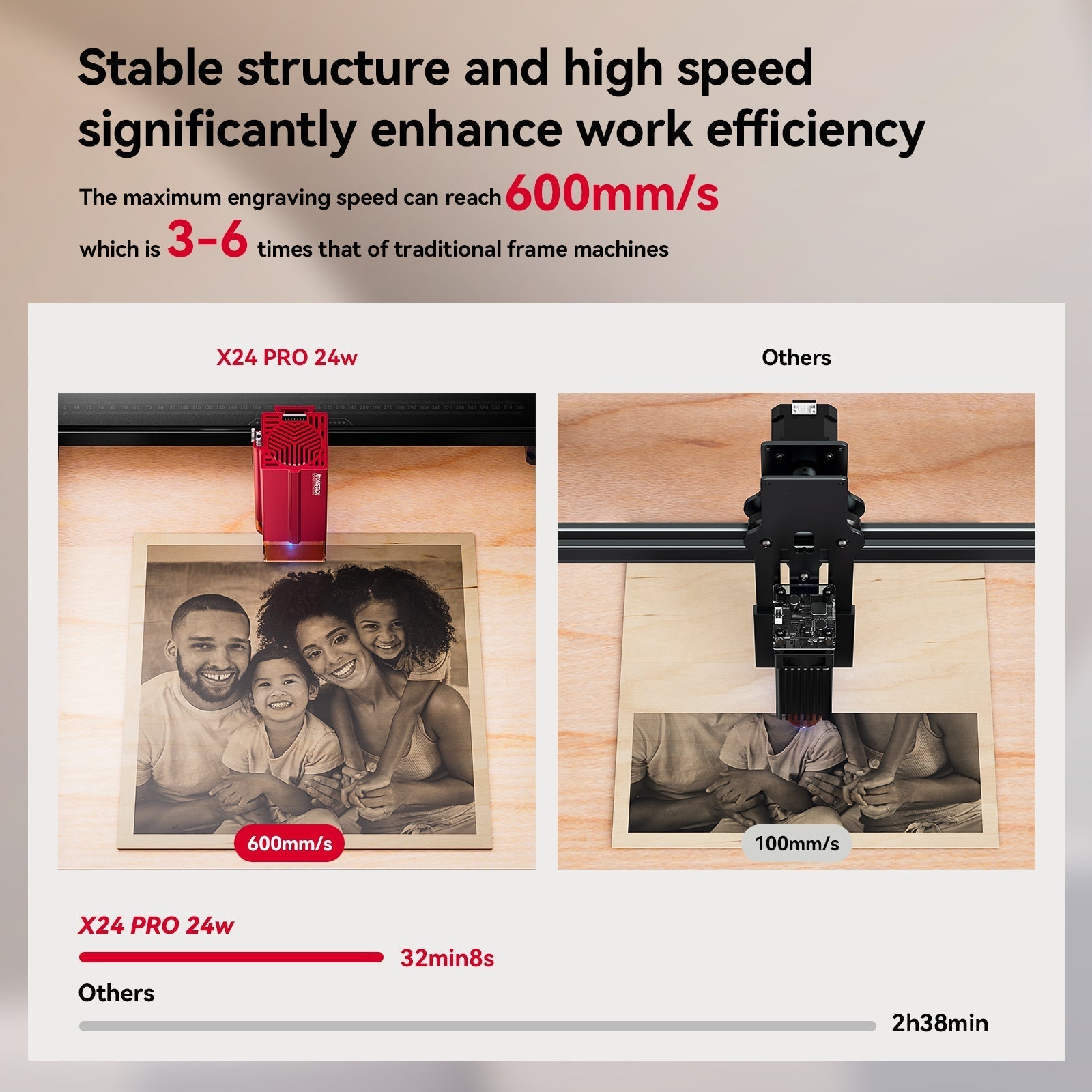

3.Enhanced Motion Structure: The AtomStack X24 PRO sets a new standard with its superior structural stability, employing a linear guide for the X-axis. This ensures smooth operation at high speeds of up to 600mm/s, yielding perfect engraving and cutting lines without any shaking.

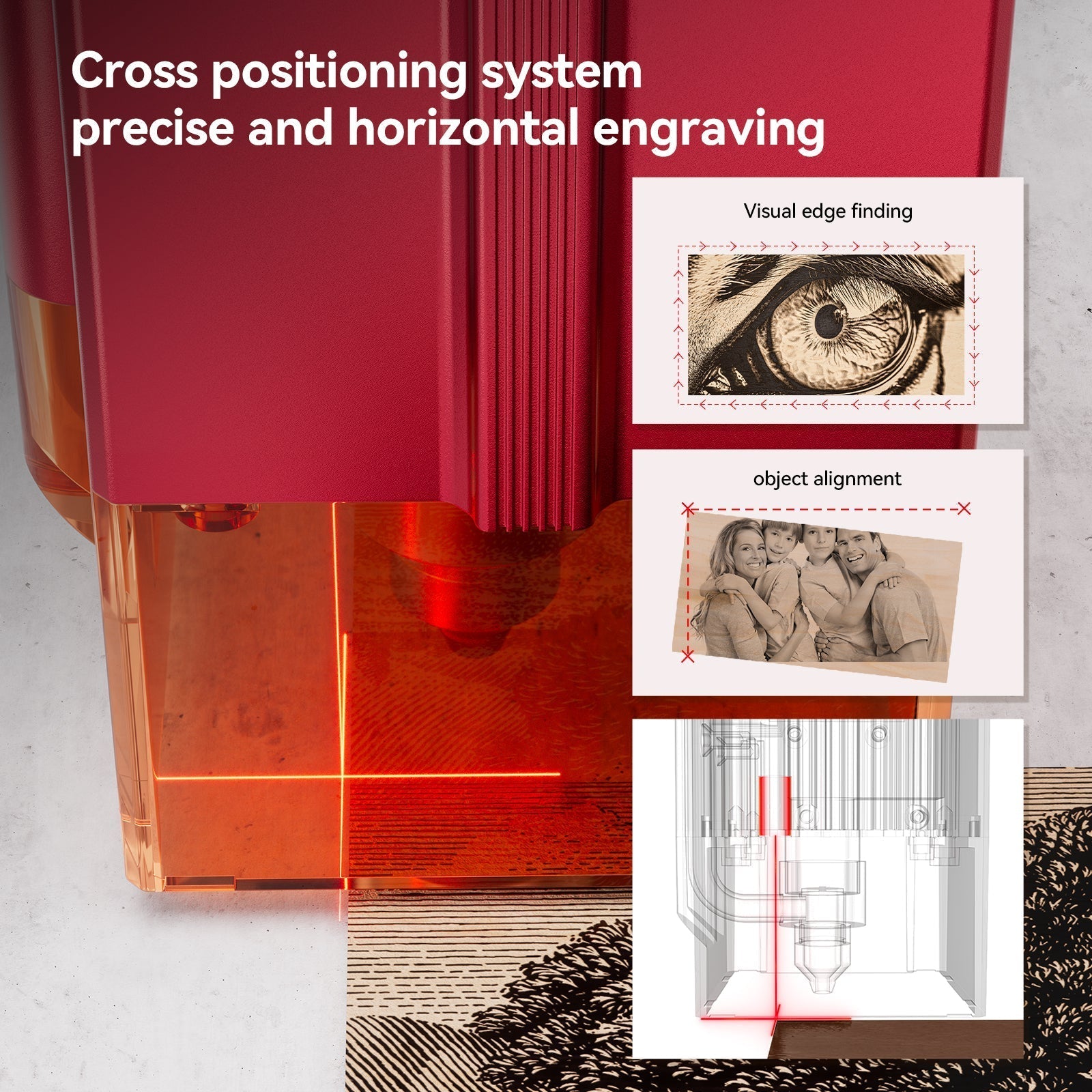

4.?Cross Laser Positioning: Newly added cross laser positioning feature for clear visibility of the laser¡¯s location, perfect alignment for engraving, and easy horizontal adjustment.

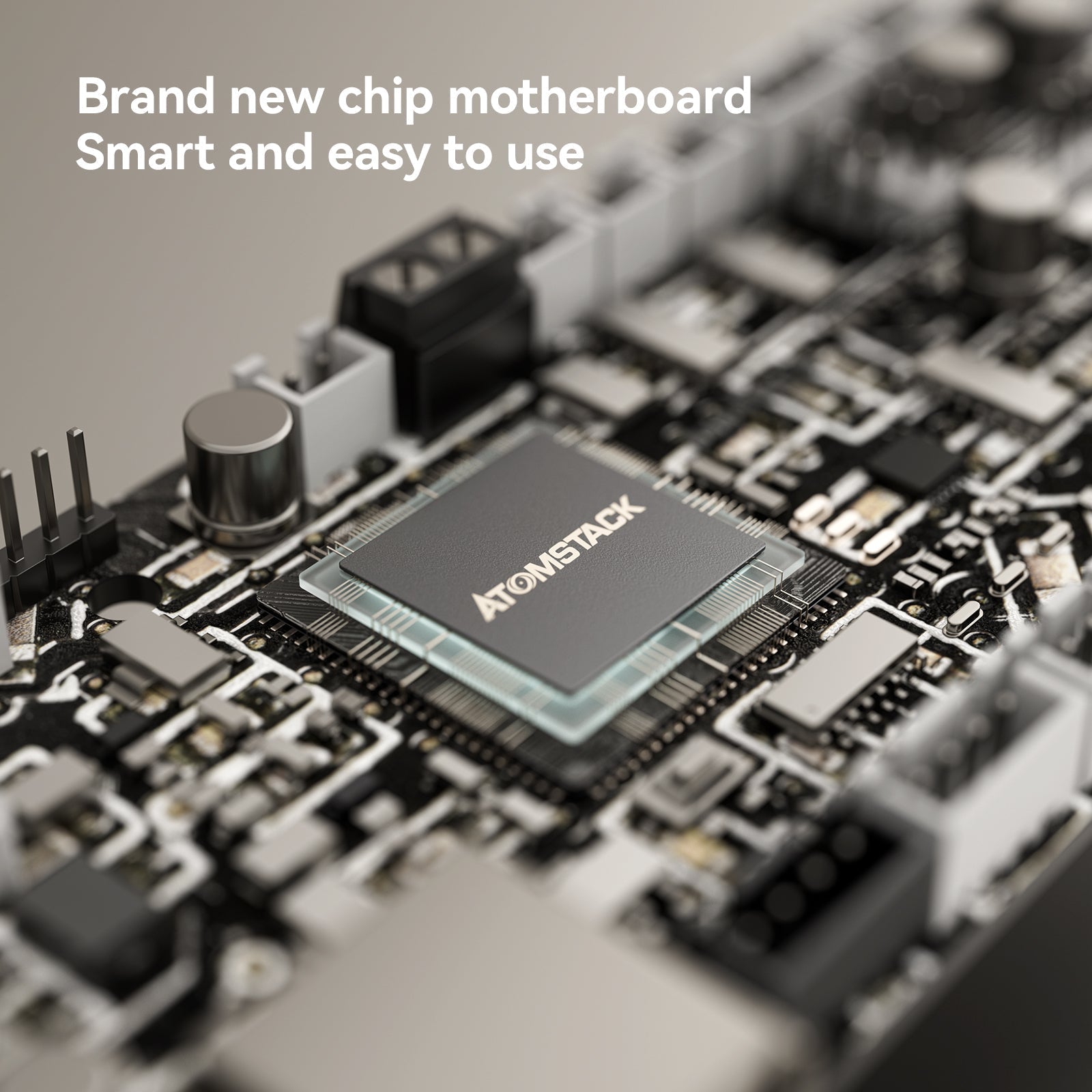

5.Advanced 32-bit Motherboard: Our latest AtomStack innovation features a 256-bit color scale, delivering unparalleled engraving clarity and contrast. Now, vibrant projects aren't just a dream!

6.AtomStack Mobile App: Available on major Android and Apple stores, our custom-designed app provides a unique, seamless control experience. All in the palm of your hand!

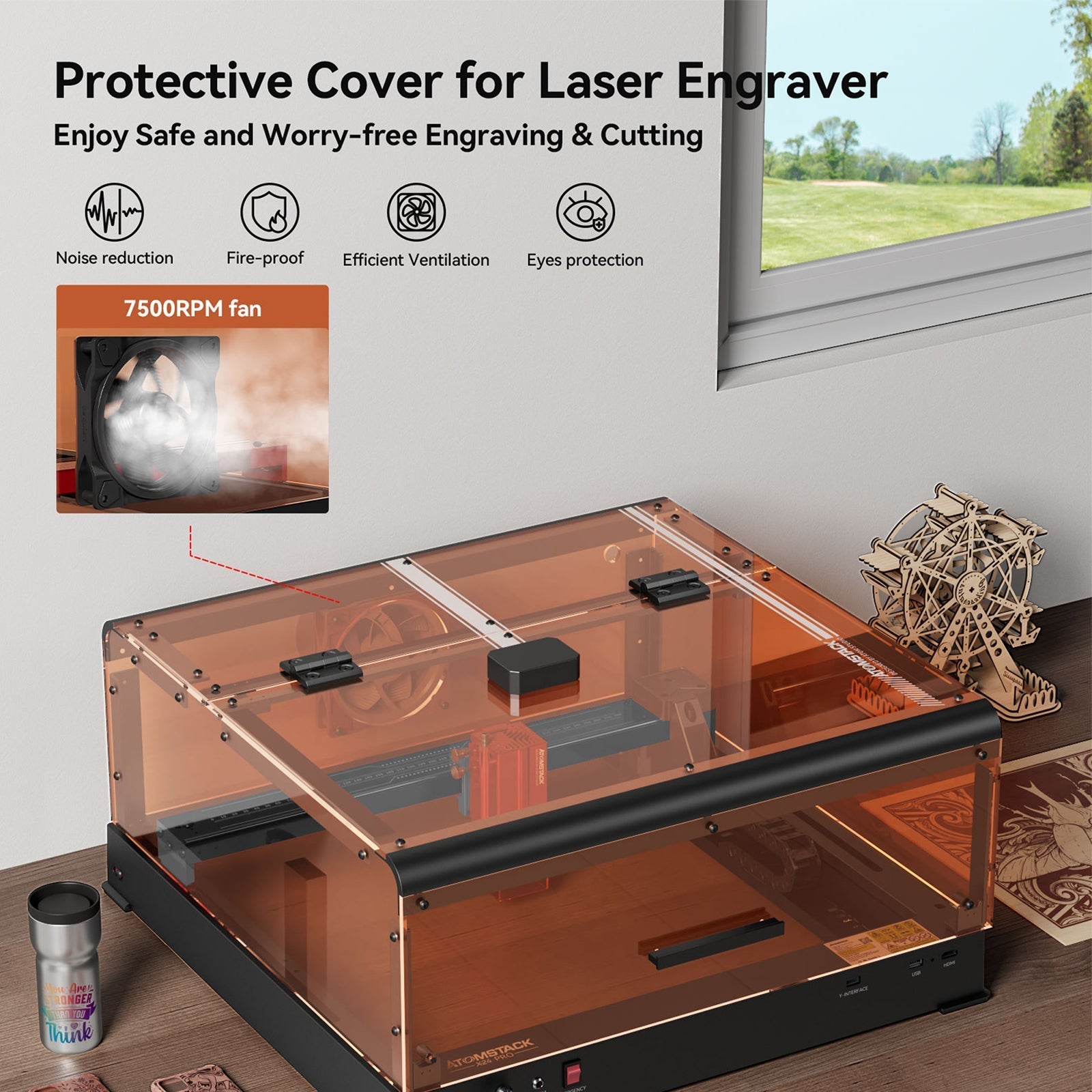

7.Eye-Protection Redefined: Our panoramic filter glass cover shields eyes effectively, blocking 97% of UV light. No more goggles; observe your engraving in real-time, safely.

8.State-of-the-Art Fixed-Focus Laser: No more pre-engraving adjustments. This laser's focal spot is notably smaller and more precise, marrying detailed engraving with powerful cutting.

9.Universal Compatibility: Supports a plethora of engraving software like LaserGRBL and LightBurn. Compatible with numerous OS and file formats, ensuring flexibility in your projects.

10.Detailed Axis Scale Lines: Precise scales on the X and Y axes enable swift measurements. With a generous 365*305mm engraving area, all your project needs are covered.

11.Superior Compression Technology: An ultra-fine laser focus of 0.06*0.06mm allows for easy cutting of materials like 25mm wood and 30mm acrylic. Its performance rivals that of a 300W CO? laser engraver.

12.Integrated Screw Rod: An all-in-one design for the stepper motor and screw rod ensures pinpoint laser accuracy and enhanced durability.

13.Convenient Laser Adjustment: Newly incorporated knob facilitates easy height adjustments.

14.Extreme Sintering Temperatures: Laser sintering reaches up to a searing 2400¡æ.

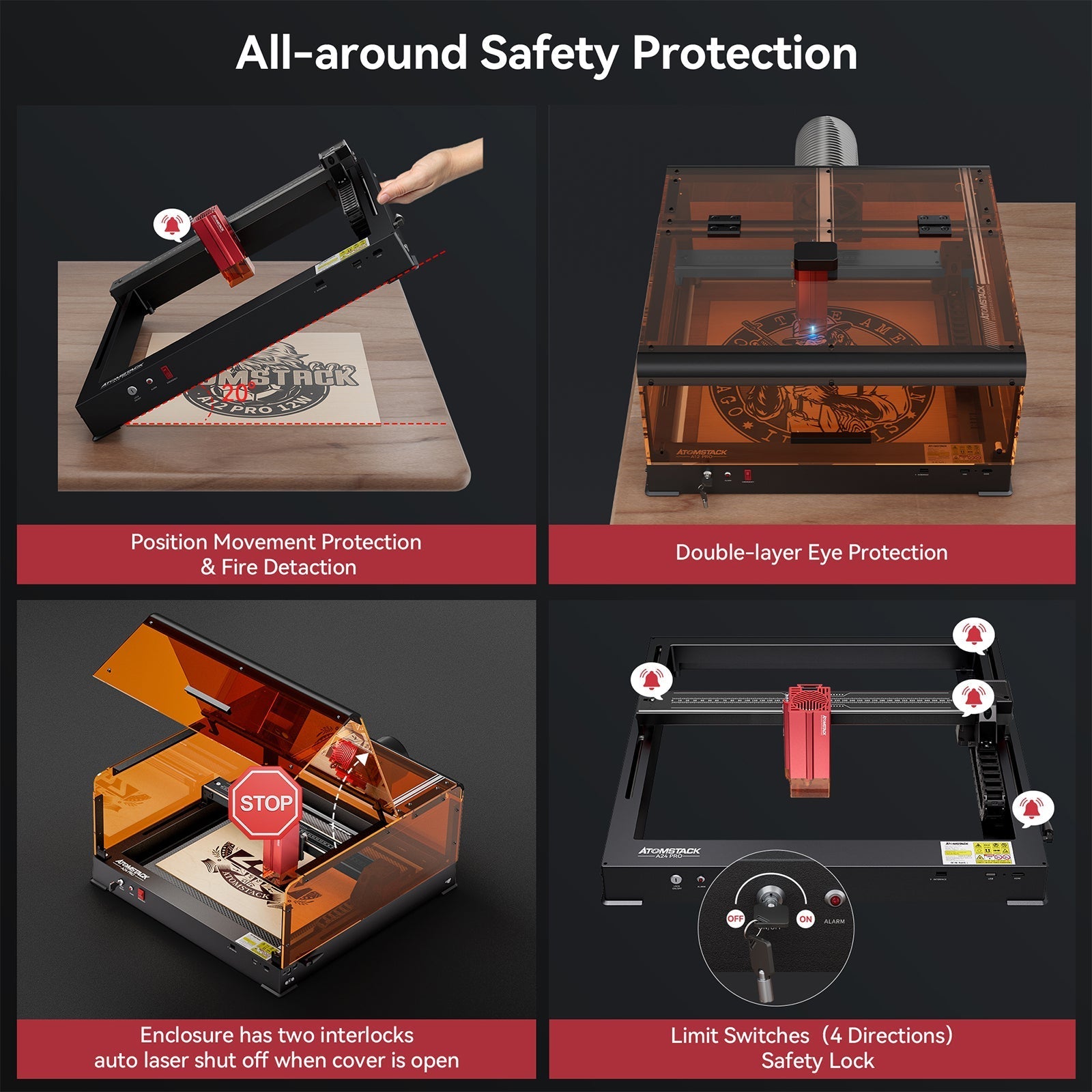

15.Side-Over Warning: Built-in gyroscope detection, when the tilt angle of the machine is greater than 15¡ã, an alarm will be triggered, making engraving safer.

16.Emergency Control: An incorporated stop button ensures immediate response during unexpected situations, enhancing safety.

17.Built-In Limiter: Included for added safety and precision.

18.Reset Capability: Built-in for user convenience.

Specification:

Brand: Atomstack
Model: X24 Pro

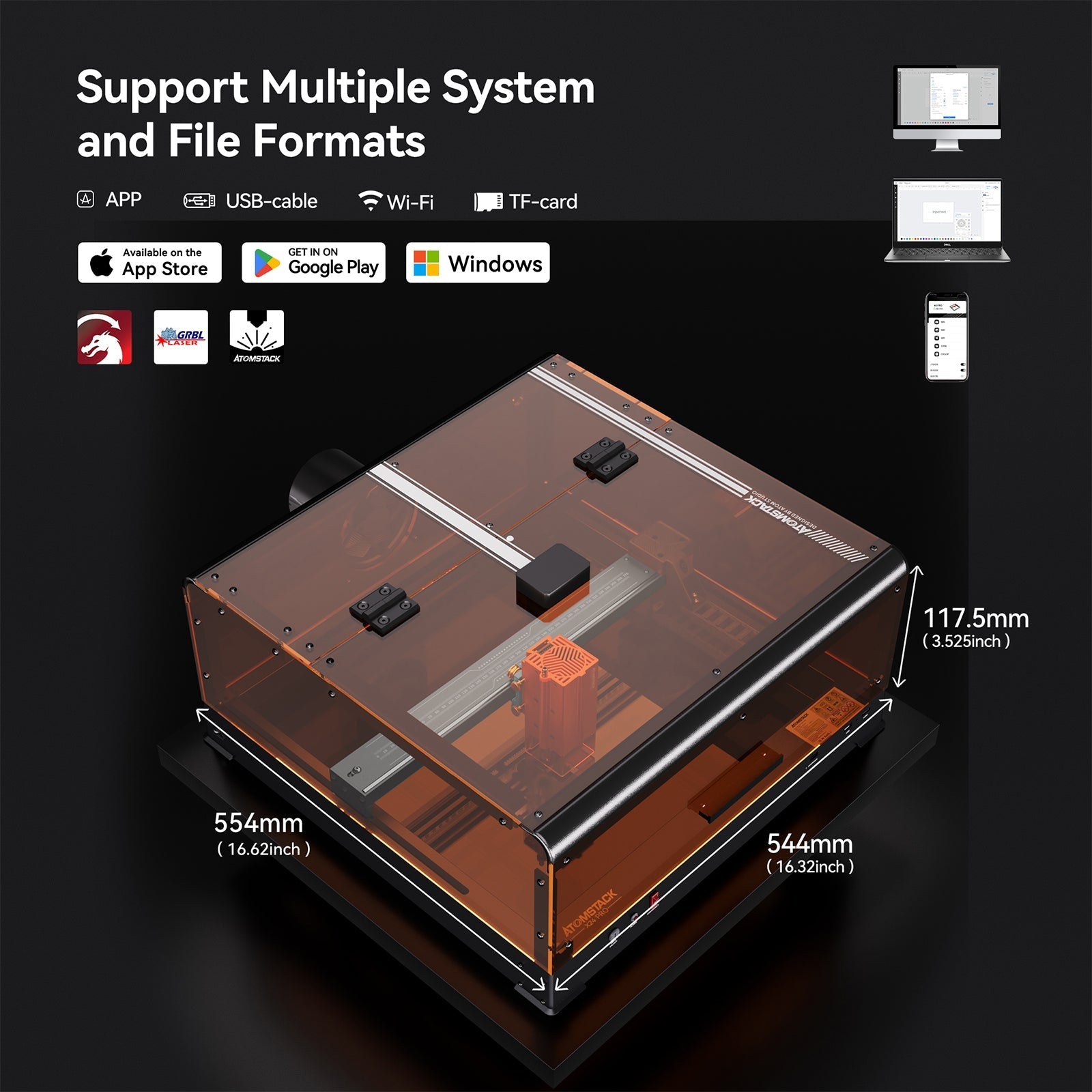

Engraving Size: 365*305mm
Overall Machine Power: 120W
Laser Output Optical Power: 20-24W
Laser Wavelength: 455¡À5nm
Laser Spot: 0.06*0.06 mm
Focusing Mode: fixed focus laser, no focus

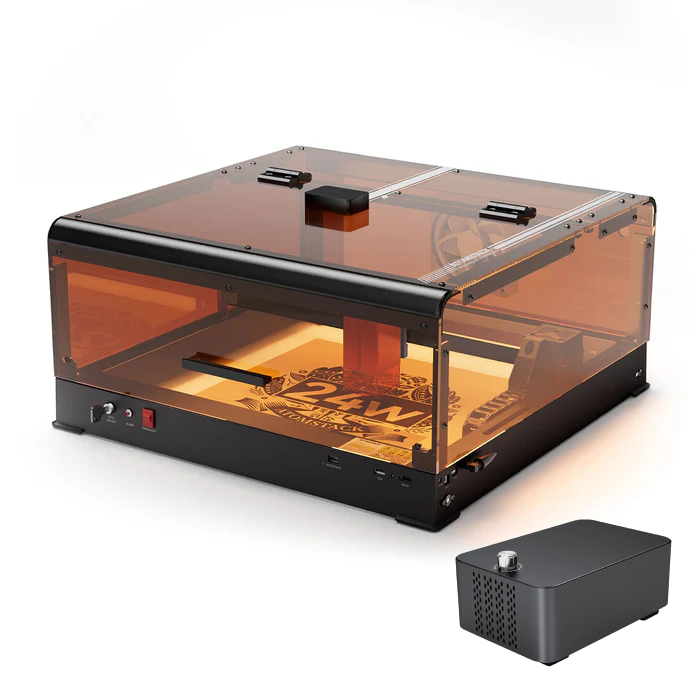

Laser Protective Cover: Laser shield: There is a protective shield on the laser that protects the user's eyes, eliminating the need to wear additional eye protection. It also prevents pets from grabbing the laser spot.

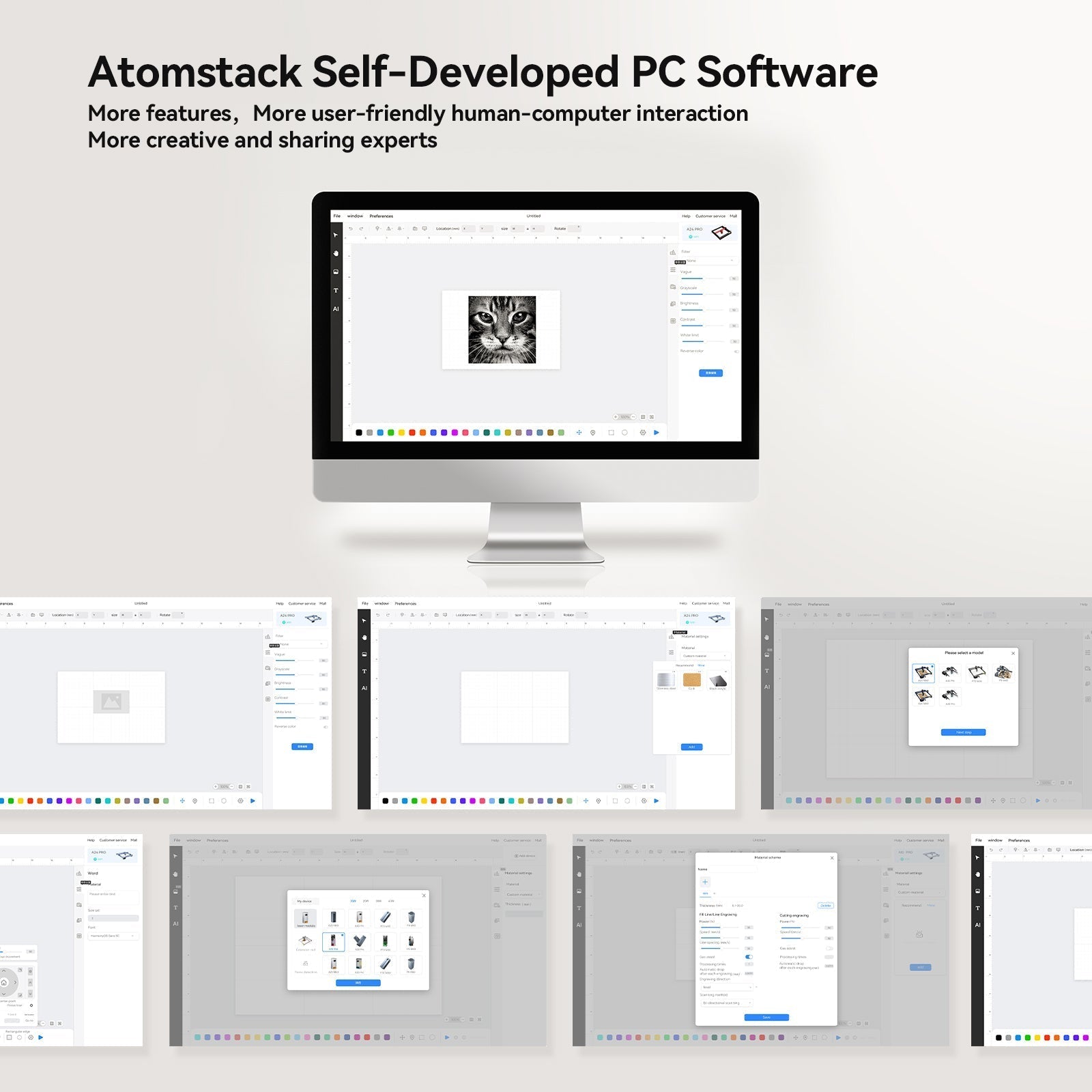

Operating Software: LaserGRBL, LightBurn, Supports Windows/Linux/macOS
Supported File Formats: JPG, JPEG,?SVG,?PNG,?BMP, PDF, G-Code, DXF.
Data Transfer Method: USB, APP
Power Supply: International standard power
Input: 100-240V AC, 50/60HZ
Output: 24V 5A
Certification: CE FCC RoHS FDA PSE
