Big Upgrade, Small Budget
● Upgraded 24W laser output for better cutting
● Increased precision, durability, and load capacity
● High productivity at 500mm/s
● Auto cross-positioning system, auto-focus and resume engraving after a power outage
● Earn 499 points: Save $10 on your next purchase
EU plug ships to Europe only.
US plug ships to the US only.
A20 Pro V2 Standalone
45900
64998
Spare 29%
A20 Pro V2+F3
55900
75997
Spare 26%
A20 Pro V2+Area extension kit+F60
62900
95996
Spare 34%
A20 Pro V2+F3+L2+AC1
74900
98995
Spare 24%
A20 Pro V2+F3+Area extension kit+L2+F60+AC1
93900
129993
Spare 28%
A20 Pro V2 Standalone
45900
64998
Spare 29%
A20 Pro V2+F3
55900
75997
Spare 26%
A20 Pro V2+Area extension kit+F60
62900
95996
Spare 34%
A20 Pro V2+F3+L2+AC1
74900
98995
Spare 24%
A20 Pro V2+F3+Area extension kit+L2+F60+AC1
93900
129993
Spare 28%
ENHANCED PRECISION, ACCELERATED SPEED
1.【New Upgraded Series】AtomStack Ace Pro V2 includes three machines with different laser output powers (A10 Pro V2 12W/A20 Pro V2 24W/A40 Pro V2 48W).
2.【A20 Pro V2】A20 Pro V2 provides excellent cutting capabilities. With a cutting capacity of up to 12mm for wood and 10mm for black acrylic in ONE PASS, it rivals industrial CNC machines. Perfect for woodworking, intricate designs, and jewelry crafting, this machine offers solid cutting performance.

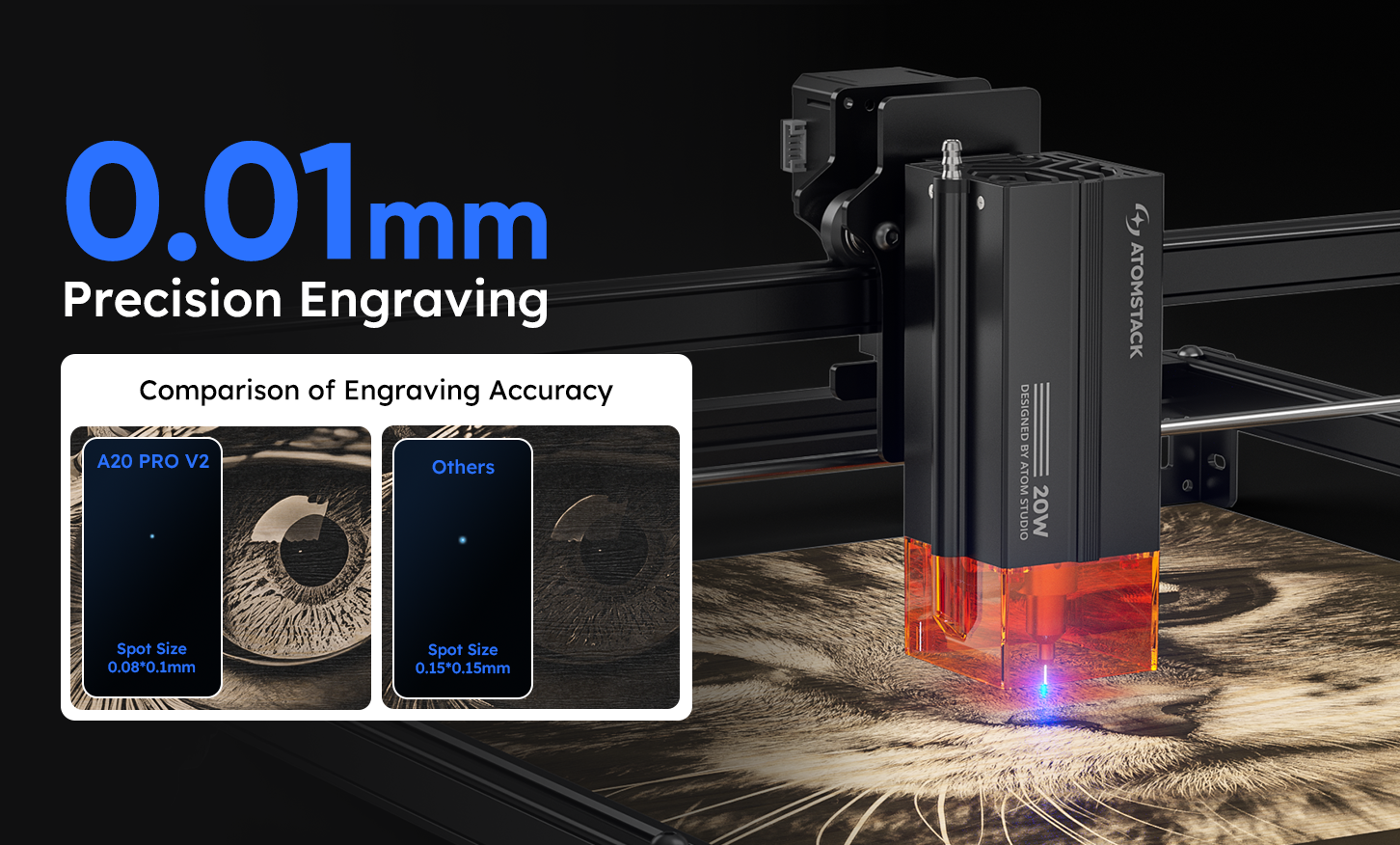

3.【Precision and Efficiency in Engraving and Cutting】Equipped with compressed spot technology (A10 Pro V2: 0.06*0.08mm, A20 Pro V2: 0.08*0.10mm), the Ace Pro V2 ensures pristine cuts and engravings. Operating at a maximum speed of 30000mm/min, it guarantees swift and efficient laser processing. Ideal for small business owners seeking fast batch engraving and cutting, personalized gifts, and customized items.
4.【Expanded Engraving Area and Enhanced Features】Featuring a generous engraving area of 400*400mm and built-in cross positioning, the Ace Pro V2 offers enhanced precision and versatility. Additional highlights include auxiliary directional assistance, ensuring even greater accuracy and control over your projects.

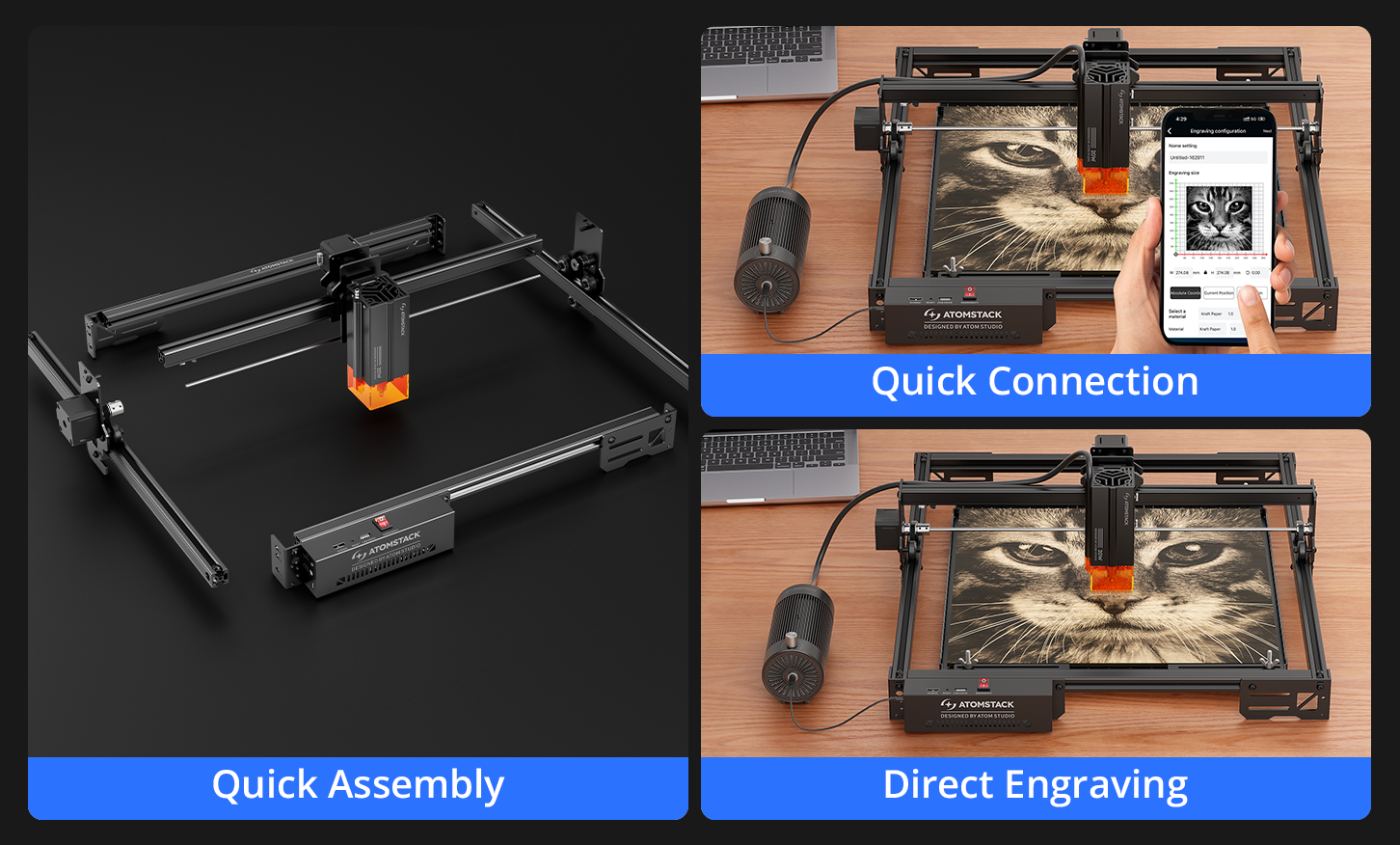

5.【High-Quality Software for Beginners】The Ace Pro V2 comes equipped with advanced features such as a blue light semiconductor laser, precise control algorithm, and durable slide rails. It can connect to Windows through USB by downloading the user-friendly software Lightburn or LaserGRBL, while you can download the app directly to your phone.
6.【Unleash Your Creativity】With the Ace Pro V2 laser engraver and cutter, unleash your creative potential and accelerate your small business or side hustle. Capable of working with a wide range of materials including wood, acrylic, metal, glass, leather, and fabric, it enables the creation of diverse projects. Whether crafting custom desk organizers, holiday cards, or metal business cards, this machine empowers limitless DIY possibilities.

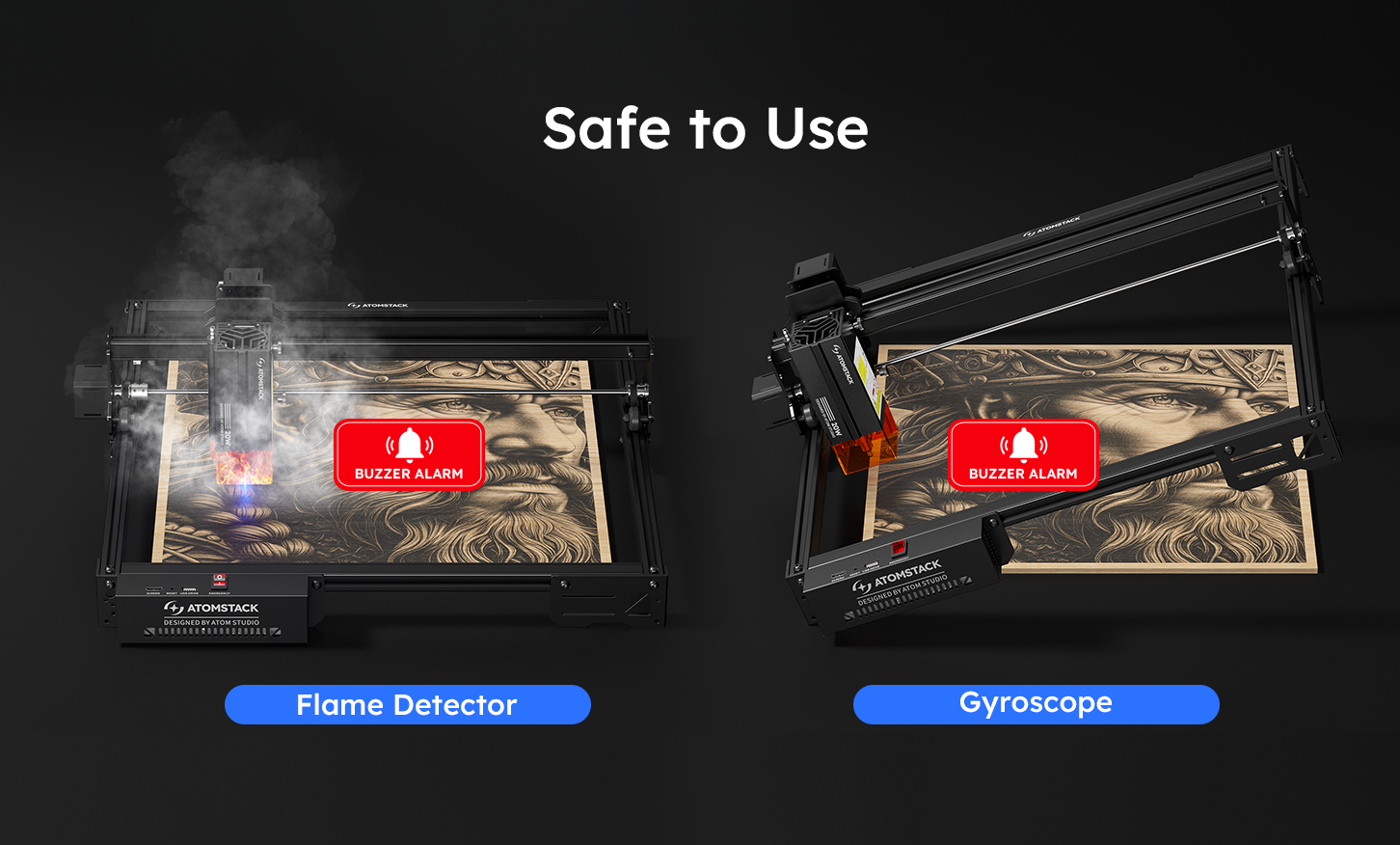

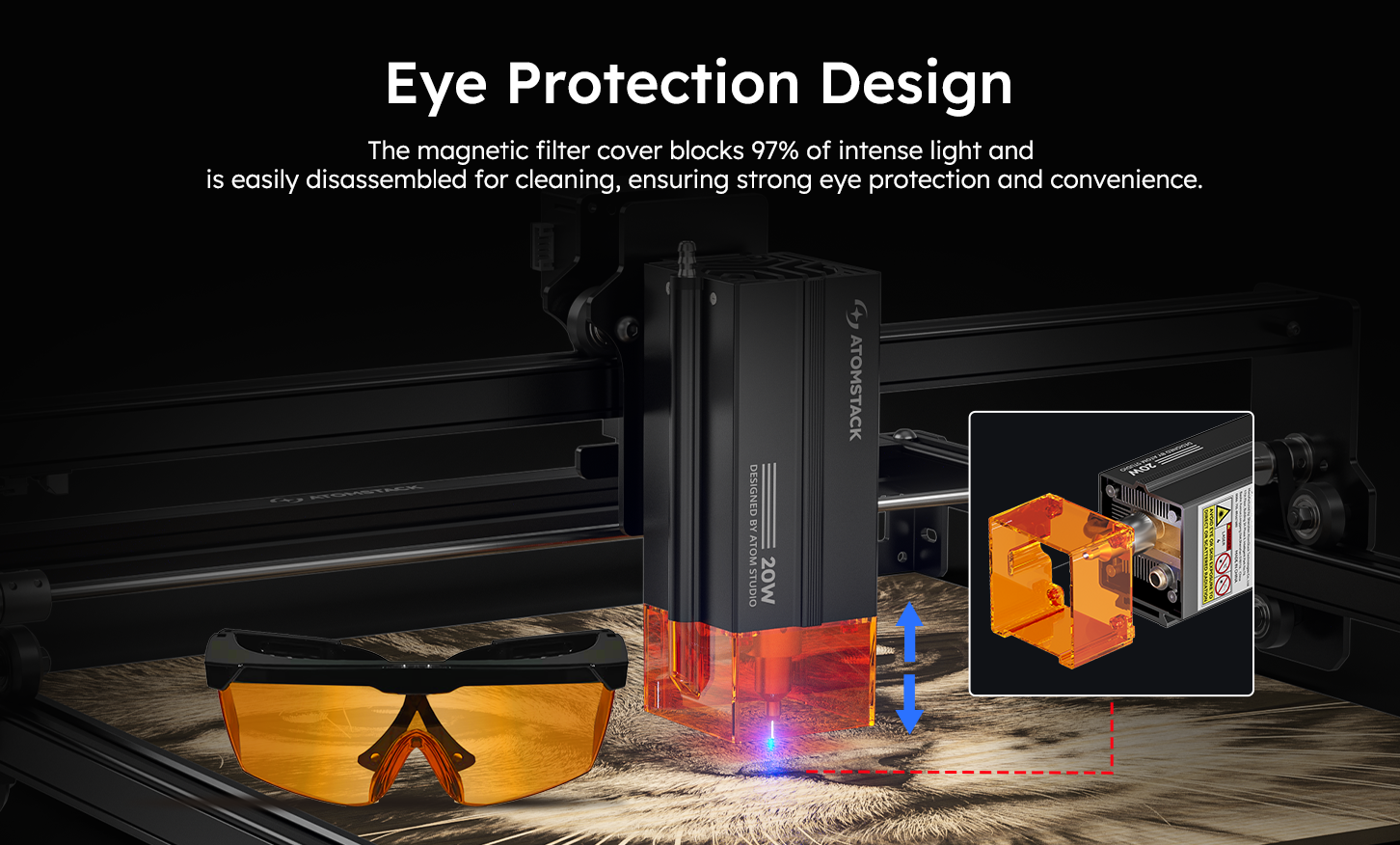

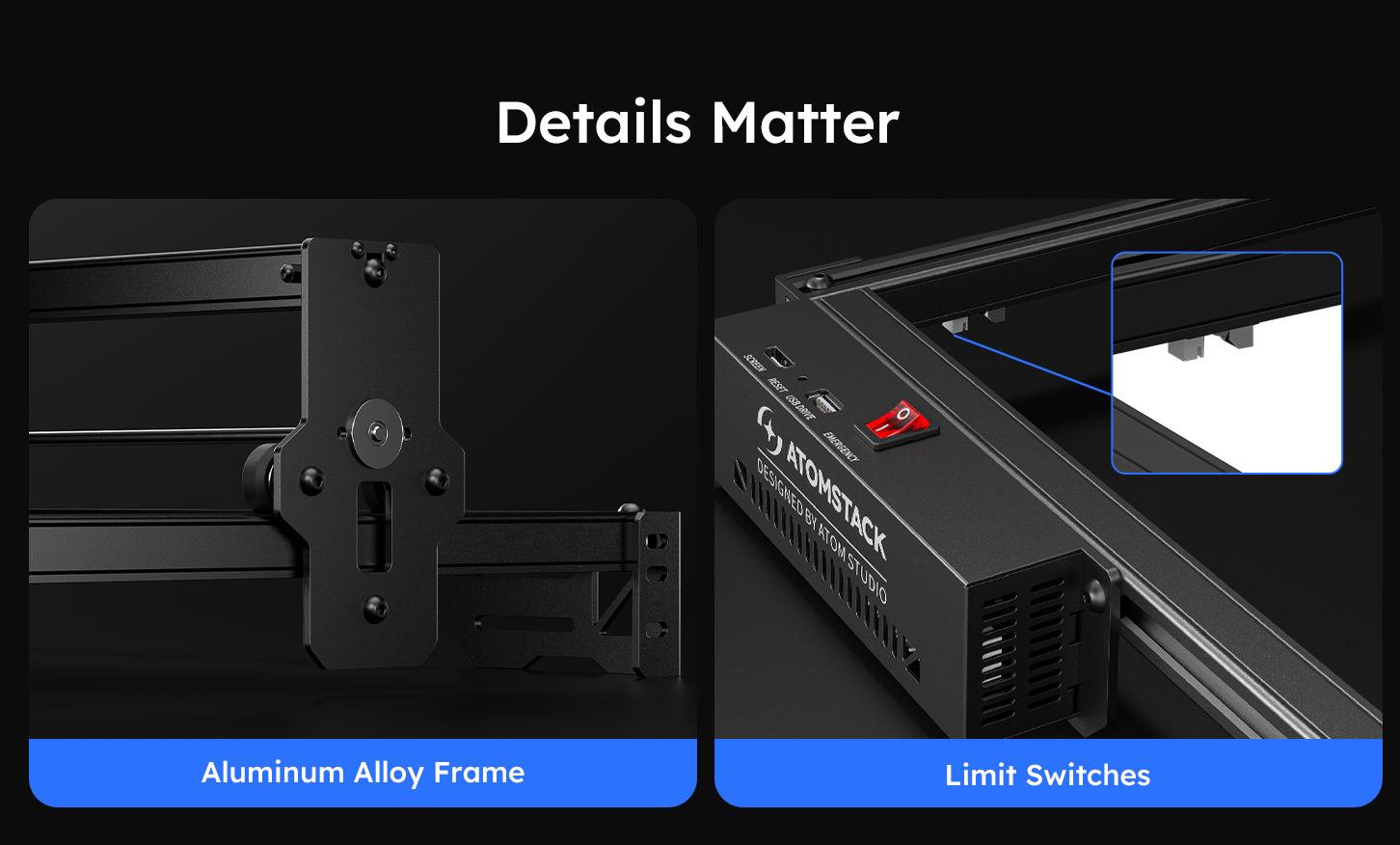

7.【Safety Protection & Assurance】AtomStack cutter and engraver machine includes a safety lock, position movement detection, limit switches, and eye protection, ensuring your safety during usage. The safety lock keeps your machine under control, and position movement detection means that if the machine tilts at an angle of 15-20 degrees, it will sound an alarm and stop working. The 2-way X&Y axis limit switches prevent equipment from colliding with edges. Eye protection shields and glasses are designed to protect the user's eyes from harsh beams.

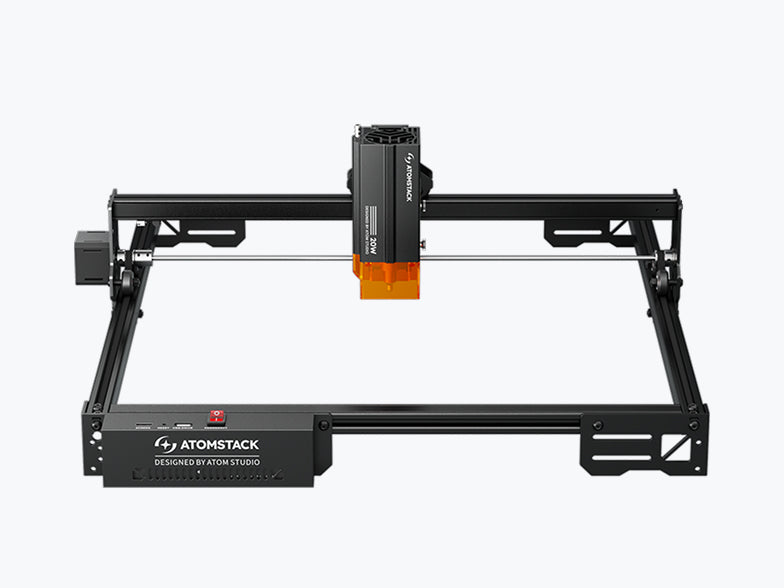

Product Model: | ATOMSTACK A20 Pro V2 |
Device Size: | 574.75 x 640 x 166.6mm (22.63" x 25.2" x 6.56") |
Engraving Size: | 400 x 400mm (15.75" x 15.75") |
Working Principle: | Engraving / Cutting |
Engraving Materials: | Wood, bamboo, cardboard, plastic, leather, PCB board, aluminum oxide, non-reflective electroplated and painted metal, 304 mirror stainless steel, dark glass, ceramics, cotton, slate |
Cutting Materials: | Thin steel plate, cardboard, non-woven fabric, wood, black acrylic, more thin plastic sheets, sponge |
Input Power: | 120W |
Output Power: | 20-24W |
Maximum Speed: | 30000mm/min |
Laser Wavelength: | 455±5nm |
Engraving Accuracy: | 0.01mm |
Spot Size: | 0.08*0.10mm |
Joint Structure: | Guide Rails |
Connection Method: | USB、Wi-Fi 2.4G |
Supported Devices & Operating Systems: | Mobile: Android, iOS |
Computer: Windows, mac OS | |

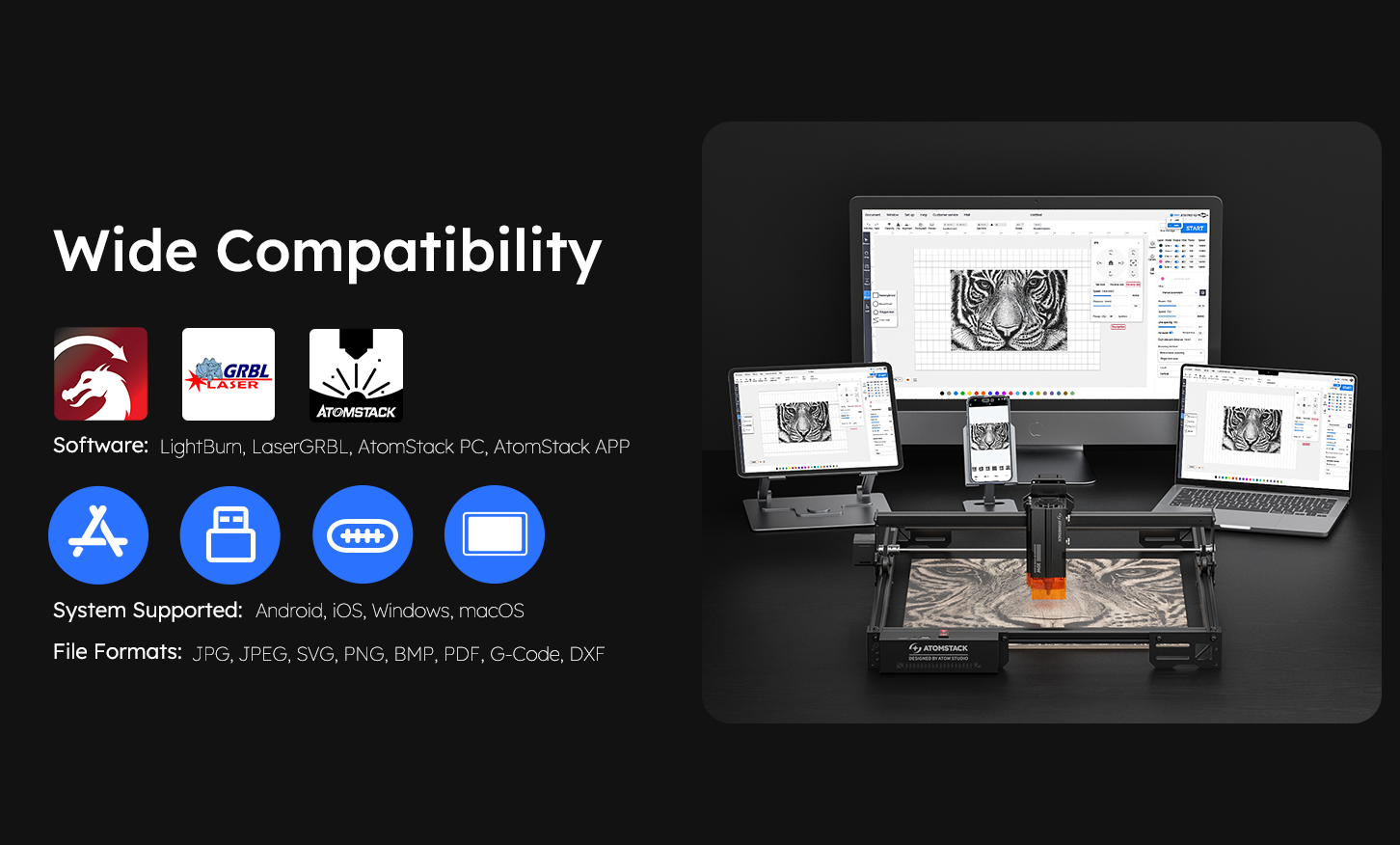

Software: | LightBurn、LaserGRBL、AtomStack PC、AtomStack APP |
Driver Update: | AtomStack APP or USB drive |
Supported Formats: | JPG, JPEG, SVG, PNG, BMP, PDF, G-Code, DXF |
Focus Adjustment Method: | Automatic focus + Manual focus The automatic focus requires support from the L2 Smart Z-Axis Module |
Tip-over Alarm: | Tipping angle>15°, buzzer prompts |
Cross Positioning: | Yes |
Flame detection: | Yes, it requires support from the L2 Smart Z-Axis Module |

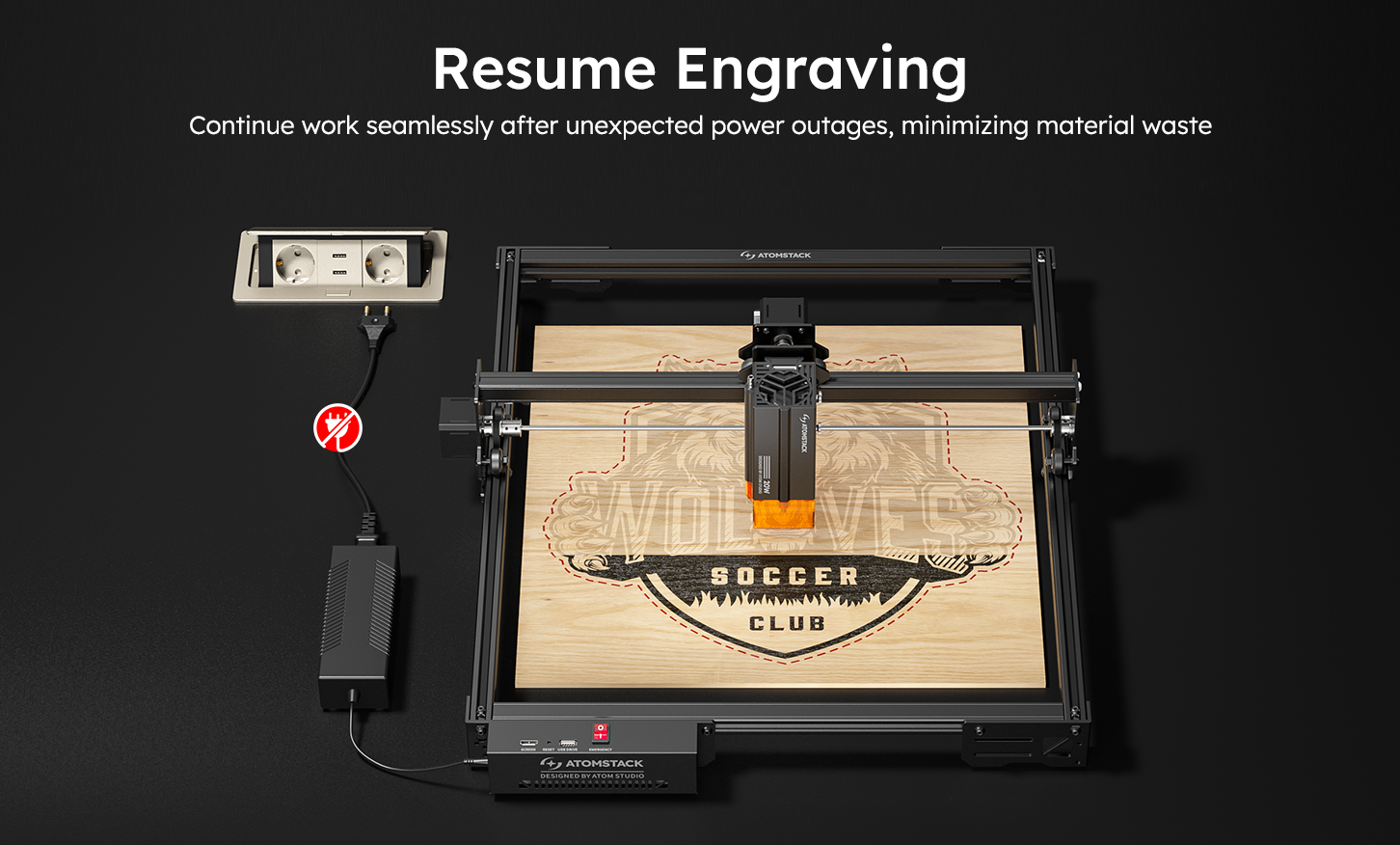

Resume Engraving: | Yes |
Quality Certification: | CE,FCC, RoHS ,FDA ,PSE |
