iKier K70 Max Laser Engraver
K70 Max — Where Precision Meets Performance, Elevating Your Creativity & Productivity
Features:

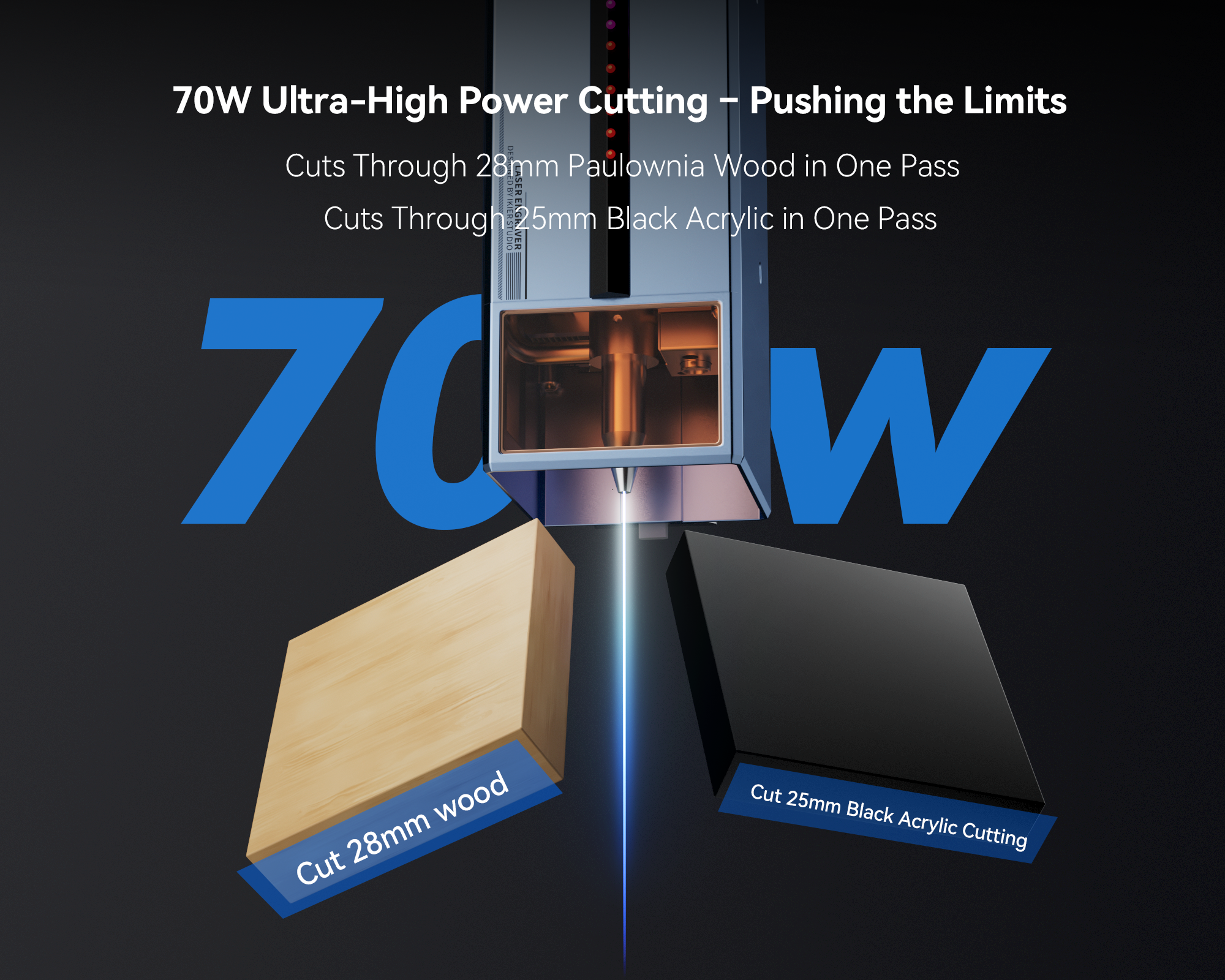

1. Powerful Cutting, Effortless Piercing: Cuts through 28mm paulownia and 25mm acrylic in one pass under 70W mode.
2. Fine Engraving, Razor-Sharp Details: Ultra-fine laser spot at 35W mode delivers sharp, precise engraving.
3. Auto Z-Axis, Cross-Laser Focusing: One-touch electric focusing with red cross-laser; no manual adjustment needed for batch jobs.
4. Deep Focus, Smoother Cuts: Auto Sinking Cutting reduces edge burn and polishing steps with long focal depth.
5. Dual-Axis Rails, Steady Performance: Silent, stable, and durable linear guides support long-time heavy-duty operation.

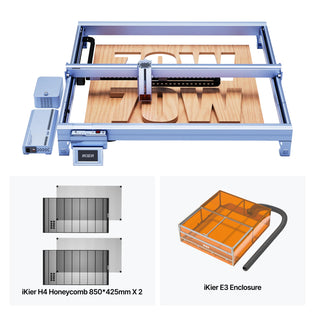

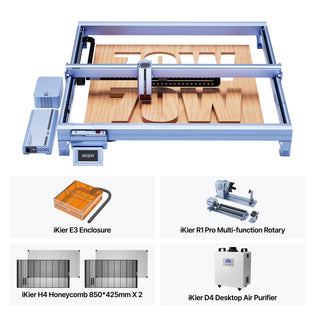

6. Flexible Add-ons, Expandable Setup: Compatible with roller, rotary, and riser kits — ideal for cylinders and irregular objects.
7. Cross-Platform, Multi-Connection: Works with Windows, macOS, Android, and iOS; supports USB, Wi‑Fi, and TF card.
8. Smart Safety, Full Protection: Equipped with child lock, flame sensor, and tilt shutdown for layered safety.
Specifications:
| K70 MAX Laser Engraver Specifications | |
|---|---|
| Brand | iKier |
| Model | K70 Max |

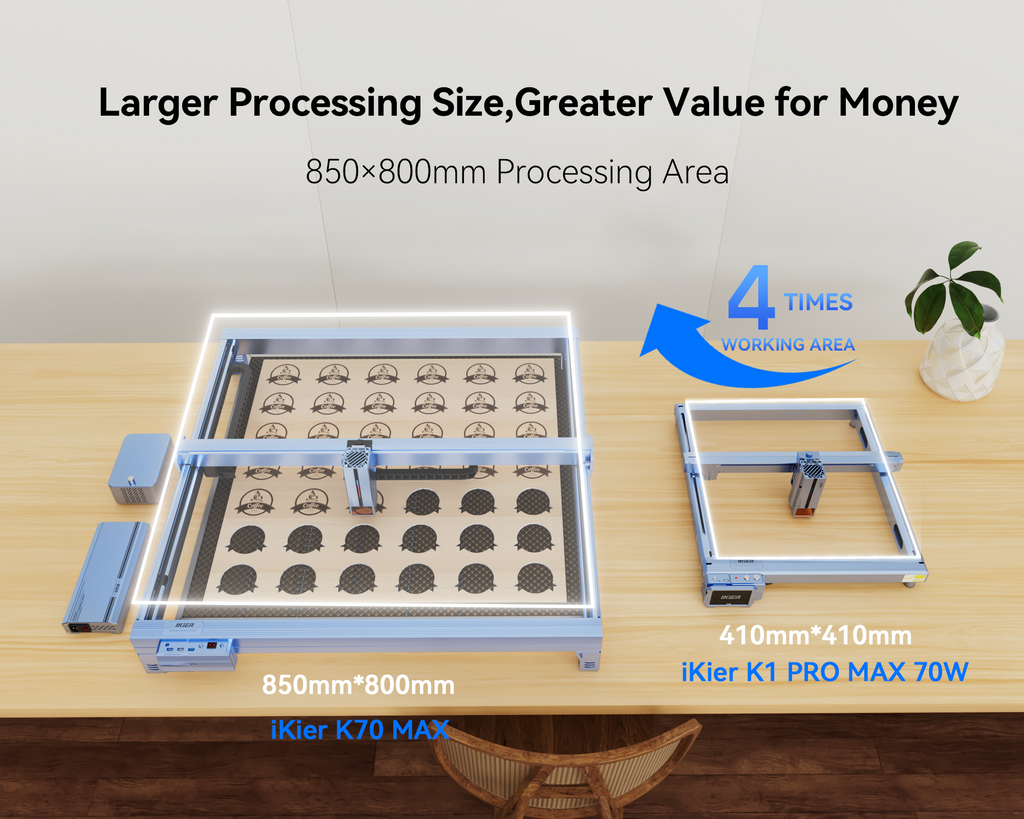

| Engraving Size | 850mm × 800mm |
| Machine Size | 1125mm × 1090mm |
| Total Power Consumption | 360W |
| Laser Power | 70-77W, 35-39W |
| Max Moving Speed | 400mm/s |
| Spot Size | 0.15mm×0.2mm (70W) 0.1mm×0.15mm (35W) |
| Engraving Precision | 0.01mm |
| Laser Wavelength | 455±5nm |
| Focusing Method | Auto Focus or Manual Focus, with Added Red Light Positioning |
| Motorized Z-Axis | Auto Sinking During Cutting |
| Supported OS | Windows, macOS, Android, iOS |
| Control Software | LightBurn, LaserGRBL |
| Supported File Types | png, jpeg, jpg, webp, bmp, gif, dxf, svg |
| Data Transfer | USB, Wi-Fi |
| Mainboard | 32-bit control board with Wi-Fi control port |
| Screen Control | 4.3-inch display |
| Limit Switches | 5 switches (2 for X-axis, 2 for Y-axis, 1 for Z-axis) |
| Air Assist Flow Rate | 0-60 L/min, stepless adjustable |
| Certifications | CE, FCC, RoHS, FDA |
| Power Supply | 100–240V AC → 36V 9.7A |
| Recommended Engraving Materials | Wood, Bamboo, Cardboard, Plastic, Leather, PCB Boards, Oxidized Aluminum, Non-reflective Plated & Painted Metals, 304 Mirror Stainless Steel, Glass, Ceramic, Slate |
| Recommended Cutting Materials | Cardboard, Non-woven Fabric, Wood, Non-transparent Acrylic, Some Thin Plastic Sheets |
🚀 Why Choose iKier K70 Max?
Smarter Power • Stronger Frame • Safer Operation
| Machine | 🟦 iKier K70 MAX | *** S70 MAX |
|---|---|---|
| Laser Power | 70W for Cutting & 35W for Engraving (One-click Switching) | 70W Fixed |
| Frame | All-Metal Large Frame — Extra Stability | Standard Frame |
| Working Area | 850 × 800 mm | 830 × 800 mm |
| Working Speed | 400 mm/s (Guaranteed Accuracy at High Speed) | 600 mm/s |
| Spot Size | ✅ 0.1 × 0.15 mm | 0.15 × 0.12 mm |
| Air Assist Flow | ✅ 0–60 L/min Adjustable | ❌ 50 L/min (Fixed) |
| Dual-axis Linear Guide | ✅ Yes | ❌ No |
| Focusing Method | Auto / Manual + Red Light Positioning | Auto + Manual |
| Motorized Z-Axis | ✅ Auto-Sinking During Cutting | ❌ No |

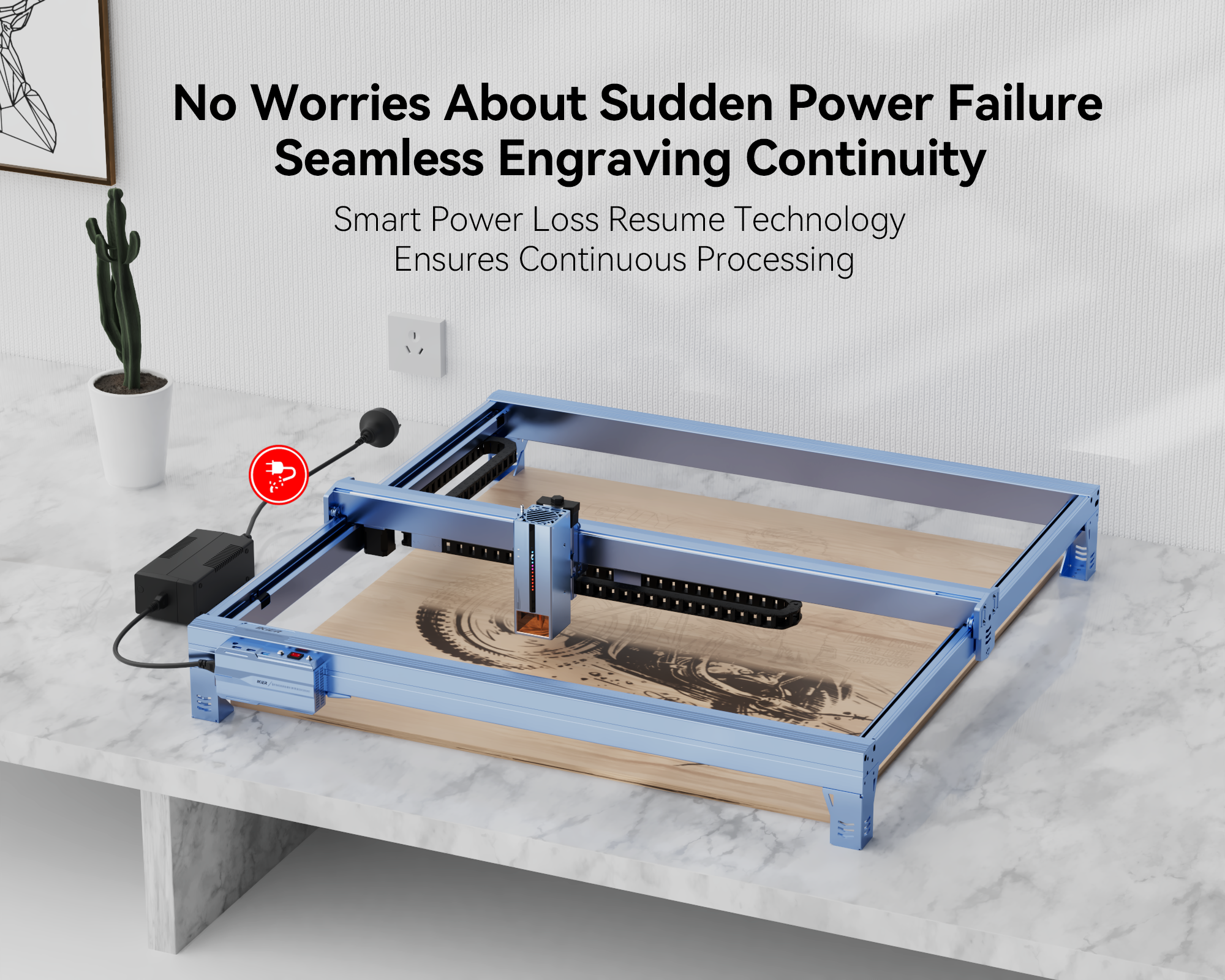

| Power Loss Resume Technology | ✅ Yes | ❌ No |
| AI Image Generation | ✅ Yes | ❌ No |
| Accessory Recognition | ✅ Yes | ❌ No |
Safety Notes:
1. Always install the laser protective cover properly and wear safety goggles before operation.
2. Do not look directly at or touch the laser beam to avoid burns.
3. Children under 14 are prohibited from using this device. Those aged 14 and above must operate it under adult supervision.
4. Avoid engraving highly reflective or mirror-like surfaces to prevent laser reflection injuries.
5. Do not bump or compress the machine; maintain structural stability during use.
