- Potencia extrema, profundidad inigualable: Con una potencia láser de hasta 77 W, la A70 Max corta madera de 25 a 28 mm en una sola pasada, manejando sin esfuerzo los materiales más resistentes.
- Espacio de trabajo masivo, precisión fina: Un área de 850×800 mm admite proyectos grandes y trabajos por lotes, manteniendo al mismo tiempo una precisión de 0,01 mm para un detalle perfecto.
- Compatibilidad de software fluida: Totalmente compatible con LightBurn, AtomStack Studio y LaserGRBL para un flujo de trabajo creativo eficiente y fluido.
- Impulsores del flujo de trabajo inteligente: Funciones como modos de potencia ajustables, enfoque automático con una sola tecla y alineación asistida por infrarrojos simplifican la configuración y garantizan la precisión en todo momento.

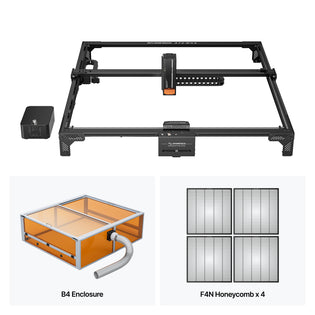

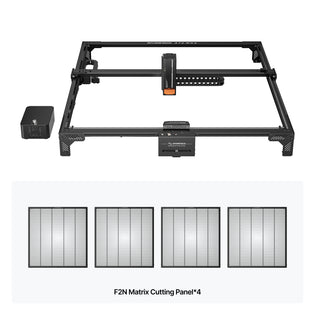

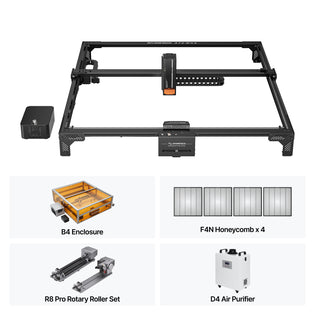

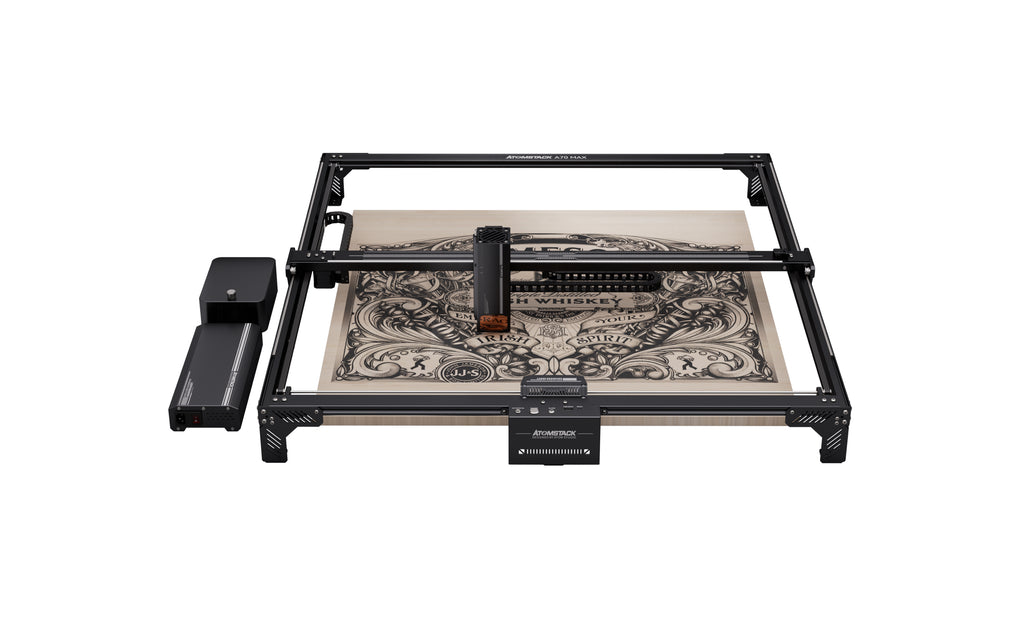

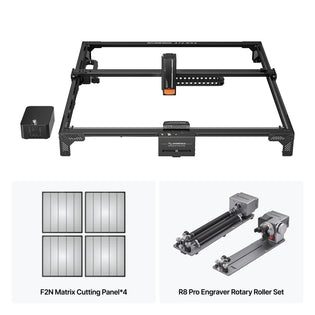

Cortadora láser AtomStack A70 Max
€1.659,00
Ir directamente a la información del producto
Frequently Bought Together
Lente de repuesto para lente de ventana Atomstack para grabador láser A6/12/24/48 Pro/Ultra A10/A20/A40 PRO V2/Max A70 PRO/ A70 MAX
€13,95
Software Lightburn: clave de licencia Gcode, para la mayoría de las máquinas grabadoras láser de diodo del mercado
€99,00
Juego de rodillos giratorios AtomStack R8 Pro
€257,95
€343,95
Caja AtomStack B4 (para A70 Max/Glacier)
€600,00
The World's First 70W Desktop Laser Cutter
Cut thicker, faster
World's First
70w diode laser
Laser modules
switchable
switchable
Enlarged
working area
working area
One-click,
auto-focus
auto-focus
Intelligent
air assist
air assist
Offline work
Working speed
Compatible with
software of
all levels
software of
all levels
The second-generation CoS package laser delivers greater accuracy
We engaged in innovative techniques by adopting second-generation CoS packaged laser to generate a smaller light spot size, resulting in an intense and precisely focused laser beam.
Impressive cutting capabilities
28mm
Paulownia cutting
in one-pass
25mm
Blackacrylic cutting
in one-pass
Exceptionally large working area
working fast with consistent output
Interchangeable laser modules
35W/70W switchable
35W
70W
Superior cutting and engraving performance
Longer light waist for
better cutting ability
Engraving Accuracy: 0.01mm
0.08mm*0.12mm compressed laser spot (35W)
Enhanced heat dissipation and stability
We understand that 70W poses a considerable challenge for a desktop-class engraver,
so we've dedicated additional effort to improving both heat dissipation and stability.
The second-generation CoS packaged laser module, with larger cooling fins and a fan, delivers improved accuracy and a longer laser lifespan.
Lower center of gravity design
Dual-axsis drive linear guide for silent, steady, precise control
Lockable frame for enhanced stability
One-button operation streamlines the workflow
Dual-mode focus:
automatic focus and manual focus
visible red light cross positioning
User-friendly
1
Easy to use and setup
2
Compatible with software of all levels
3
Auto-resume feature after power interruption
4
Offline work
Your safety is our priority
Cost-effective, good choice for business
A tool that suits your business is crucial.
To cut a 28mm-thick paulownia board in one pass, br you need a 200W CO2 laser, which means
larger space requirements, increased weight, and higher costs.
A70 max
Others
A70 max
Laser type :
Diode Laser
Dimension:
1056mm*1128mm*230mm
Weight :
19kg
Cost :
reasonable price
Lifespan :
20000H
Others
Laser type :
CO2 Laser
Dimension :
1800mm*1300mm*1200mm
Weight :
300kg
Cost :
expensive
Lifespan :
2000H
Equipped with air assist for flawless results
Powerful airflow cools the object surface during cutting or engraving, preventing excessive burning and resulting in cleaner, smoother edges.
Cost-effective, good choice for business
A70max offers potential for both financial gain and creative exploration within these programs. We're sure you'll come up with even more creative and profitable ideas.
Product Specifications
Power Supply
Input 100-240V AC, 50/60HZ, output 12V 5A
Laser Module Output Power
70-77W, 35-39W
Laser Wavelength
455 ± 5 nm
Laser Spot Size
0.12*0.18mm (70W) / 0.08mm*0.12mm (35W)
Engraving Accuracy
0.01mm
Spot Size
0.12*0.18mm (70W) / 0.08mm*0.12mm (35W)
Max. Speed
400mm/s (24000mm/min)
Focus Adjustment Method
Automatic focus + manual focus
Screen Control
4.3 inches
Air Flow Rate
0-60 L/min infinitely adjustable
Engraving Size
850 x 800mm (33.46" x 31.5")
Operating Systems
Windows / Linux / macOS/IOS, Android
Control Software
850 x 800mm (33.46" x 31.5")
Control Software
AtomStack Studio, LaserGRBL, LightBurn
Connection Support
Type-C, mobile WiFi, touch screen
Certification
CE, FCC, RoHS, FDA, PSE
What's in the box?
- 1. Upper support bar component
- 2. Bottom Component
- 3. Y-axis left slide rail component
- 4. Y-axis right slide rail component
- 5. Lower support bar component
- 6. Air pump
- 7. Power Adapter
- 8. Laser
- 9. Display
- 10. Fixed focus film
- 11. Glasses
- 12. Power cable
