Laser Fume Extraction 101: Ventilation, Air Purifiers, and Indoor Safety Rules for Home Shops

Key Takeaways

• Laser fumes can contain particles, ultrafine particles, VOCs, and material-dependent gases; odor alone is not a risk indicator.

• Prioritize material identification, enclosed source capture, safe outdoor exhaust when possible, and then filtration based on assessment.

• HEPA primarily captures particles; activated carbon has limited capacity. A room purifier does not replace source control.

• Size airflow using the enclosure, duct, elbows, filter resistance, and field measurements—not the fan label alone.


Laser cutting produces more than an odor. Heating can release inhalable and ultrafine particles, volatile organic compounds (VOCs), and material-dependent gases. A desktop-laser study in the CDC/NIOSH repository tested cardboard, wood, plastics, and glass and found that material, energy, and ventilation affect emissions; ventilation controls substantially reduced pollutants.

At AtomStack, we recommend this order for home shops: identify materials, enclose and capture at the source, exhaust safely outdoors where possible, and use filtration as a supplement or as an assessed alternative when outdoor exhaust is impossible. The EPA Guide to Air Cleaners in the Home also puts source control and clean outdoor-air ventilation first; filtration cannot remove every pollutant.

Four Basic Concepts

VOCs:organic compounds that readily enter the air; materials and adhesives can emit different compounds.

Particulate matter: solid particles or droplets in fumes; size affects behavior and filtration.

HEPA:a high-efficiency particle-filter category; it does not remove every gas or odor.

Activated carbon/adsorbent: captures some gases, has finite capacity, and must be replaced after breakthrough. No odor does not prove all hazards are removed.

Materials and Primary Risks

Material	Possible emissions/issues	Before processing	Home-shop conclusion
Natural wood/plywood	Smoke, particles, VOCs; unknown glue	Check species, adhesive, SDS	Enclosure + source exhaust; continuous supervision
MDF	Heavy smoke, adhesive emissions	Verify manufacturer SDS	Strong source capture; no unknown sheet
Paper/cardboard	Smoke/particles; hidden smoldering in layers	Check coatings and flame treatment	Fire prevention first; inspect after cutting
Acrylic PMMA	Vapor, particles, strong odor, fire risk	Confirm PMMA and color	Effective exhaust; no unknown plastic
Natural vegetable-tanned leather	Smoke, odor, particles	Confirm tanning and finish	Strong exhaust; verify synthetic leather carefully
PVC/vinyl	Chlorine-containing hazardous gases and corrosion	Do not process	Never place in a laser
ABS/unknown plastic	Hazardous gas, melting, fire	Even with SDS, require machine approval	Not recommended in a home setting
Coated metal	Unknown coating decomposition, reflection	Check base and coating SDS	Only within the manual’s allowed range

The University of Illinois laser-cutter safety guide identifies possible chlorine gas from PVC/vinyl and requires dedicated ventilation meeting manufacturer specifications. “It does not smell harsh” is not a safety test.

Outdoor Exhaust or Recirculating Filtration?

Solution	Advantage	Limitation	Best use

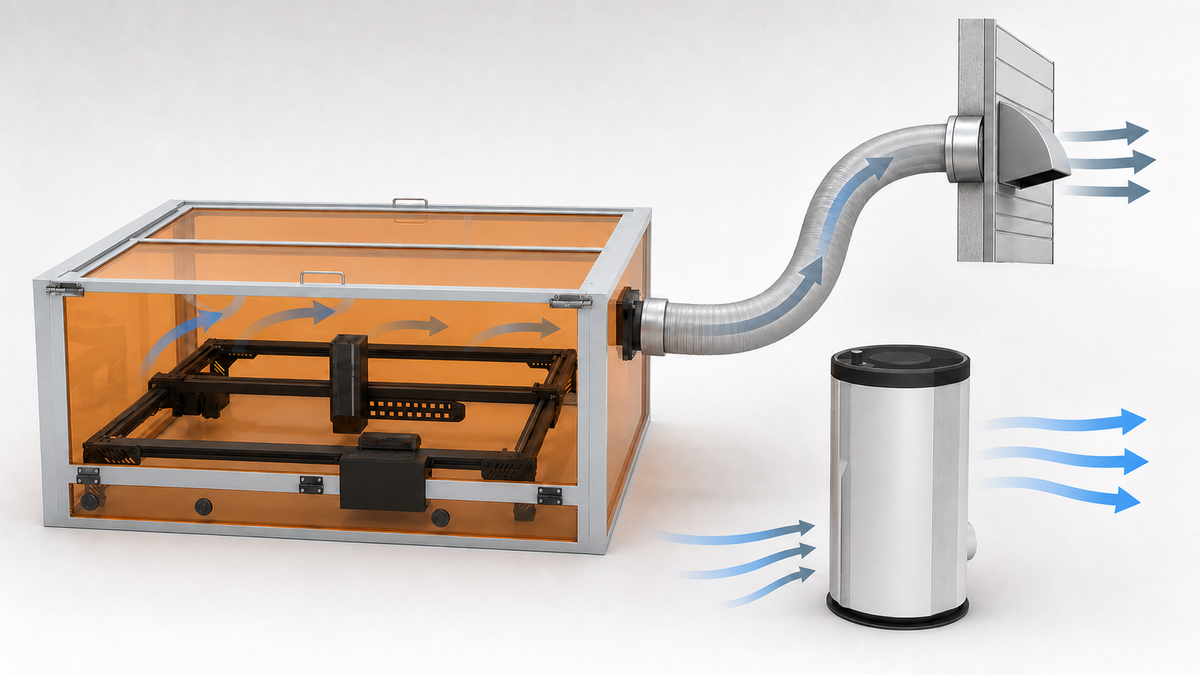

Enclosure + ducted outdoor exhaust	Removes pollutants from indoors; direct source control	Requires compliant outlet, make-up air, backdraft prevention, duct design	Preferred, especially wood/MDF/acrylic
Enclosure + multistage particle/gas filtration and recirculation	Flexible without a wall penetration	Finite filters; cannot guarantee all gases; replacement monitoring	Assessed, controlled material range
Room air purifier	Can lower some background particles	Not source capture; contaminants enter breathing zone first	Supplement only
Open window/ordinary fan	Low cost	Uncontrolled flow can cross occupants or return	Not primary control

For A70 Max or Glacier work areas, the AtomStack B4 Enclosure includes an exhaust port and hose for source capture. The D3 Air Purifier can work with P1, P1 Dual, Kraft, and some enclosures. Choose outdoor exhaust or filtration from actual material, ducting, and work duration and maintain a filter record.

Calculating Airflow and Air Changes

Calculate enclosure volume: Volume = length × width × height. If the target is N enclosure air changes per minute:

Q ideal = enclosure volume × N.

Real systems include duct diameter and length, elbows, compressed hose, filter resistance, make-up air, and the fan curve:

Q design = Q ideal ÷ (1 − estimated loss rate), where the loss rate must come from a fan curve or field measurement—not a guessed percentage.

Acceptance is more reliable when duct velocity or actual volume is measured with the enclosure closed, machine running, and filters in real condition, followed by a smoke-flow test. Place the outlet away from doors, windows, fresh-air intakes, neighbors, and recirculation points, in compliance with local building, environmental, and fire rules.

An Actionable Installation Process

1. List every material and SDS and create allowed/prohibited lists; do not process unknowns.

2. Choose a smoke-tight, wavelength-compatible enclosure sized to the machine and preserve required safety interlocks.

3. Prefer short, straight, smooth ducts; minimize sharp elbows and crushed hose; select a safe outdoor outlet and make-up air.

4. Check the fan curve for clean and loaded filter conditions and measure real airflow and smoke direction.

5. Create a pre-start check for door, ducts, fan, filters, air assist, extinguisher, and smoke alarm.

6. Maintain optics, honeycomb bed, collection area, hose, seals, fan, and filters. Act when pressure drop, run time, odor change, or manufacturer criteria reach a limit.


Indoor Safety Rules

Always supervise operation and inspect cardboard layers and wood debris for smoldering after a cut. Keep solvents, boxes, and combustible waste away. Enclosures, filters, and flame detection do not replace extinguishers, training, or emergency shutdown. For eye/nose irritation, visible smoke leakage, exhaust failure, or unknown odor, stop, leave the contaminated area, and follow local emergency procedures.

Conclusion

The goal is not “no smell,” but controlled source emissions, measurable system performance, a defined material range, and documented maintenance. For continuous production, multiple users, basements/apartments, no outdoor exhaust, or composites, include occupational hygiene, fire, and local discharge requirements. Start planning a complete workstation with the B4 Enclosure and D3 Air Purifier.

FAQ

Q1: Can a room air purifier replace a laser enclosure and outdoor exhaust?

A: No. It may reduce some background particles but cannot stop emissions from entering the breathing zone or guarantee removal of every gas.

Q2: Does no odor mean the filter still works?

A: No. Adsorbent capacity, pressure drop, accumulated time, and manufacturer replacement criteria all matter.

Q3: Why can PVC not enter a laser?

A: The University of Illinois guide notes that heating PVC/vinyl may create chlorine-containing hazardous gases and corrode equipment; treat it as prohibited.
