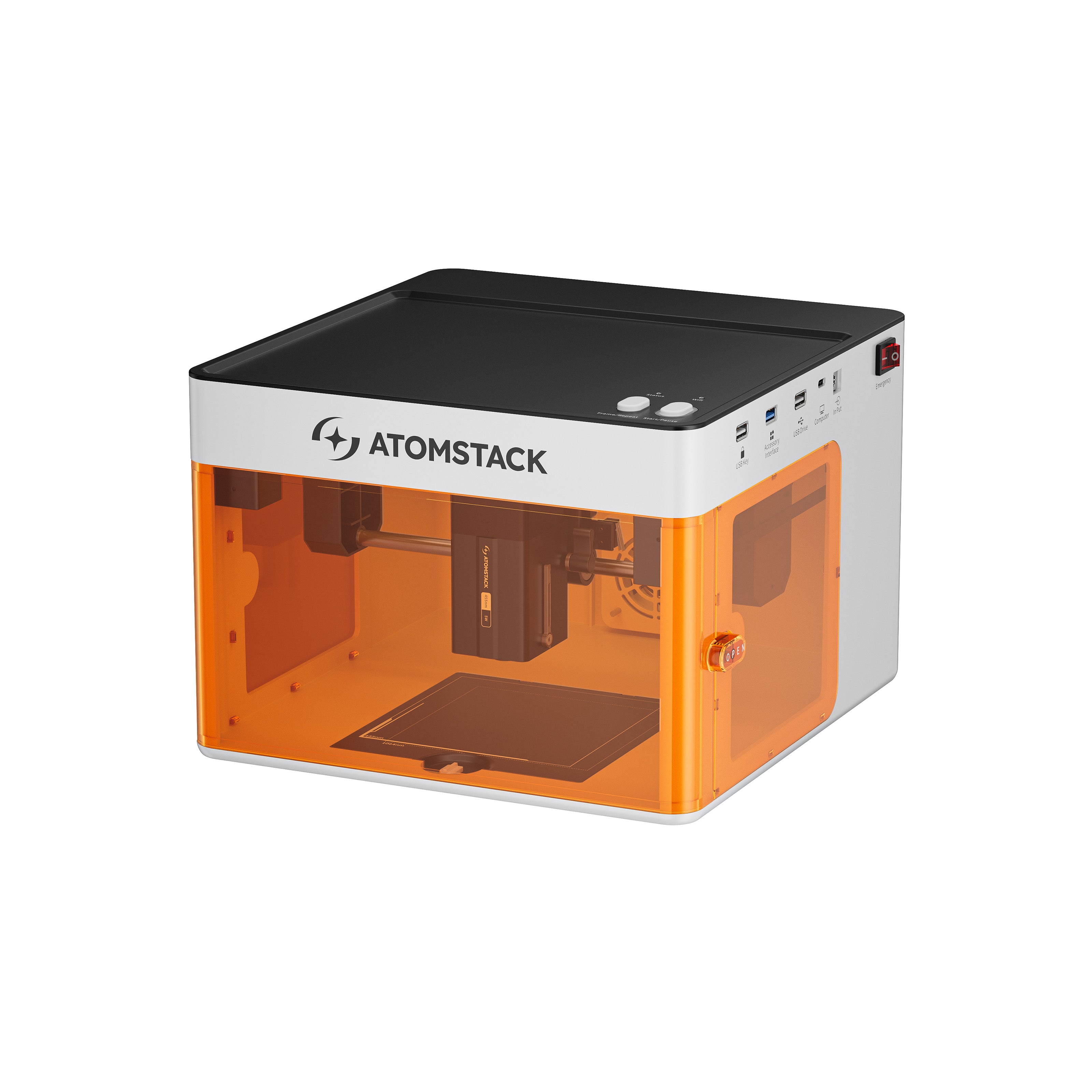

AtomStack P1 Laser Engraver

Name: AtomStack P1 Laser Engraver
Brand: AtomStack
SKU: JZLEAT16900
Price: 239.0 USD
Availability: InStock

$239.00 USD $299.00 USD

Save $60.00

【Please note】The P1 is now in stock, and the P1 Dual will ship at the end of April.

Earn 239 Points when you buy this item.

Metal Engraving: The optional 1.2W IR laser makesmetal engraving budget-friendly.

5W Diode Laser: Effortlessly engrave organic materials like wood, bamboo, paper, and cardboard.

Max Speed: 10,000mm/min for fast and efficient engraving.

Class-1 Laser Safety Certification: IEC approved with 5 safety features for ease of use and safety.

Compact & Portable: 4.33"×4.33" working area, only 3kg for easy portability.

Model:P1 (5W Diode)

Plug:US Plug

Bundle & Save: Up to 20% Off !

Variant

P1 (5W Diode) / US Plug / Machine Only

Machine Only

23900

29900

Save 20%

P1 Laser Engraver Only

P1 (5W Diode) / US Plug / Roller Bundle

Roller Bundle

32900

48800

Save 33%

P1 Laser Engraver, R6 Rotary Roller

P1 (5W Diode) / US Plug / Chuck Bundle

Chuck Bundle

35900

53800

Save 33%

P1 Laser Engraver, R8 Rotary Chuck

P1 (5W Diode) / US Plug / Pro Bundle

Pro Bundle

43900

63800

Save 31%

P1 Laser Engraver, R8 Pro Rotary Roller Set

P1 (5W Diode) / EU Plug / Machine Only

Machine Only

24900

29900

Sold out

P1 Laser Engraver Only

P1 (5W Diode) / EU Plug / Roller Bundle

Roller Bundle

34900

48800

Sold out

P1 Laser Engraver, H1 High Pedestal, R6 Rotary Roller

P1 (5W Diode) / EU Plug / Chuck Bundle

Chuck Bundle

37900

53800

Sold out

P1 Laser Engraver, H1 High Pedestal, R8 Rotary Chuck

P1 (5W Diode) / EU Plug / Pro Bundle

Pro Bundle

45900

63800

Sold out

P1 Laser Engraver, H1 High Pedestal, R8 Pro Rotary Roller Set

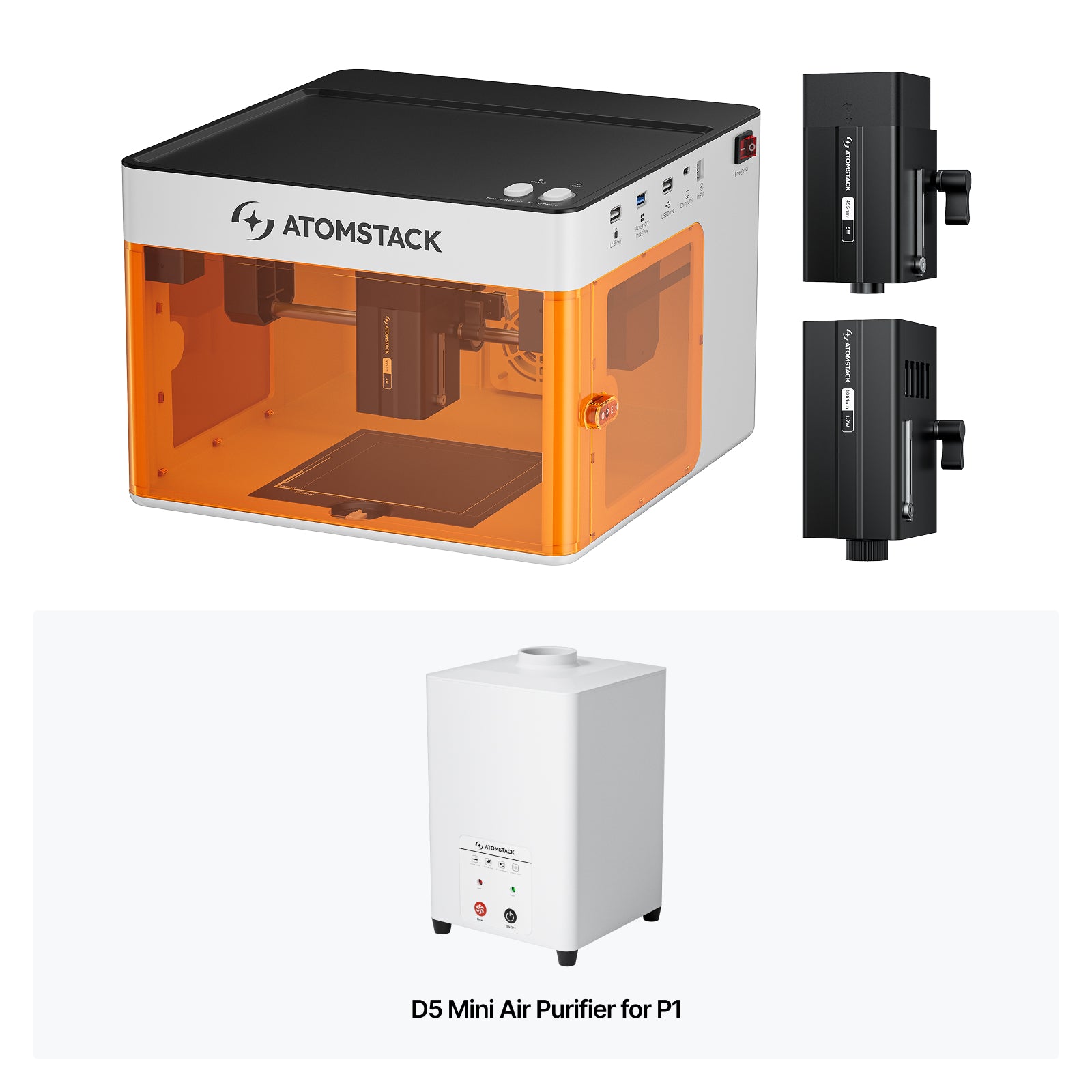

P1 Dual (5W Diode + 1.2W IR） / US Plug / Machine Only

Machine Only

46900

48900

Save 4%

P1 Dual Laser Engraver Only

P1 Dual (5W Diode + 1.2W IR） / US Plug / Roller Bundle

Roller Bundle

53900

67800

Save 21%

P1 Dual Laser Engraver, R6 Rotary Roller

P1 Dual (5W Diode + 1.2W IR） / US Plug / Chuck Bundle

Chuck Bundle

56900

72800

Save 22%

P1 Dual Laser Engraver, R8 Rotary Chuck

P1 Dual (5W Diode + 1.2W IR） / US Plug / Pro Bundle

Pro Bundle

64900

82800

Save 22%

P1 Dual Laser Engraver, R8 Pro Rotary Roller Set

P1 Dual (5W Diode + 1.2W IR） / EU Plug / Machine Only

Machine Only

52900

57900

Sold out

P1 Dual Laser Engraver Only

P1 Dual (5W Diode + 1.2W IR） / EU Plug / Roller Bundle

Roller Bundle

57900

72800

Sold out

P1 Dual Laser Engraver, H1 High Pedestal, R6 Rotary Roller

P1 Dual (5W Diode + 1.2W IR） / EU Plug / Chuck Bundle

Chuck Bundle

60900

77800

Sold out

P1 Dual Laser Engraver, H1 High Pedestal, R8 Rotary Chuck

P1 Dual (5W Diode + 1.2W IR） / EU Plug / Pro Bundle

Pro Bundle

68900

87800

Sold out

P1 Dual Laser Engraver, H1 High Pedestal，R8 Pro Rotary Roller Set

Frequently Bought Together

Lightburn Software - Gcode License Key, for Most Diode Laser Engravers Machines On The Market

$99.00 ~~$118.00~~

Save 16%

Guaranteed Safe Checkout

Fast & Free Shipping

12-month Warranty

Get 2% of Your Order Back

30-day Return Money

Simple and Easy to Use

Infrared Module Compatible

Easy & Free Software AtomStack Studio

Mini and Portable

High-Speed Performance

5W Diode & 1.2W IR

Cut and Engrave with Ease:
The diode laser cuts 3mm plywood in one pass, while the IR laser engraves metal precisely.

Versatile Material Compatibility:
Ideal for beginners looking for a reliable engraver.

Beginner-Friendly, Quick to Get Started

Preloaded Design Library:
Explore preloaded designs and case studies.

Guided Material Parameter Settings:
Switch easily between custom and standard modes with auto-detection of material parameters.

Auto Accessory Recognition:
The built-in chip automatically recognizes connected accessories and switches to the correct mode.

Mini and Portable

Compact Dimensions:
Measuring just 265 x 303 x 185mm and weighing 3kg, it’s perfect for any workspace.

Convenient Mobility:
Lightweight and portable for use at home, in the studio, or on the go.

High-Speed Performance

Setting new standards for entry-level machines.

The super efficient and rock-solid Core XY design cranks up the creative speed to a blazing 10,000mm/min!

Experience Fun in Various Scenarios

For the Home

Personalize everyday items like backpacks, notebooks, pens, keychains, wallets, mugs, photo plaques, coasters, and dog tags.

For your Studios

Add custom designs to spoons, cups, paper, necklaces, and more.

For your Studios

Add custom designs to spoons, cups, paper, necklaces, and more.

Accessory Features

Expand your capabilities with optional add-ons like extension rails and rotary tools.

Precise Engraving on Various Materials

5W Diode Laser

1.2W IR Laser

Wood

Bamboo

Paper

Cork/Cardboard

Rock

Leather

Glass

Fabric

Easy Free Software AtomStack Studio

Beginner-Friendly,
Quick to Get Started

Preloaded
Design Library

Guided Material
Parameter Settings

Auto Accessory
Recognition

FDA Class 1 Safety Laser

The fully enclosed design with a viewing window ensures safety and user comfort.

USB Safety Interlock

Insert the USB key to unlock processing and related functions.

Quick Focus Adjustment

The focus adjustment tool makes setup easy, protecting your eyes while improving precision.

Secure Enclosure Detection

Designed for safety-automatically stops operation if the door is not properly closed.

Gyro-Based Tilt Detection

A built-in gyroscope stops operation if excessive tilting is detected, ensuring safety.

FDA Class 1 Safety Laser

The fully enclosed design with a viewing window ensures both safety and user comfort.

USB Safety Interlock

Insert the USB key to unlock processing and related functions.

Quick Focus Adjustment

The focus adjustment tool makes setup easy, protecting your eyes while improving precision.

Secure Enclosure Detection

Designed for safety-automatically stops operation if the door is not properly closed.

Gyro-Based Tilt Detection

A built-in gyroscope stops operation if excessive tilting is detected, ensuring safety.

High Compatibility

All-New Free AtomStack App & Fully Compatible with LightBurn

AtomStack Studio

Optimized for the best product compatibility experience.

Download

LightBurn

Seamlessly compatible with LightBurn

Buy Now

AtomStack Studio

Optimized for the best product compatibility experience.

Download

LightBurn

Seamlessly compatible with LightBurn

Buy Now

Variety of Tools to Boost Productivity

Endless Fun with Versatile Accessories, Unlock Unlimited Potential.

Rotary Chuck

Ensures precise 360° engraving on cylindrical and curved surfaces.

Buy Now

Rotary Roller

Provides smooth, even engraving on round and irregularly shaped objects.

Buy Now

Slide Extension

Expands working area threefold, supporting larger projects and materials.

Buy Now

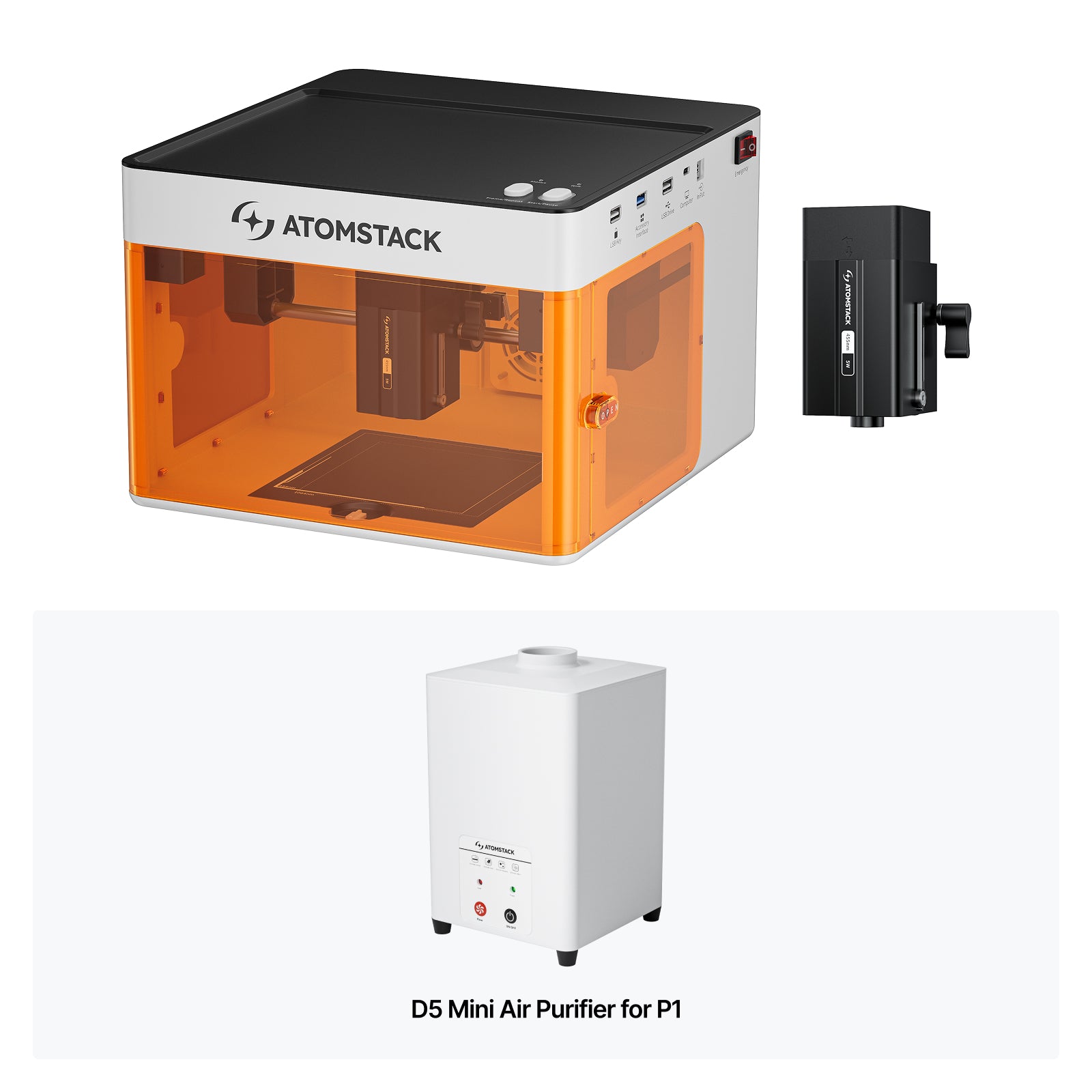

Air Purifier

Handles Engraving Fumes, Caring for Your Health

Buy Now

After-sales support

Features

Model

Single Laser Version

Buy now

Dual Laser Version

Buy now

Laser Type

5W Diode Laser

5W Diode Laser
1.2W Infrared Laser

Laser Wavelength

455nm

5W Diode Laser: 455nm
1.2W Infrared Laser: 1064nm

Laser Spot Size

0.08 x 0.06 mm

5W Diode Laser: 0.08 x 0.06 mm
1.2W Infrared Laser: 0.03 x 0.03 mm

Working Area

4.33" x 4.33"
110 mm x 110 mm

5W Diode Laser:	1.2W Infrared Laser:
4.33" x 4.33"	4.13" x 3.94"
110 mm x 110 mm	105 mm x 100 mm

Supported Materials

Wood, Bamboo, Paper, Leather, Cardboard, Cork, Rock, Felt, Fabric, MDF, Coated Metal, Some Dark Opaque Acrylic, etc.

5W Diode Laser:
Wood, Bamboo, Paper, Leather, Cork, Rock, Felt, MDF, Fabric, Cardboard, Coated Metal, Some Dark Opaque Acrylic, etc.
1.2W Infrared Laser:
Stainless Steel, Aluminum, Brass, lron, Gold, Silver, Platinum, Titanium, Black Acrylic, Plastic, etc.

Max. Working Speed

10000 mm/min

Safety Certification

Class 1 Laser Safety

Laser Safety

FDA Class 1 Safety Laser
Quick Focus Adjustment
Secure Enclosure Detection
Gyro-Based Tilt Detection
USB Safety Interlock

Motion Accuracy

0.1 mm

Focus Mode

Manual Focus

Max. Laser Cutting Capacity

3 mm Basswood plywood in ONE PASS(5W diode laser)

Max. Processing Height

50 mm

Supported Accessories

Rotary Chuck
Rotary Roller
Slide Extension
Air Purifier

Supported Software

AtomStack / LightBurn

Operating System

Android / iOS / Windows / macOS

Connection Method

USB / Wi-Fi / Hotspot

Pre-assembled

Yes

Machine Size

10.43" x 11.93" x 7.28"
265 mm x 303 mm x 185 mm

Machine Weight

3kg(6.7 lbs)

Features

Single Laser Version Buy now	Dual Laser Version Buy now
Laser Type 5W Diode Laser	5W Diode Laser 1.2W Infrared Laser
Laser Wavelength 455nm	5W Diode Laser: 455nm 1.2W Infrared Laser: 1064nm
Laser Spot Size 0.08 x 0.06 mm	5W Diode Laser: 0.08 x 0.06 mm 1.2W Infrared Laser: 0.03 x 0.03 mm
Working Area 4.33" x 4.33" 110 mm x 110 mm	5W Diode Laser: 4.33" x 4.33" / 110 mm x 110 mm 1.2W Infrared Laser: 4.13" x 3.94" / 105 mm x 100 mm
Supported Materials Wood, Bamboo, Paper, Leather, Cardboard, Cork, Rock, Felt, Fabric, MDF, Coated Metal,Some Dark Opaque Acrylic, etc.	5W Diode Laser: Wood, Bamboo, Paper, Leather, Cork, Rock, Felt, MDF, Fabric, Cardboard,Coated Metal, Some Dark Opaque Acrylic, etc. 1.2W Infrared Laser: Stainless Steel, Aluminum, Brass, lron, Gold, Silver,Platinum, Titanium, Black Acrylic, Plastic, etc.
Max. Working Speed 10000 mm/min
Safety Certification FDA Class 1 Laser Safety
Laser Safety FDA Class 1 Laser Safety Quick Focus Adjustment Secure Enclosure Detection Gyro-Based Tilt Detection USB Safety Interlock
Motion Accuracy 0.1 mm
Focus Mode Manual Focus
Max. Laser Cutting Capacity 3 mm Basswood plywood in ONE PASS(5W diode laser)
Max. Processing Height 50 mm
Supported Accessories Rotary Chuck Rotary Roller Slide Extension Air Purifier
Supported Software AtomStack / LightBurn
Operating System Android / iOS / Windows / macOS
Connection Method USB / Wi-Fi / Hotspot
Pre-assembled Yes
Machine Size 10.43" × 11.93" × 7.28" 265 mm x 303 mm x 185 mm
Machine Weight 3kg（6.7 lbs）

Laser Cutter/Engraver FAQs

What versions of the AtomStack P1 are available, and how should I choose?

The AtomStack P1 comes in two versions:

Single Laser Version: Includes a 5W diode laser.

Dual Laser Version: Includes a 5W diode laser and a 1.2W infrared laser.

If you're looking to work with a broader range of materials, like metals (gold, silver, brass, platinum), plastics, or dark acrylics—the dual laser version is your best bet. But if you're not sure yet, you can start with the single laser version and then add the 1.2W infrared laser later if you need it.

What materials can the AtomStack P1 engrave and cut?

Laser Engravable Materials:

5W Diode Laser: Wood, Bamboo, Paper, Leather, Cardboard, Cork, Rock, Felt, Fabric, MDF, Coated Metal, Some Dark Opaque Acrylic, etc.

1.2W Infrared Laser: Stainless Steel, Aluminum, Brass, lron, Gold, Silver, Platinum, Titanium, Black Acrylic, Plastic, etc.

Laser Cuttable Materials:

5W Diode Laser: Paper, Plywood, Leather, Felt, Fabric, Black Acrylic.

The 5W diode laser can cut 3mm basswood plywood in one pass, and can also cut 5mm basswood plywood and 3mm black acrylic in multiple passes.

Is the AtomStack P1 user-friendly for beginners?

Yes, the AtomStack P1 is perfect for users with no prior laser engraving experience. There's no assembly needed after unboxing, and in the best-case scenario, you can go from unboxing to engraving in as little as 10 minutes. Anyone can easily get started and learn how to use it.

What advantages does the P1 have compared to other similar products?

The AtomStack P1 is IEC60825-1 certified by SGS, making it a true Class I laser product. With its fully enclosed design and visual window, it ensures both safety and ease of use.

The free and easy-to-use AtomStack software comes with a extensive library of preloaded materials and designs, including recommended
settings for various materials, making it easy for beginners to get started.

What expandable accessories are available for the P1, and what are their functions?

Rotary Roller: Processes regular cylindrical objects, such as Tumbler, pens, baseball bats, wine glasses, etc.

Rotary Chuck: Processes cylindrical and ring-shaped items, such as Tumbler, wine glasses, rings, bracelets, etc.

Slide Extension: Expands the processing area, allowing for engraving or cutting larger items, it also enables batch processing of multiple items of the same size, improving work efficiency.

Air Purifier: Purifies harmful gases such as smoke and dust generated during the work process, keeping the environment clean.

Can I use the AtomStack P1 with LightBurn software?

Yes, but it's more recommended to use AtomStack's software, which is more user-friendly for beginners.

Can I use the AtomStack P1 without WiFi?

Yes, the AtomStack P1 supports USB connections for use with a computer (note that the computer only supports USB for now).
For mobile devices, the P1 supports WiFi and mobile hotspot connections. When using hotspot mode, the phone will not have network access,
We recommend configuring WiFi for the best experience.

AtomStack P1 Laser Engraver

Machine Only

Roller Bundle

Chuck Bundle

Pro Bundle

Frequently Bought Together

Lightburn Software - Gcode License Key, for Most Diode Laser Engravers Machines On The Market

My Cart

TOTAL
