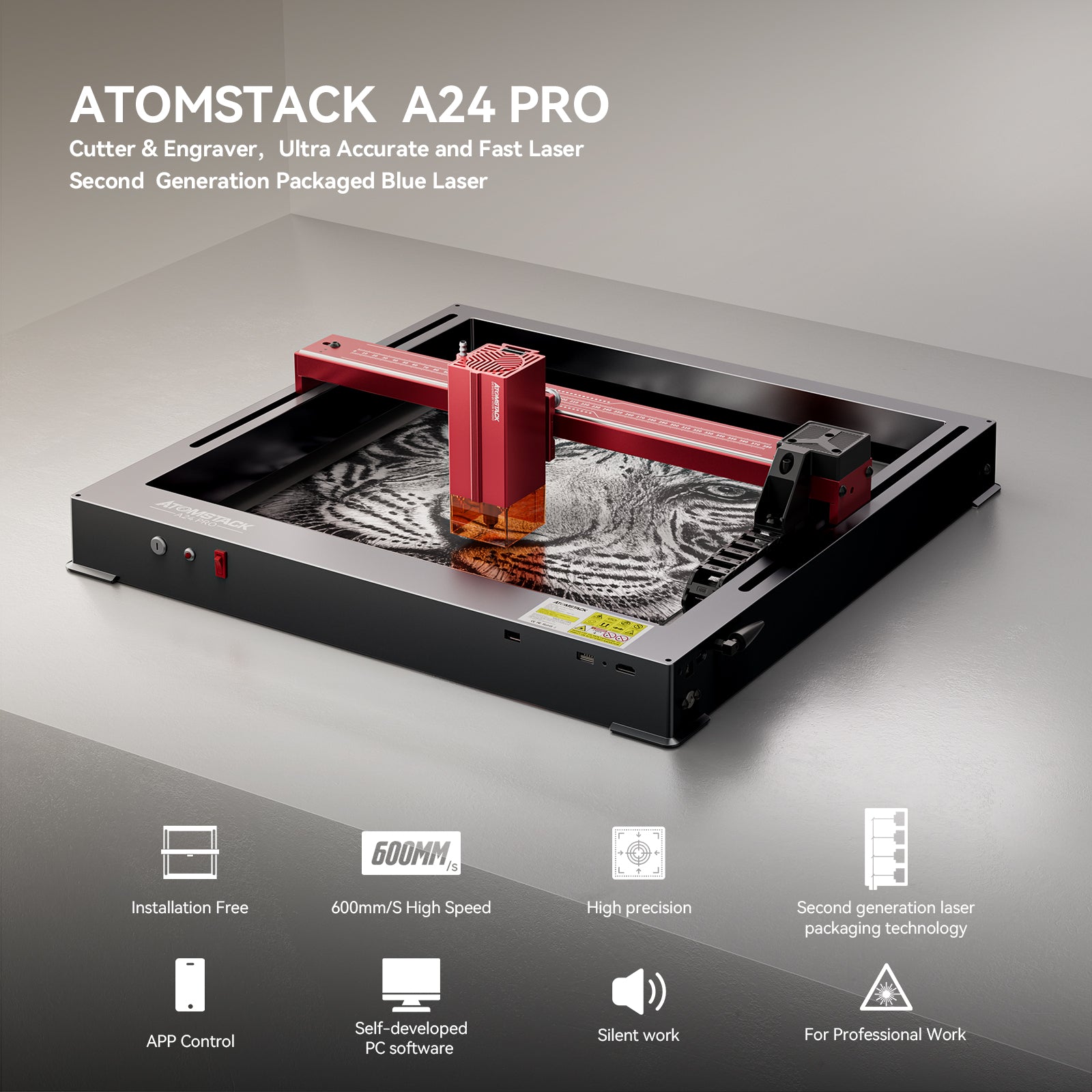

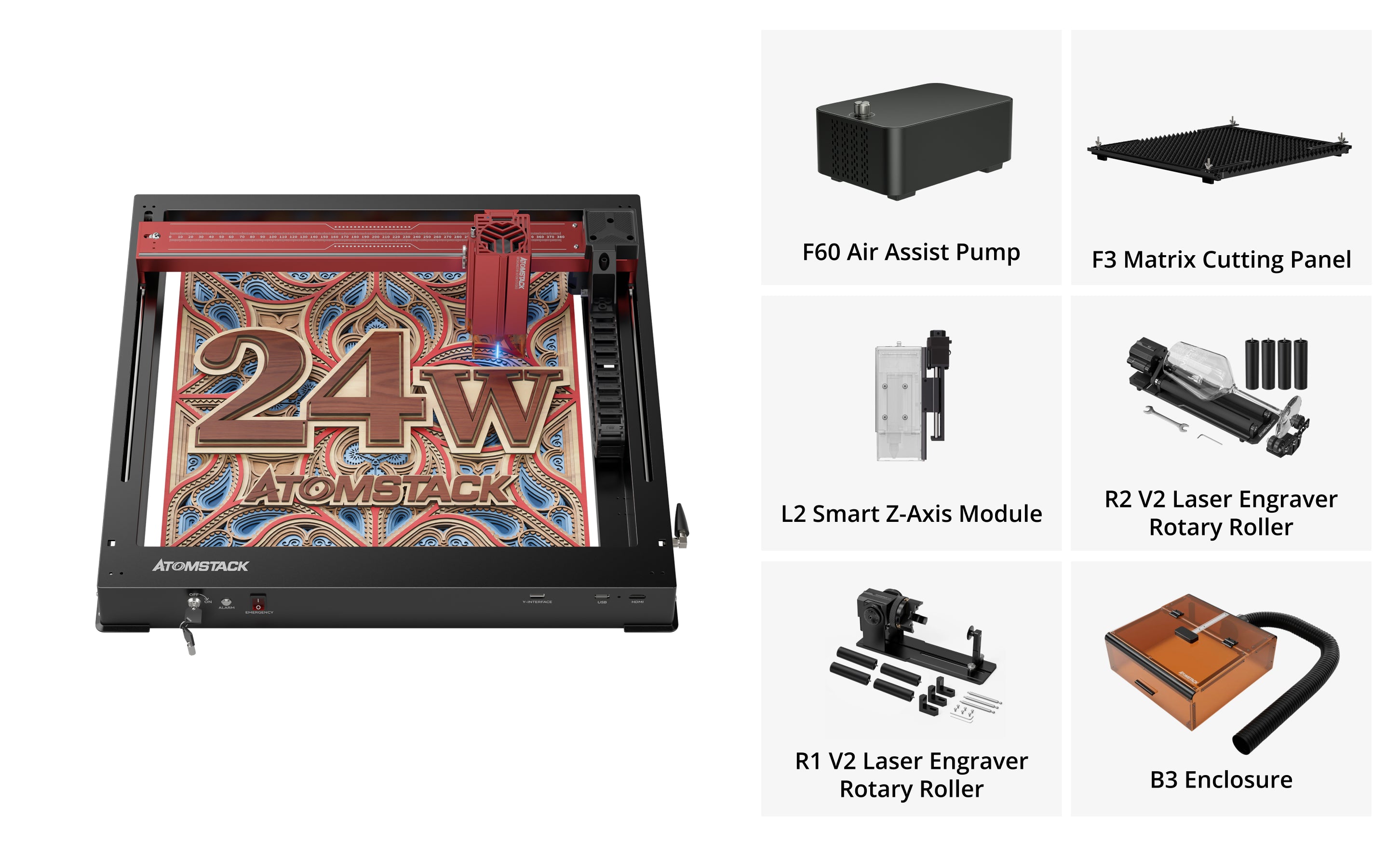

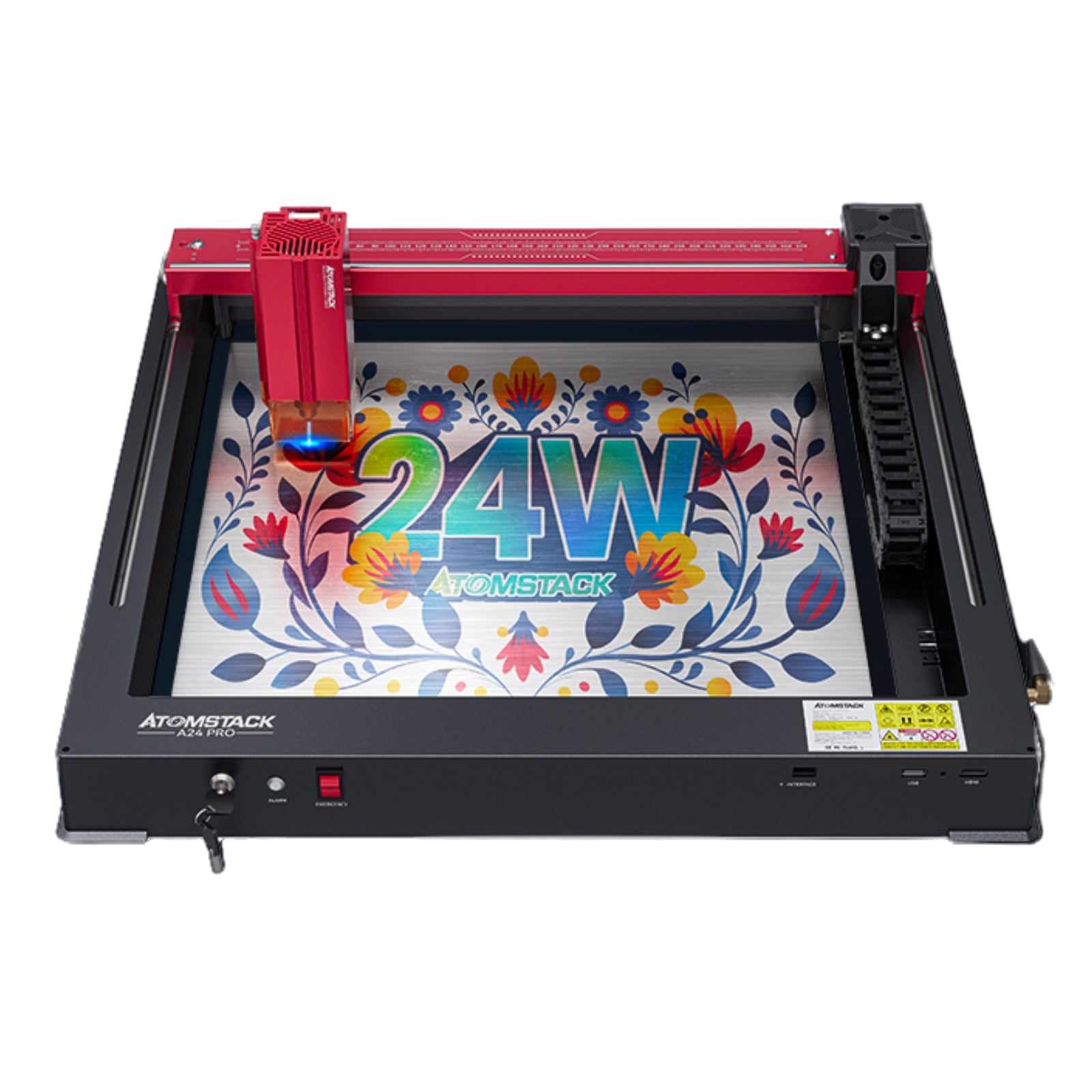

AtomStack A24 PRO Optical Power 24W Laser Engraver Unibody Frame No Assembly Required
- 24W laser output
- 0.06mm*0.06mm laser spot
- 12mm Solid wood, 8mm Acrylic Cutting in One-PASS
- 600mm/s (36000mm/min) engraving speed
- Built-in Cross Laser Positioning
- Built-in gyroscope, automatic tipping detection(>10°)
- Support 400+ colors engraving
Better performance, More stable frame
AtomStack’s Brand New Generation Laser Engraving Machine
A True Milestone
Stable 24W Optical Power
Introducing the AtomStack A24 Pro: AtomStack’s brand new second-generation laser engraving machine boasting an unparalleled 24W optical power.
- 12mm Solid wood Cutting in One-PASS
- 8mm Acrylic Cutting in One-PASS
- even cut 0.05mm thin sheet metal

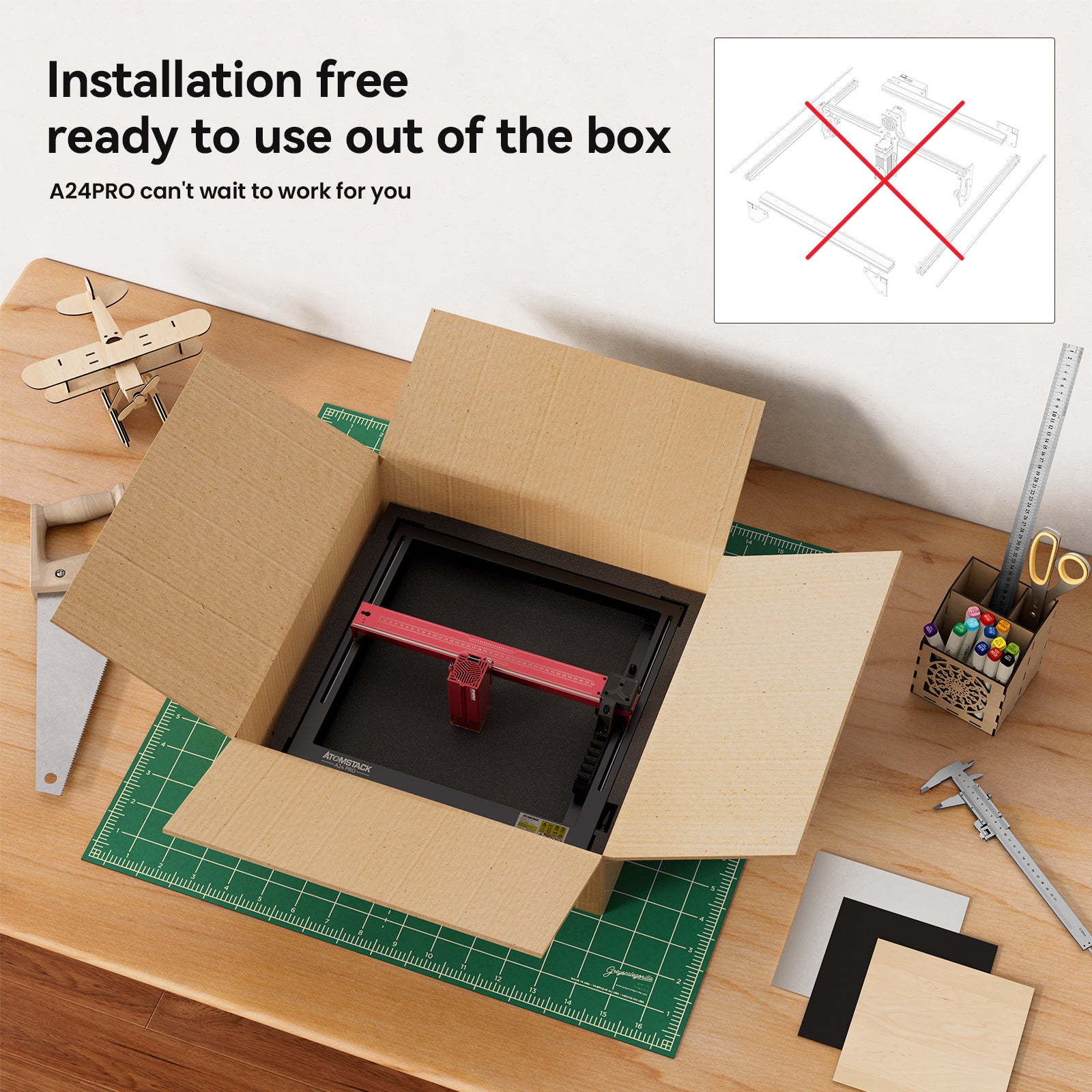

Virtually No Installation Required
Brand New One-Piece Design

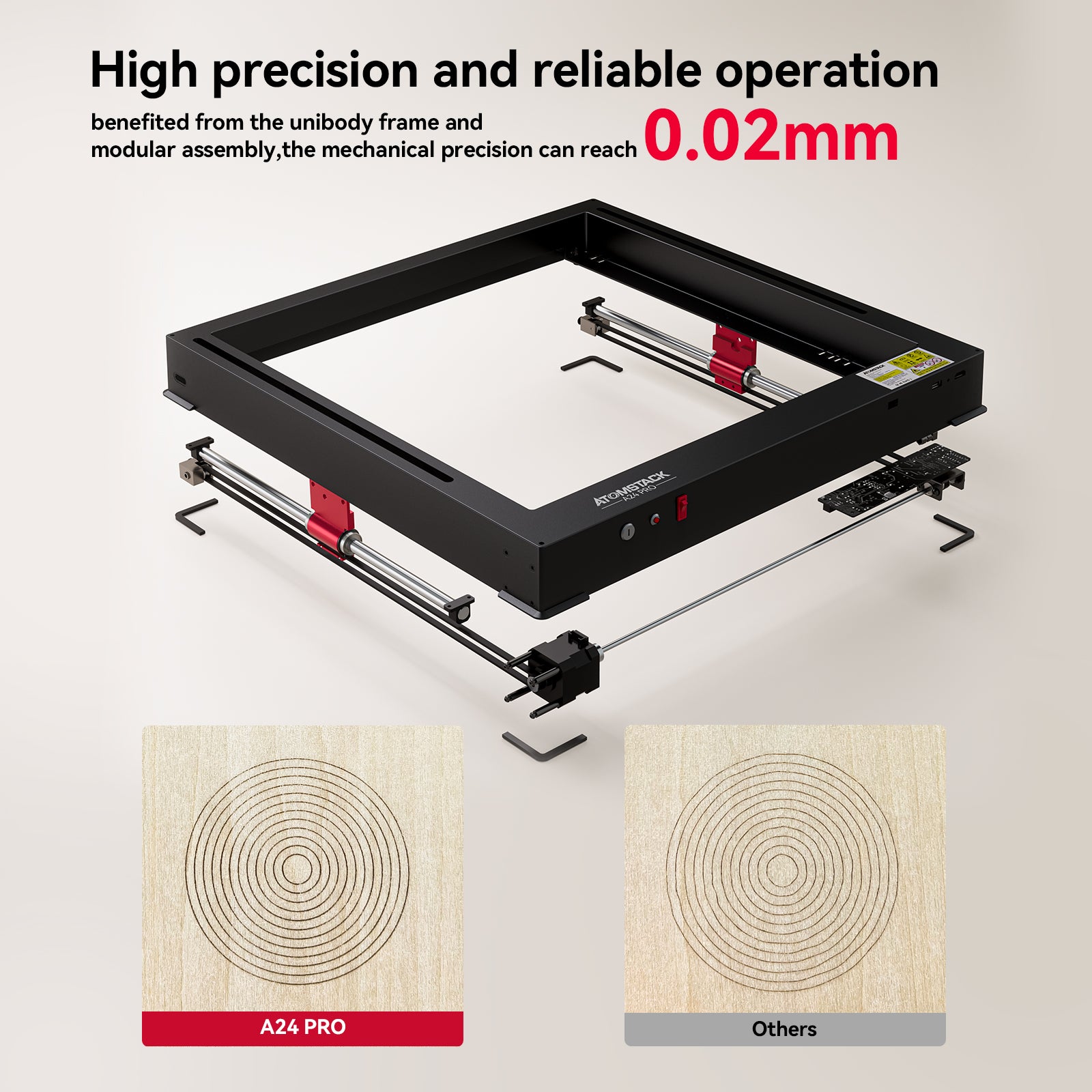

The AtomStack A24 Pro crafted from anodized full aluminum alloy, this design ensures durability and engraving precision. Plus, it's one-piece frame design, calibrated with precision before shipping, allowing you to use the perfect machine right out of the box.
Essential Improvement
Highest Level of Accuracy

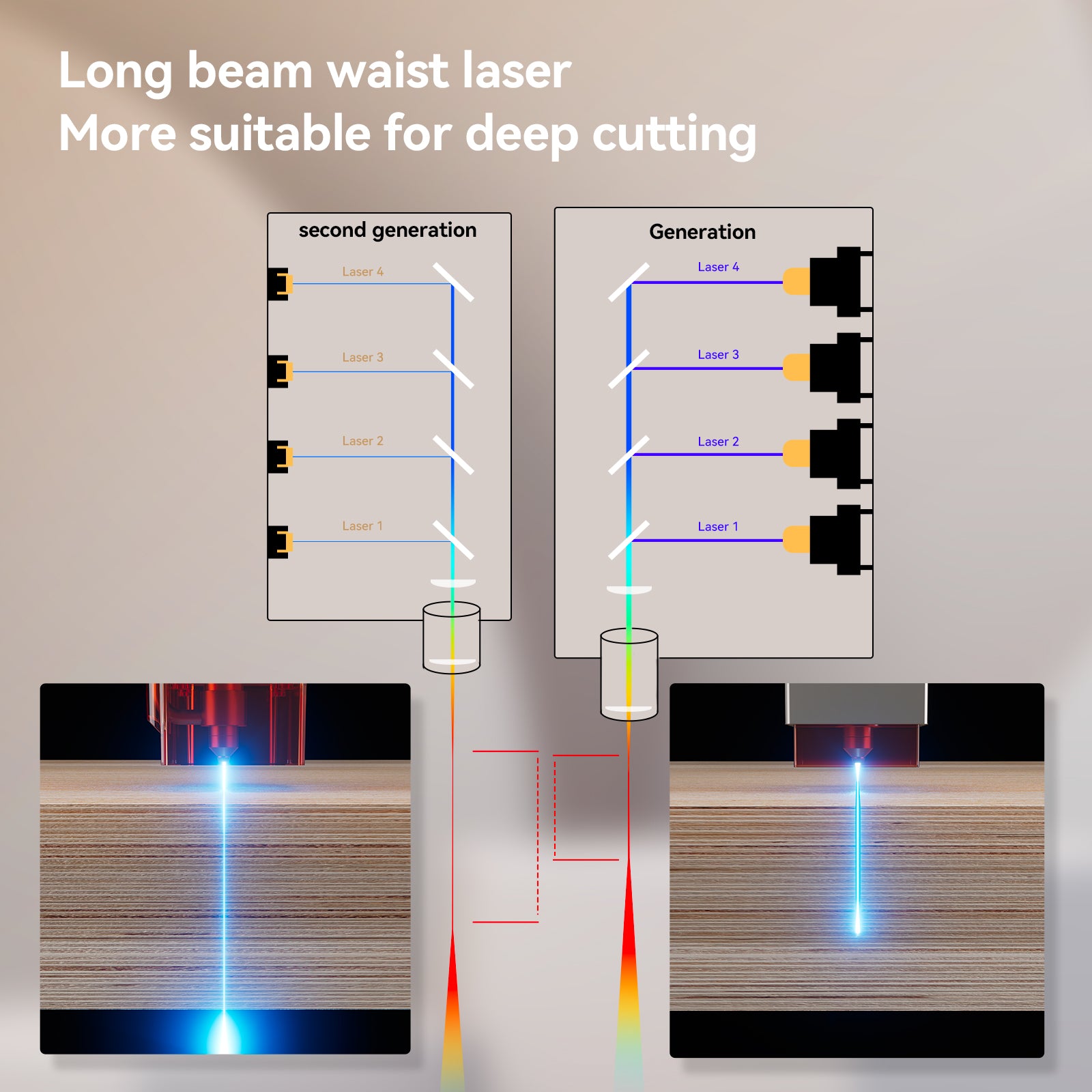

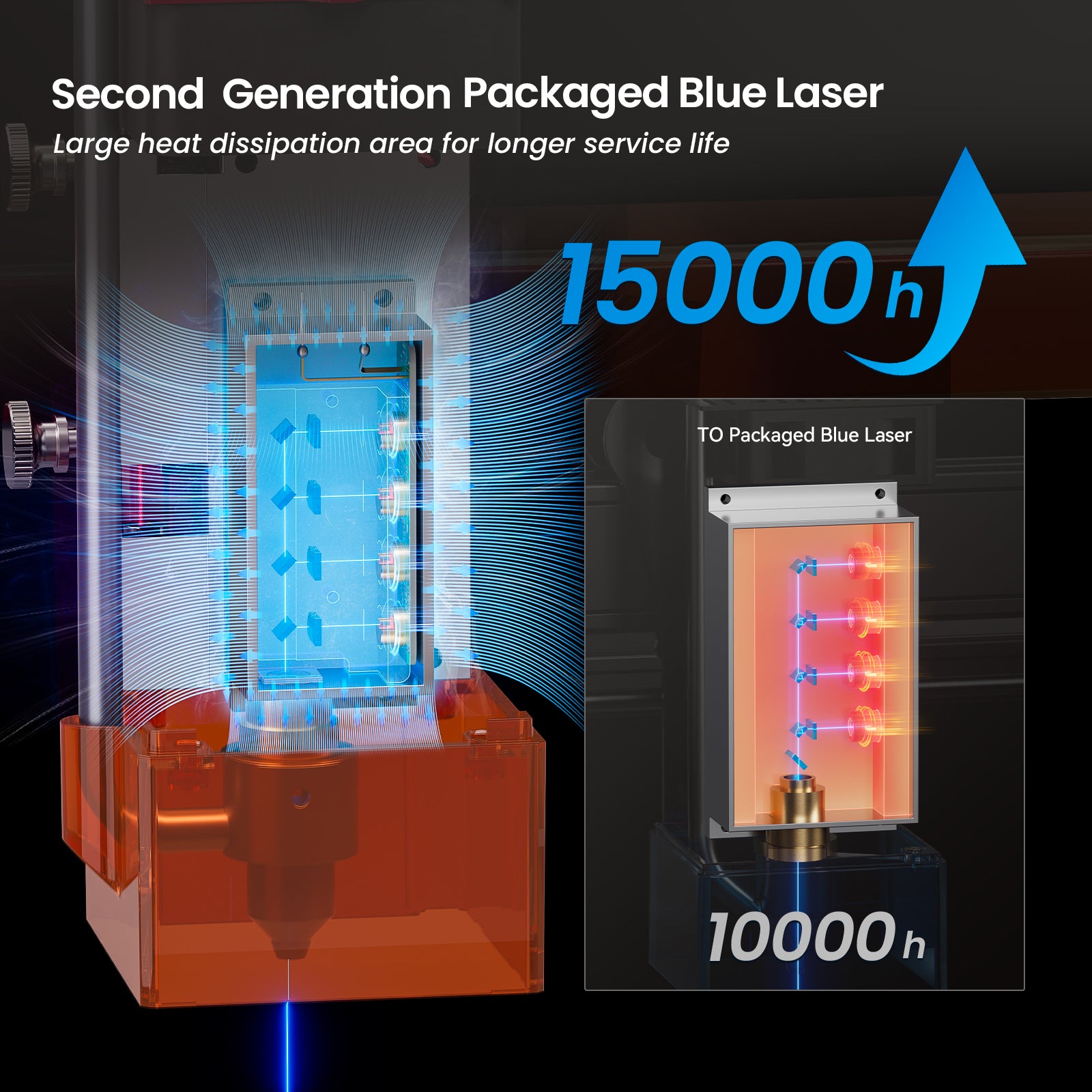

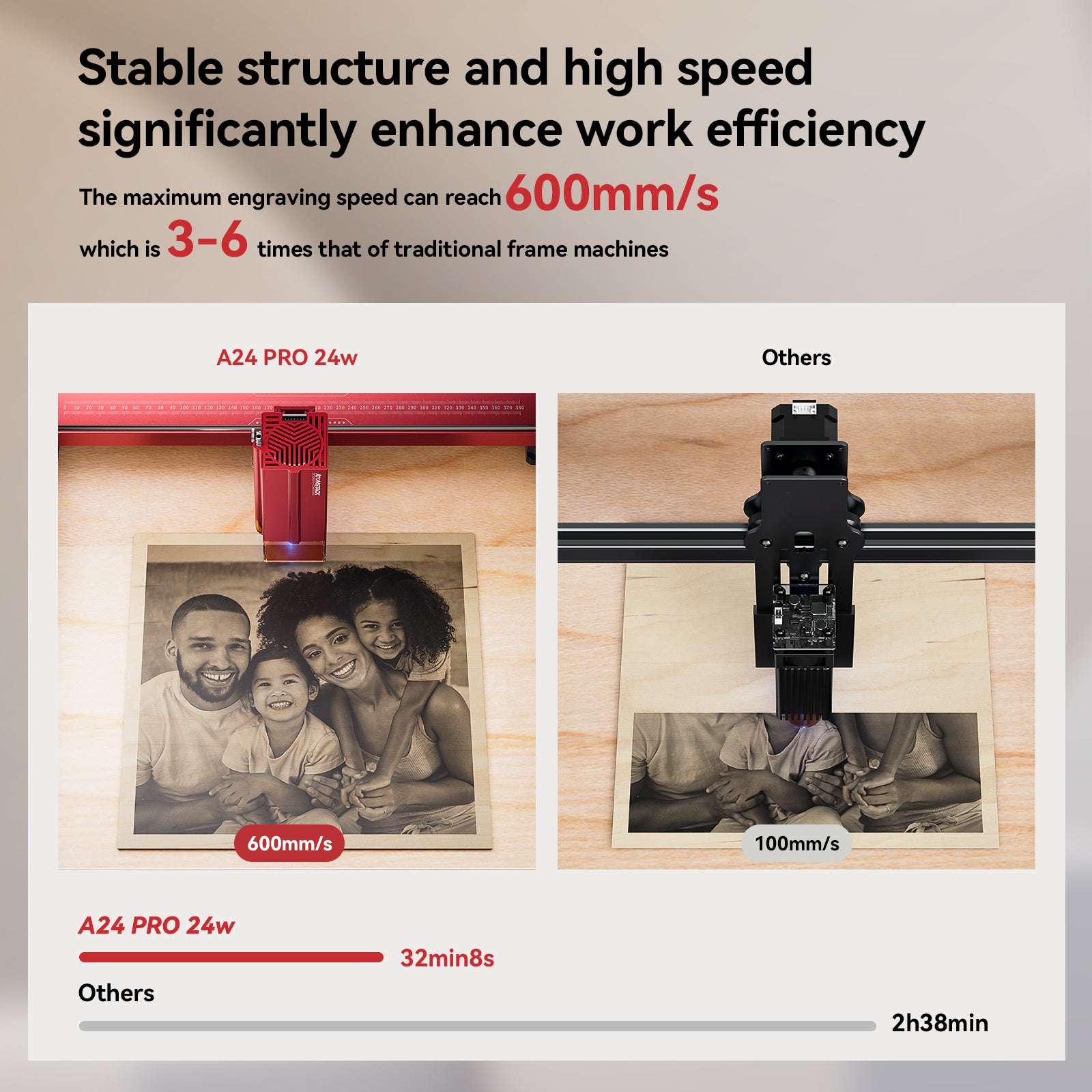

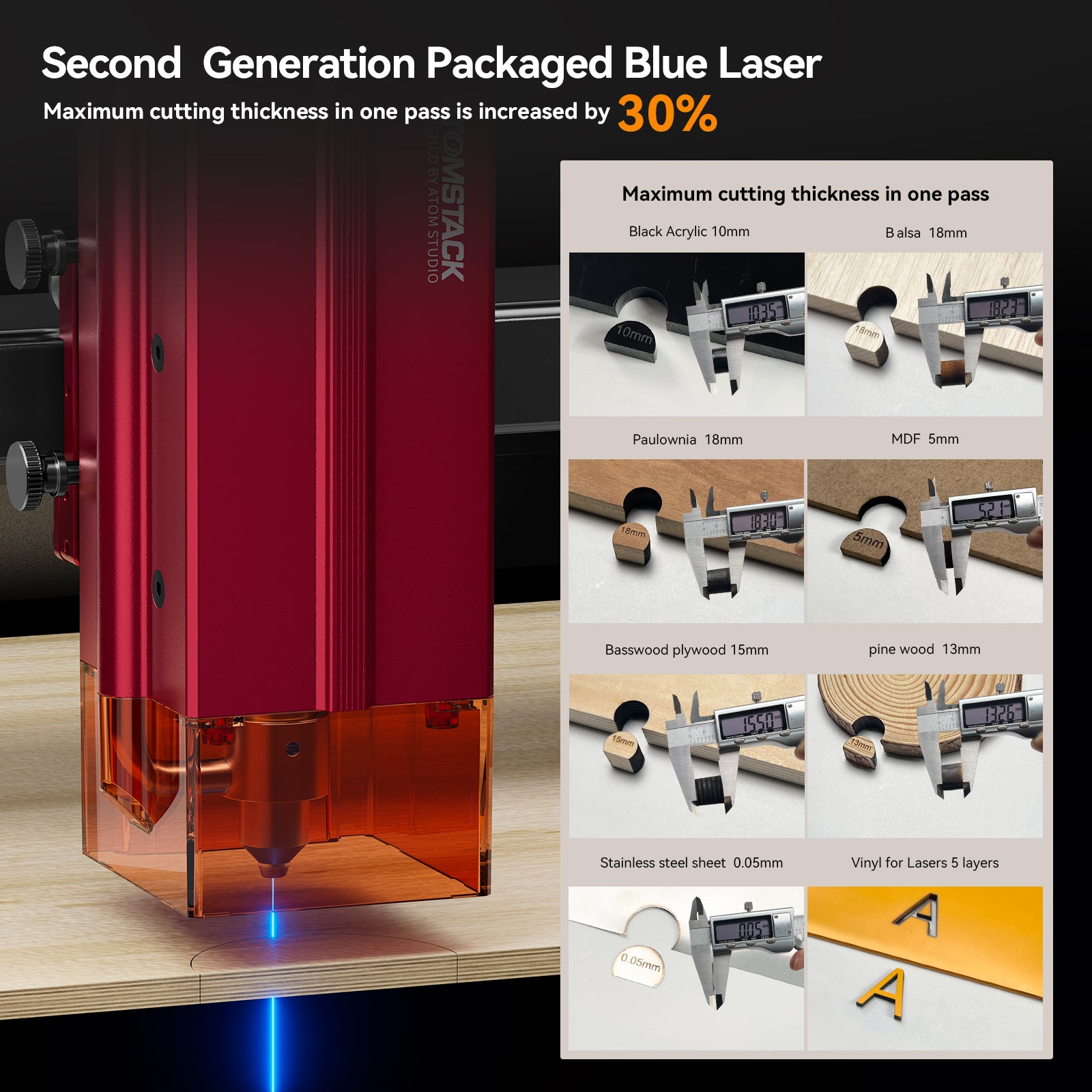

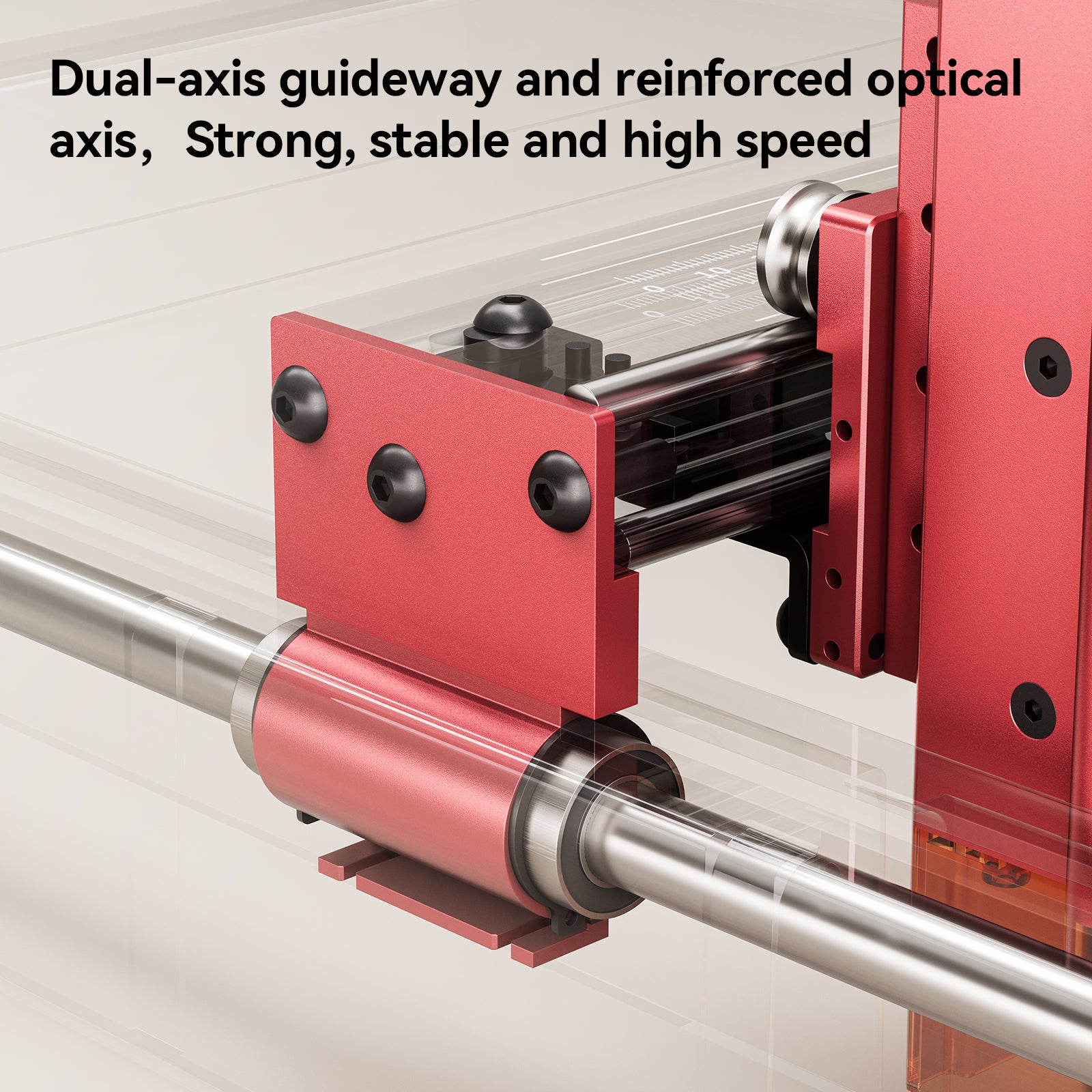

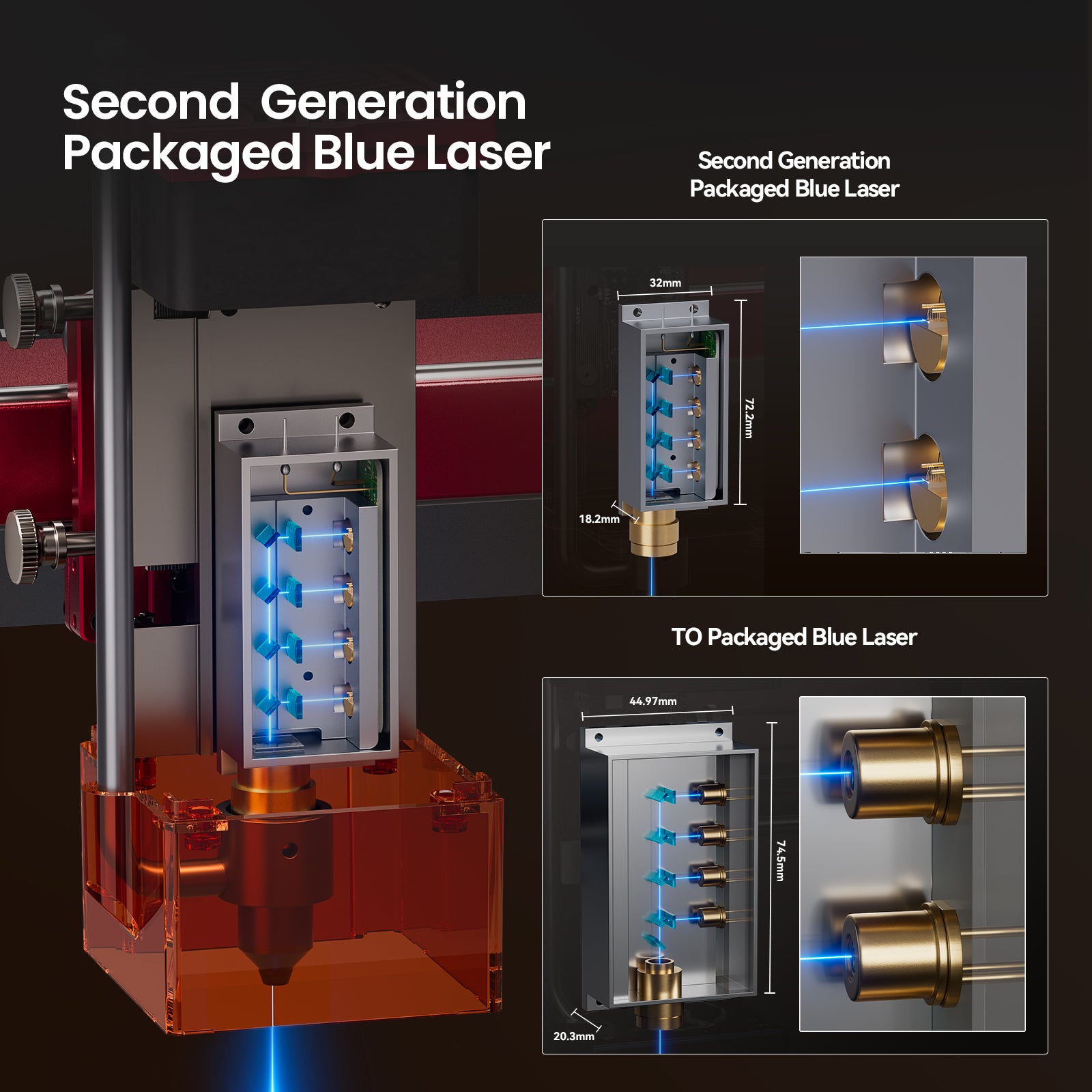

The AtomStack A24 Pro distinguishes itself from its predecessors with a more robust and stable X-axis linear guide. This enhancement guarantees the A24 Pro's smooth operation even at impressive speeds of 600mm/s. With the integration of beam coupling technology, the accuracy has been further enhanced.Utilizing the second-generation packaging technology, the laser’s focal point extends further, greatly improving cutting ability.

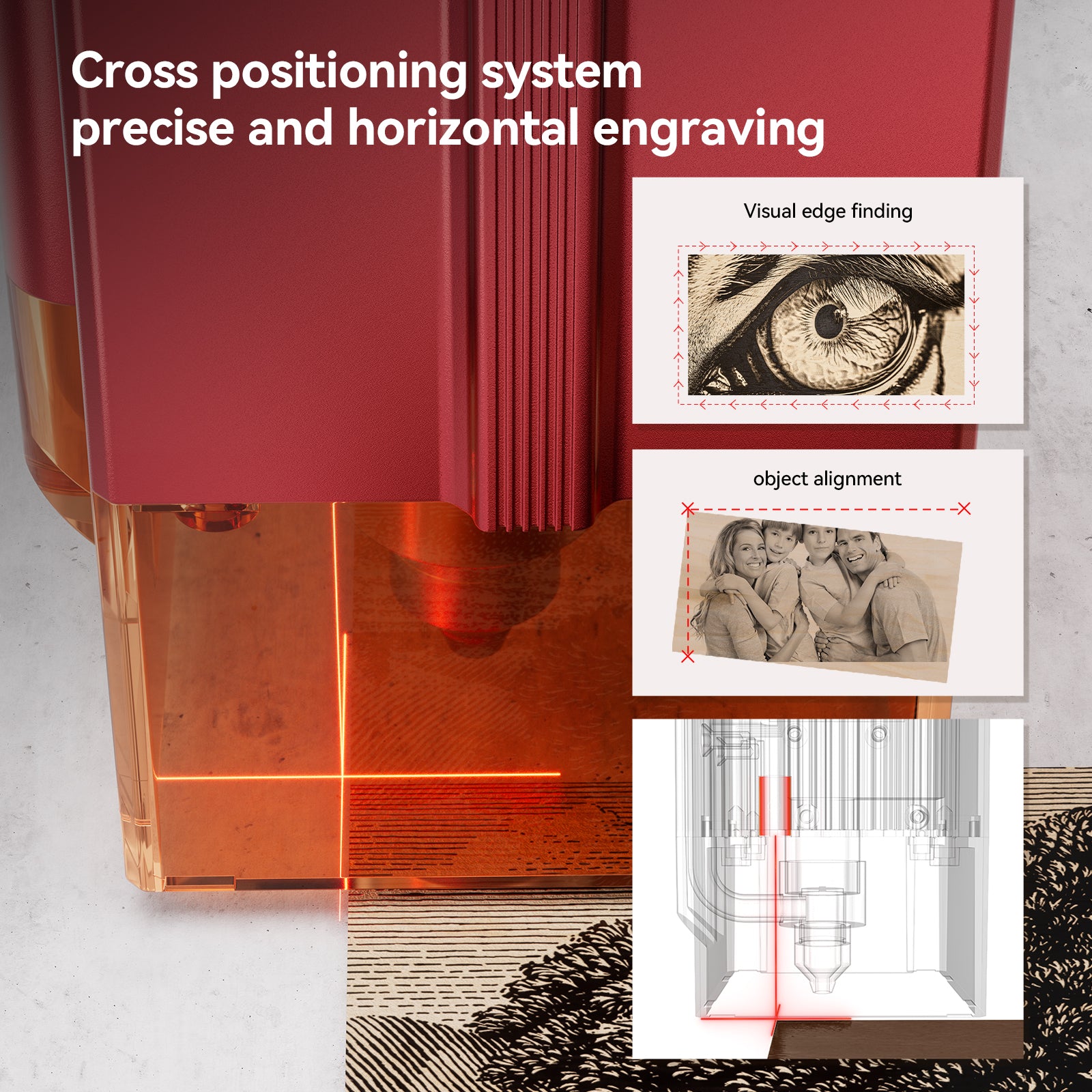

Accurate Positioning
Locate The Engraving Area More Clearly
The AtomStack A24 Pro newly added cross laser positioning feature for clear visibility of the laser’s location, perfect alignment for engraving, and easy horizontal adjustment.
Reviews On AtomStack A## Pro Series

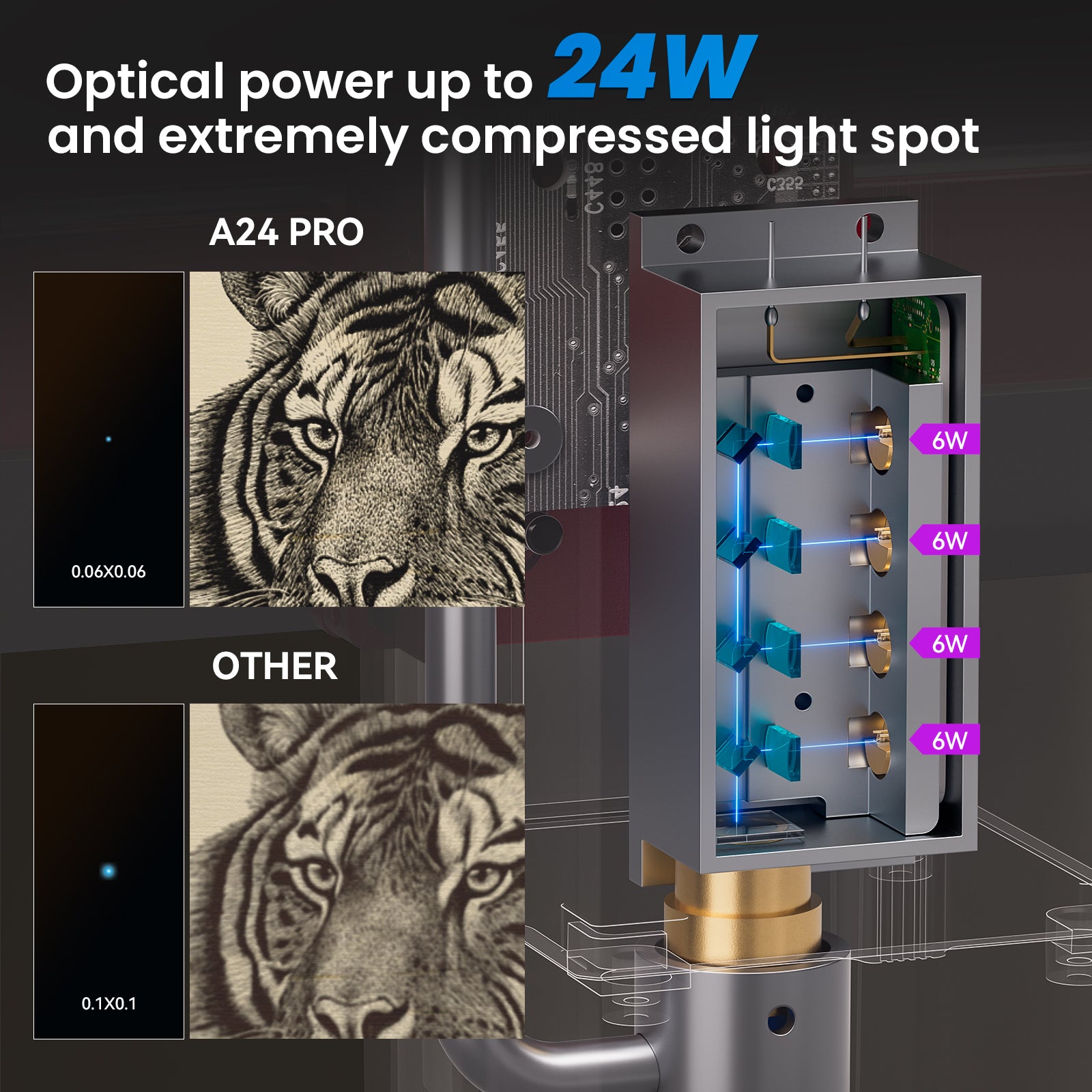

1. Unprecedented Power: The world's first laser engraver boasting a 24W optical power. With a cutting-edge combination of four 6W lasers, it effortlessly cuts through 12-15mm thick tungsten and 8mm thick acrylic in a single pass, and can even handle 0.05mm stainless steel.
2. Sturdy and No Setup Required: Crafted from anodized full aluminum alloy, this design ensures durability and engraving precision. Plus, it's one-piece frame design, calibrated with precision before shipping, allowing you to use the perfect machine right out of the box.
3. Enhanced Motion Structure: The AtomStack A24 PRO sets a new standard with its superior structural stability, employing a linear guide for the X-axis. This ensures smooth operation at high speeds of up to 600mm/s, yielding perfect engraving and cutting lines without any shaking.
4. Cross Laser Positioning: Newly added cross laser positioning feature for clear visibility of the laser’s location, perfect alignment for engraving, and easy horizontal adjustment.

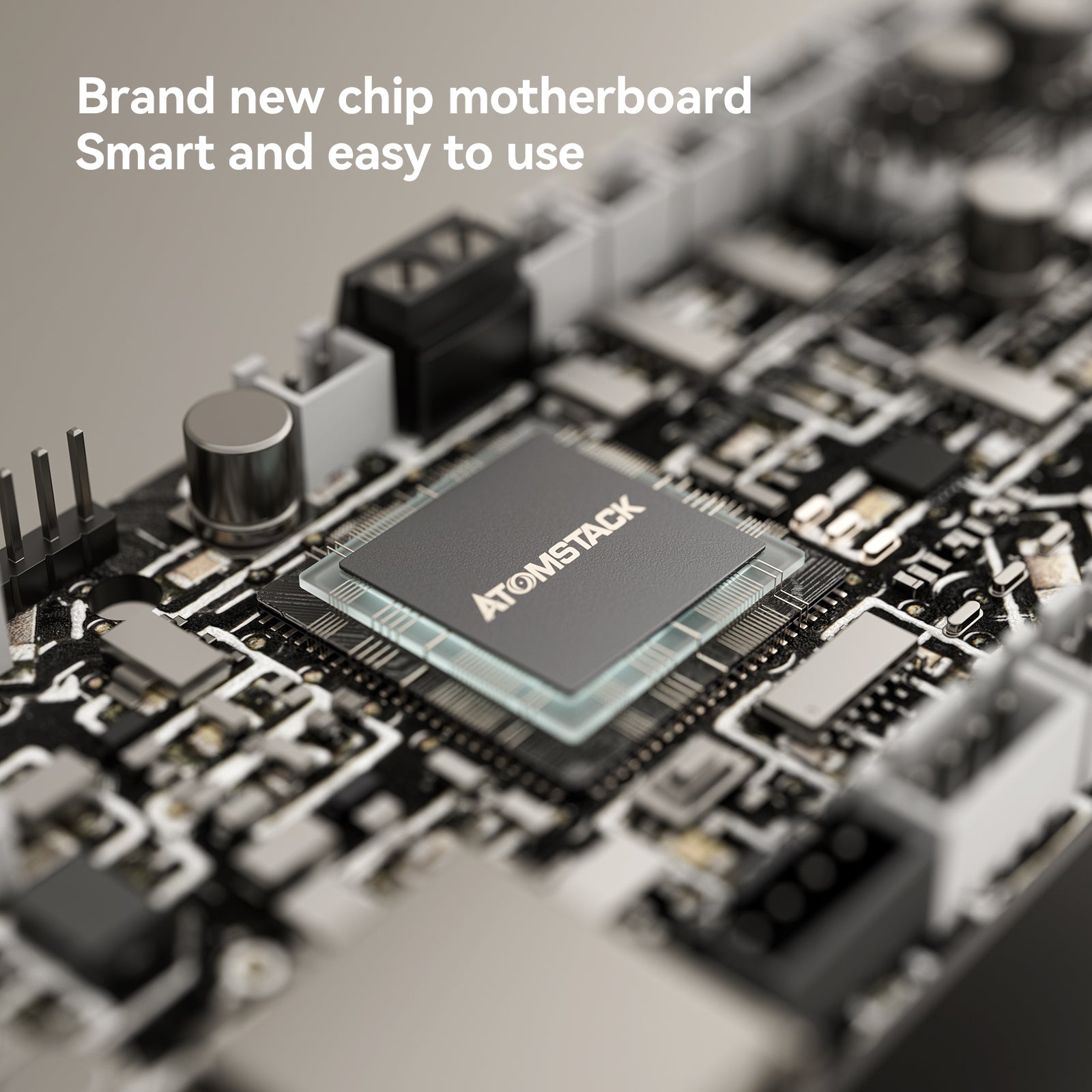

5. Advanced 32-bit Motherboard: Our latest AtomStack innovation features a 256-bit color scale, delivering unparalleled engraving clarity and contrast. Now, vibrant projects aren't just a dream!
6. AtomStack Mobile App: Available on major Android and Apple stores, our custom-designed app provides a unique, seamless control experience. All in the palm of your hand!
7. Eye-Protection Redefined: Our panoramic filter glass cover shields eyes effectively, blocking 97% of UV light. No more goggles; observe your engraving in real-time, safely.
8. State-of-the-Art Fixed-Focus Laser: No more pre-engraving adjustments. This laser's focal spot is notably smaller and more precise, marrying detailed engraving with powerful cutting.

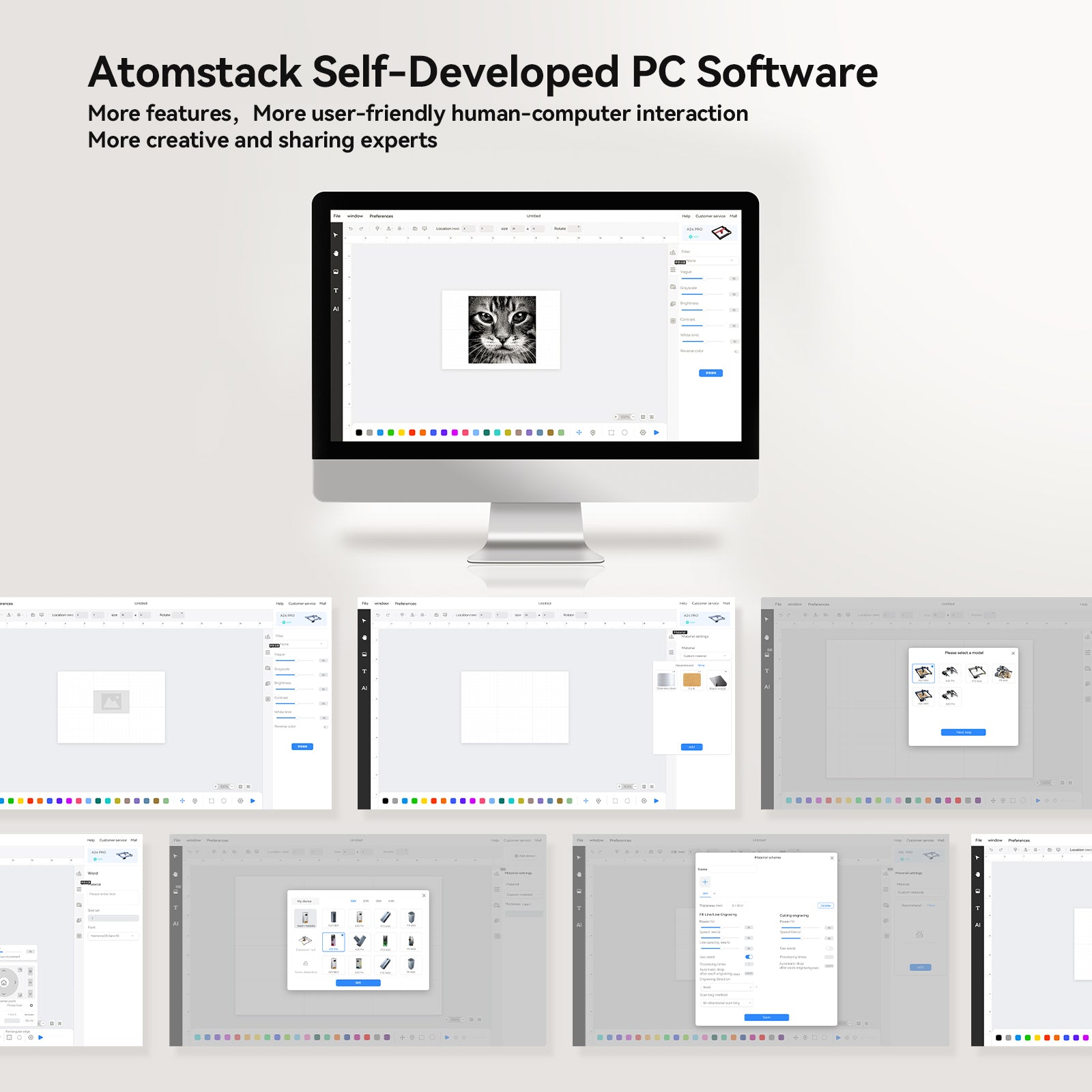

9. Universal Compatibility: Supports a plethora of engraving software like LaserGRBL and LightBurn. Compatible with numerous OS and file formats, ensuring flexibility in your projects.
10. Detailed Axis Scale Lines: Precise scales on the X and Y axes enable swift measurements. With a generous 365*305mm engraving area, all your project needs are covered.
11. Superior Compression Technology: An ultra-fine laser focus of 0.06*0.06mm allows for easy cutting of materials like 25mm wood and 30mm acrylic. Its performance rivals that of a 300W CO₂ laser engraver.
12. Integrated Screw Rod: An all-in-one design for the stepper motor and screw rod ensures pinpoint laser accuracy and enhanced durability.
13. Convenient Laser Adjustment: Newly incorporated knob facilitates easy height adjustments.
14. Extreme Sintering Temperatures: Laser sintering reaches up to a searing 2400℃.
15. Side-Over Warning: Built-in gyroscope detection, when the tilt angle of the machine is greater than 15°, an alarm will be triggered, making engraving safer.

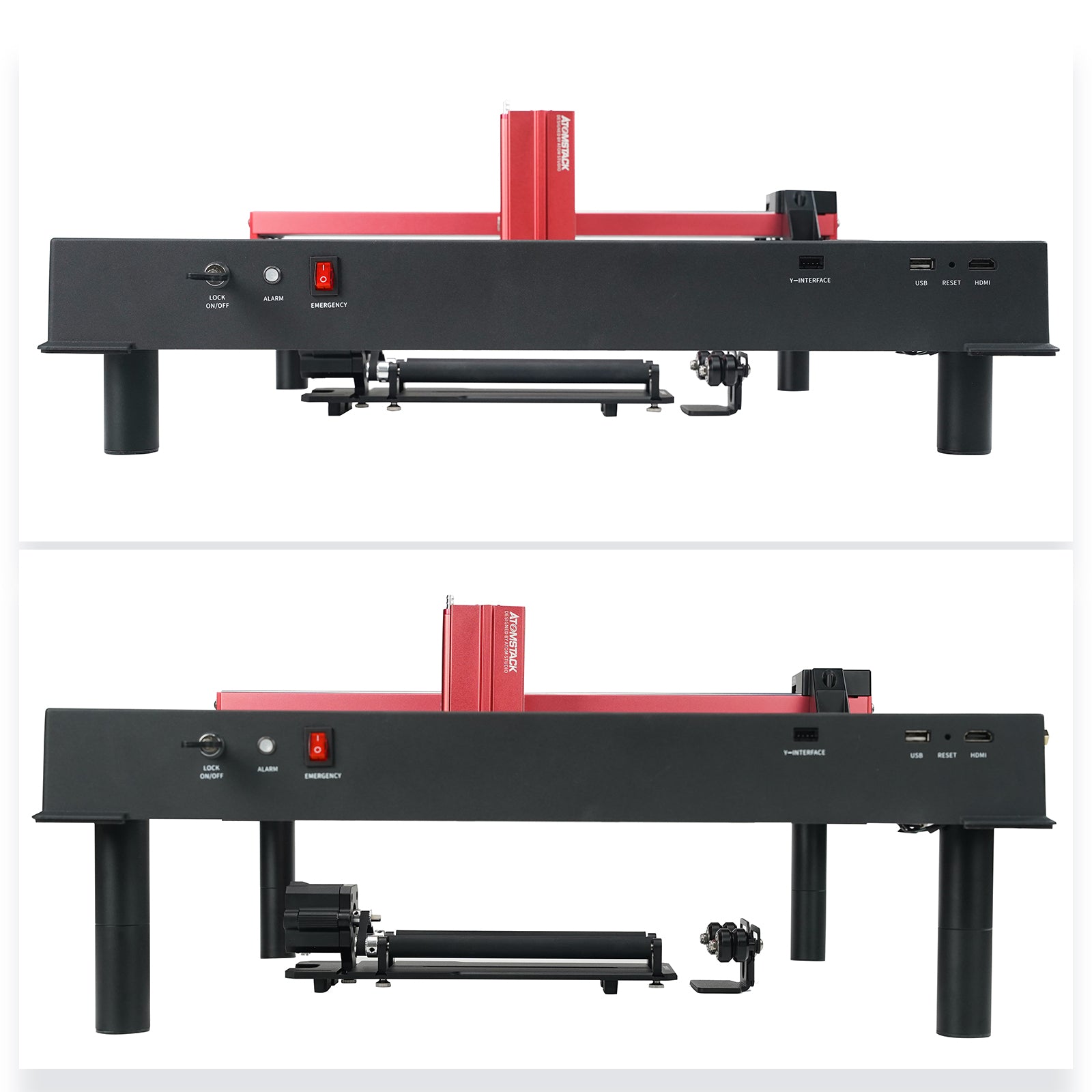

16. Emergency Control: An incorporated stop button ensures immediate response during unexpected situations, enhancing safety.
17. Built-In Limiter: Included for added safety and precision.
18. Reset Capability: Built-in for user convenience.
Specification:
Brand: AtomStack
Model: A24 Pro
Engraving Size: 365*305mm
Overall Machine Power: 120W
Laser Output Optical Power: 20-24W
Laser Wavelength: 455±5nm
Laser Spot: 0.06*0.06 mm
Focusing Mode: fixed focus laser, no focus
Laser shield: There is a protective shield on the laser that protects the user's eyes, no need to wear additional goggles.
Operating Software: LaserGRBL, LightBurn, Supports Windows/Linux/macOS
Supported File Formats: JPG, JPEG, SVG, PNG, BMP, PDF, G-Code, DXF.
Data Transfer Method: USB, APP
Power Supply: International standard power
Input: 100-240V AC, 50/60HZ
Output: 24V 5A
Certification: CE FCC RoHS FDA PSE
List of accessories:
Cable anchor x 8PCS
Cable clamp x 8PCS
WIFl antenna
Fixed focus lens
Flash drive
Power adapter 24V,5A
H3 hexagon L-shaped wrench
M4 thumb screw x 2PCS
Slider
Switch key
One-to-two TYPE C cable
Power cable
X-axis link cable
Silicone hose(air hose)
Goggles
100*30 lint-free cloth
(M4*6)x 4PCS
User manual
