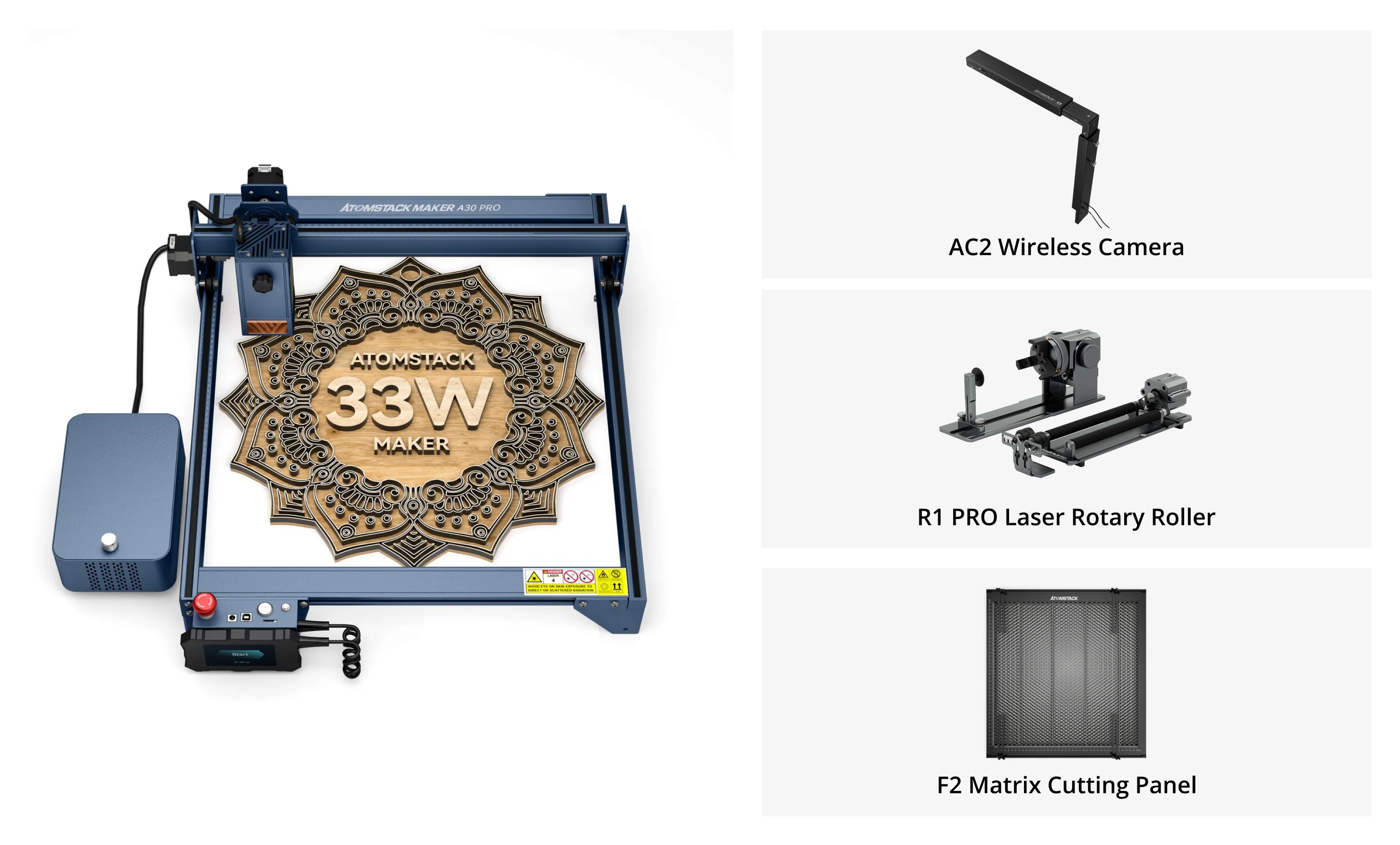

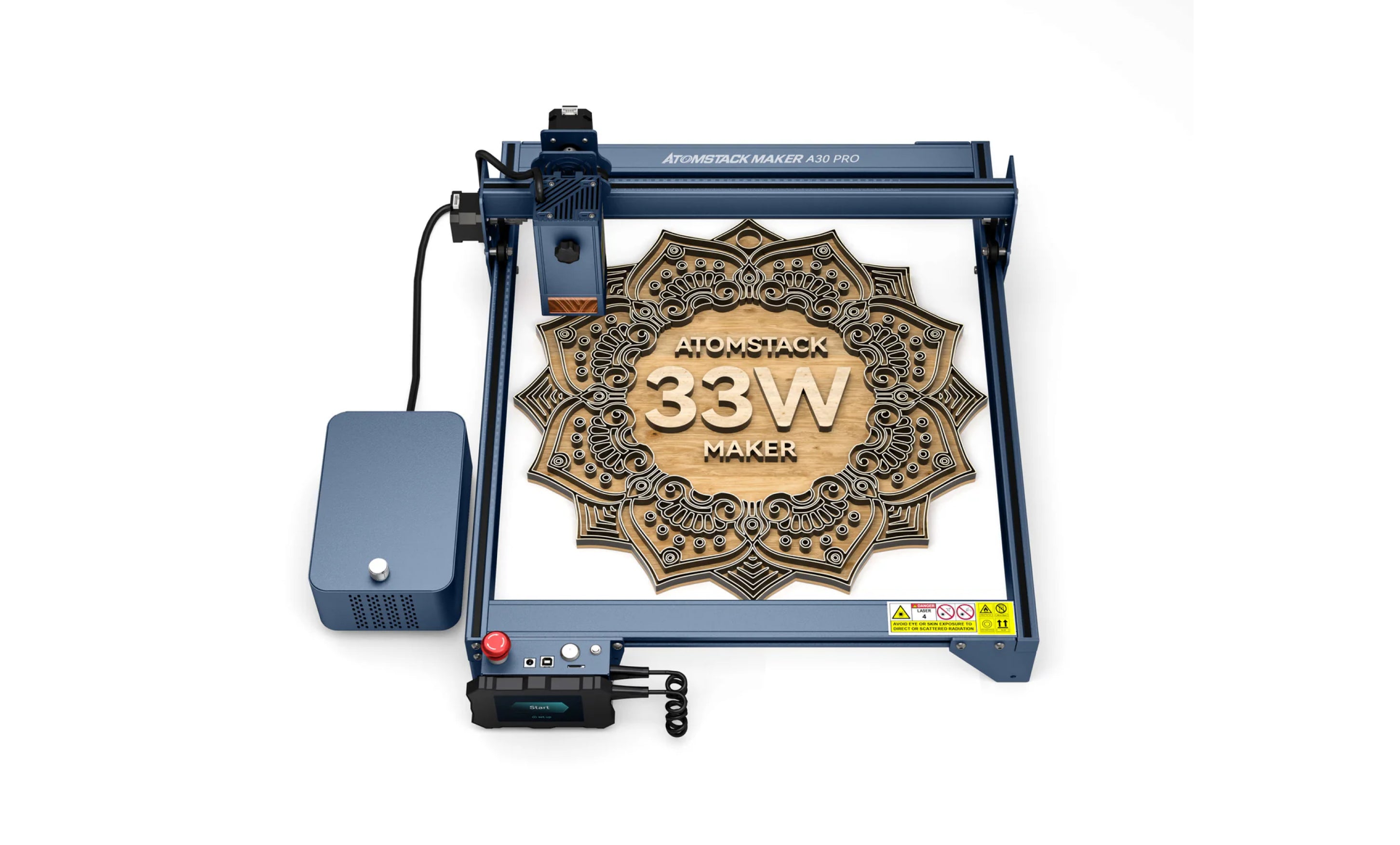

AtomStack A30/X30 Pro Laser Engraving and Cutting Machine with F60 Air Assist Kit
Reviews On AtomStack A## Pro Series
0.08mm*0.1mm Light Spot
Stable 33W Optical Power
Unparalleled Power: Introducing the world's first laser engraving machine with a groundbreaking 33W laser power output. Harnessing the latest 6x6W laser coupling technology, it effortlessly slices through 20mm wood and 10mm black acrylic in a single pass, and can even precision-cut 0.1mm stainless steel sheets. Its high-density laser, with multiple passes, can navigate through 25mm thick wood and 30mm black acrylic. Plus, it's capable of directly engraving materials like mirror-finished stainless steel, ceramics, and opaque glass.
Poly Wind Cover Design
Built-in Dual Pump Air Assist
The AtomStack A30 Pro comes standard with air assist, enhancing its cutting capabilities. This not only improves precision but also optimizes cutting quality, cementing the A30 Pro's status as a genuinely professional laser cutting machine. New innovative poly wind cover design help preventing laser head from being clogged, ensuring better cutting and engraving speed and results.
Supports Multiple Usage Methods And File Formats
1. Off-line controller terminal
2. AtomStack APP, compatible with Android, IOS, Windows, and MacOS platforms
3. LaserGRBL/ LightBurn
List of accessories:
control box * 1
Display screen * 1
Laser head * 1
Power Adapter * 1
Safety Glasses * 1
Y-axis slide rail * 2
Support beam * 2
X-axis rail * 1
Air-assisted Machine * 1
Power cable * 1
USB cable * 1
1. Unprecedented Power: Boasting the world's first 33W laser output, the A30 Pro harnesses the 6x6W laser coupling technology. It precisely cuts 20mm wood, 10mm black acrylic in a single pass, and even handles 0.1mm stainless steel. With repeated passes, it easily navigates 25mm thick wood and 30mm black acrylic. Directly engrave on materials like mirror-finished stainless steel, ceramics, and opaque glass.
2. Enhanced Efficiency: The A30 Pro showcases a cutting speed that's 200% faster than 10W lasers and boasts 150% deeper cuts. Against 20W lasers, it's 50% faster and achieves 25% deeper cuts.
3. F60 Air-Assist Kit: This upgraded feature significantly enhances cutting capabilities while optimizing both cutting precision and quality.
4. Advanced 32-bit Motherboard: Our latest AtomStack self-developed 32-bit motherboard comes with a built-in 256-bit color scale map, elevating the precision and contrast of engravings beyond just black.
5. Revolutionized Laser Module: The new A30 Pro laser module introduces a built-in tool-free focus and an integrated air-assist system, eliminating wire clutter, and streamlining aesthetics.
6. AtomStack Mobile App: Available on both Android and Apple stores (also accessible via a QR code in the manual), the app offers a new dimension in control.
7. Eye Protection with Panoramic Filtering: Filters out 97% of harmful UV rays, allowing safe viewing of the engraving process without goggles.
8. Sturdy and Quick Setup: Crafted from anodized full aluminum alloy, this design ensures durability and engraving precision. Plus, it's user-friendly, allowing for a setup in just 20 minutes.
9. State-of-the-Art Laser Module: Offering a fixed-focus laser module that doesn't require focal adjustments, this feature ensures both precise carvings and high-energy cuts. Moreover, its power stability outclasses zoom lasers.
10. Software Compatibility: Supports engraving software like LaserGRBL, LightBurn on operating systems from Win XP to Win 11, including MAC. Compatible with NC, BMP, JPG, PNG, DXF file formats.
11. Precision Scale Line Axis: Both X and Y axes have precision scale lines for quick measurements. It boasts a vast 400x400mm engraving area to cater to diverse engraving needs.
12. Next-Gen Focusing: The laser focus area has been refined to an impressive 0.08*0.1mm.
13. Seamless Integration: The machine utilizes an integrated screw system that enhances laser movement accuracy and component durability.
14. Laser Height Adjustment: The new knob ensures a swift and hassle-free height adjustment.
15. Offline Functionality: The A30 Pro comes with an onboard control panel, allowing offline engraving without PC tethering.
16. Extreme Temperatures: Achieves laser sintering temperatures of up to 3000℃.
17. Safety First: An emergency stop button ensures immediate machine shutdown during unforeseen situations.
18. Built-In Limiter: Included for added safety and precision.
19. Reset Functionality: Available for immediate system recalibration.
20. Expandable Workspace: The modular design allows easy upgrades. Simply replace the frame components to attain a massive 400x850mm working area.
Product Model: ATOMSTACK A30 PRO
Engraving Size: 400*400mm
Materials for Engraving/Cutting:
- Engraving Materials: Wood, bamboo, cardboard, plastic, leather, PCB boards, anodized aluminum, non-reflective electroplated and painted metal surfaces, 304 mirror stainless steel, glass, ceramics, cotton cloth, slate.
- Cutting Materials: Cardboard, non-woven fabric, wood, acrylic, some thin plastic sheets, sponge.
Total Power: 160W
Laser Electrical Power: 120W
Laser Output Optical Power: 33-36W
Laser Wavelength: 455±5nm
Engraving Precision: 0.01mm
Focusing Method: Fixed focus laser, there is no need for adjustment
Laser Protection Cover: The laser has a protective cover to safeguard the user's eyes, no need for additional protective glasses. It also prevents pets from grabbing the laser point.
Operating Software: LaserGRBL, LightBurn, supports Win XP / Win 7 / Win 8 / XP / Win 10 systems
Supported File Formats: NC, BMP, JPG, PNG, DXF
Data Transmission: USB connection
Power Supply: International standard power input: 100-240V AC, 50/60Hz, Output: 24V 6A
Certifications: CE, FCC, RoHS, FDA, PSE
