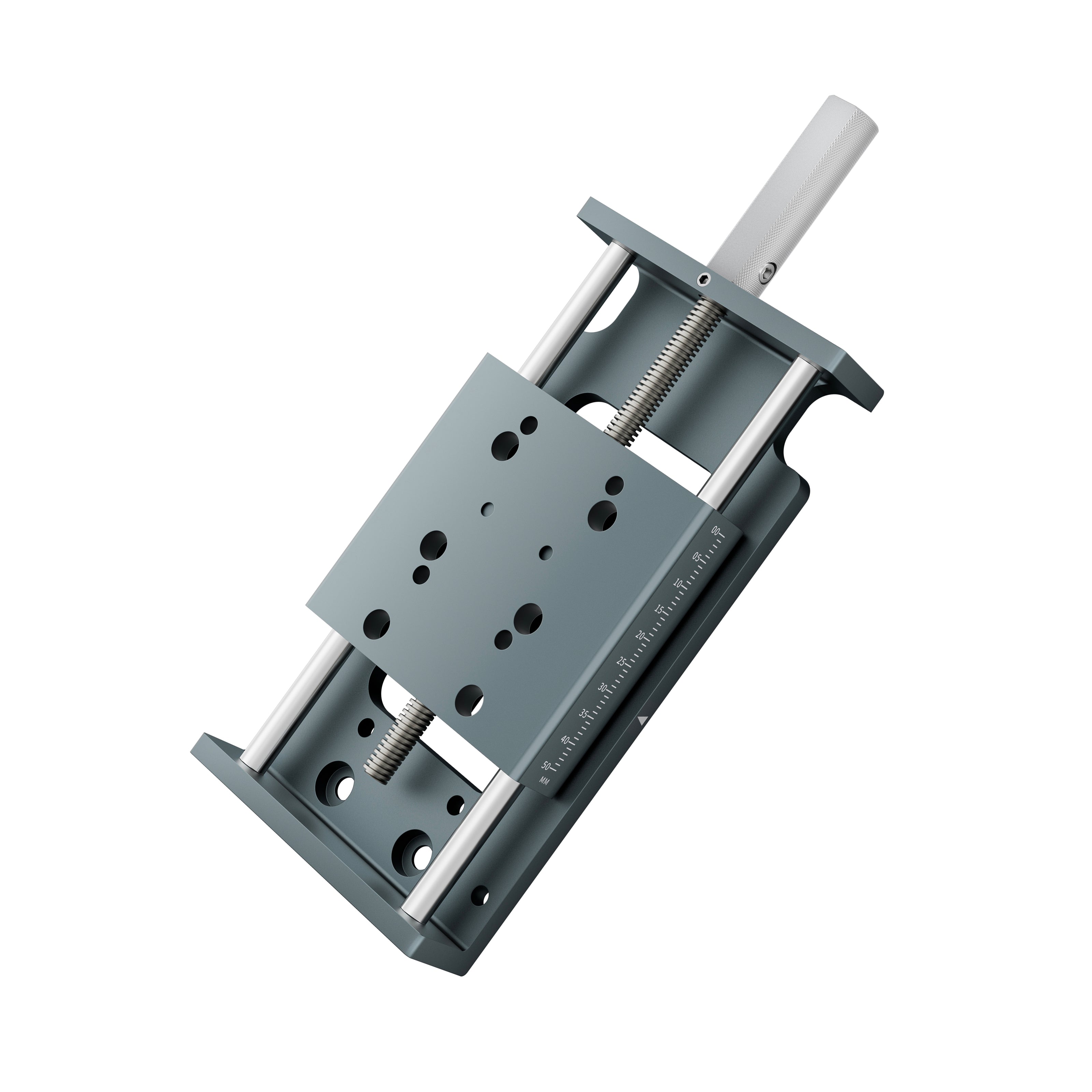

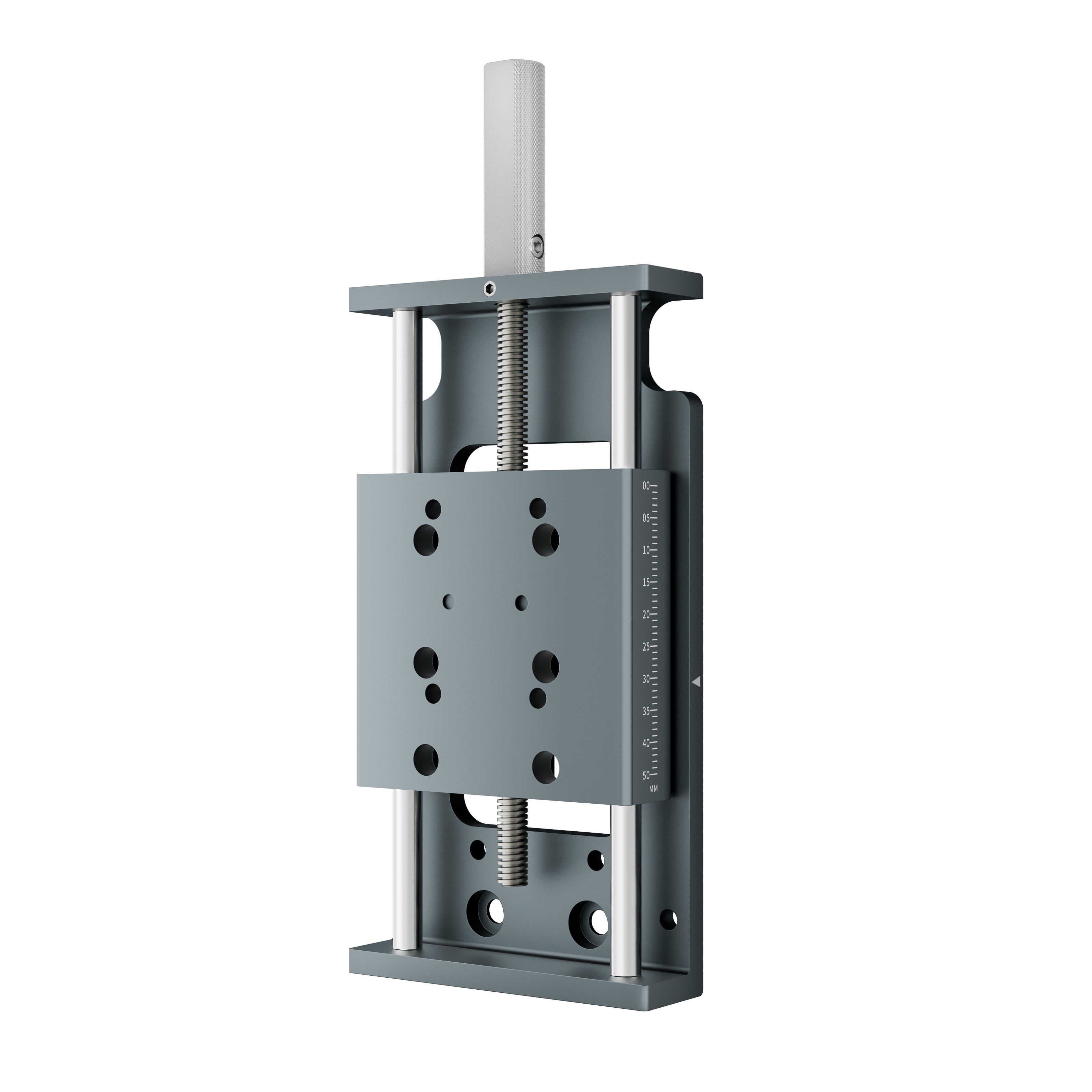

AtomStack L1 Z-axis Adjuster for Laser Module Height Adjustment
Earn [points_amount] when you buy this item.
Description:

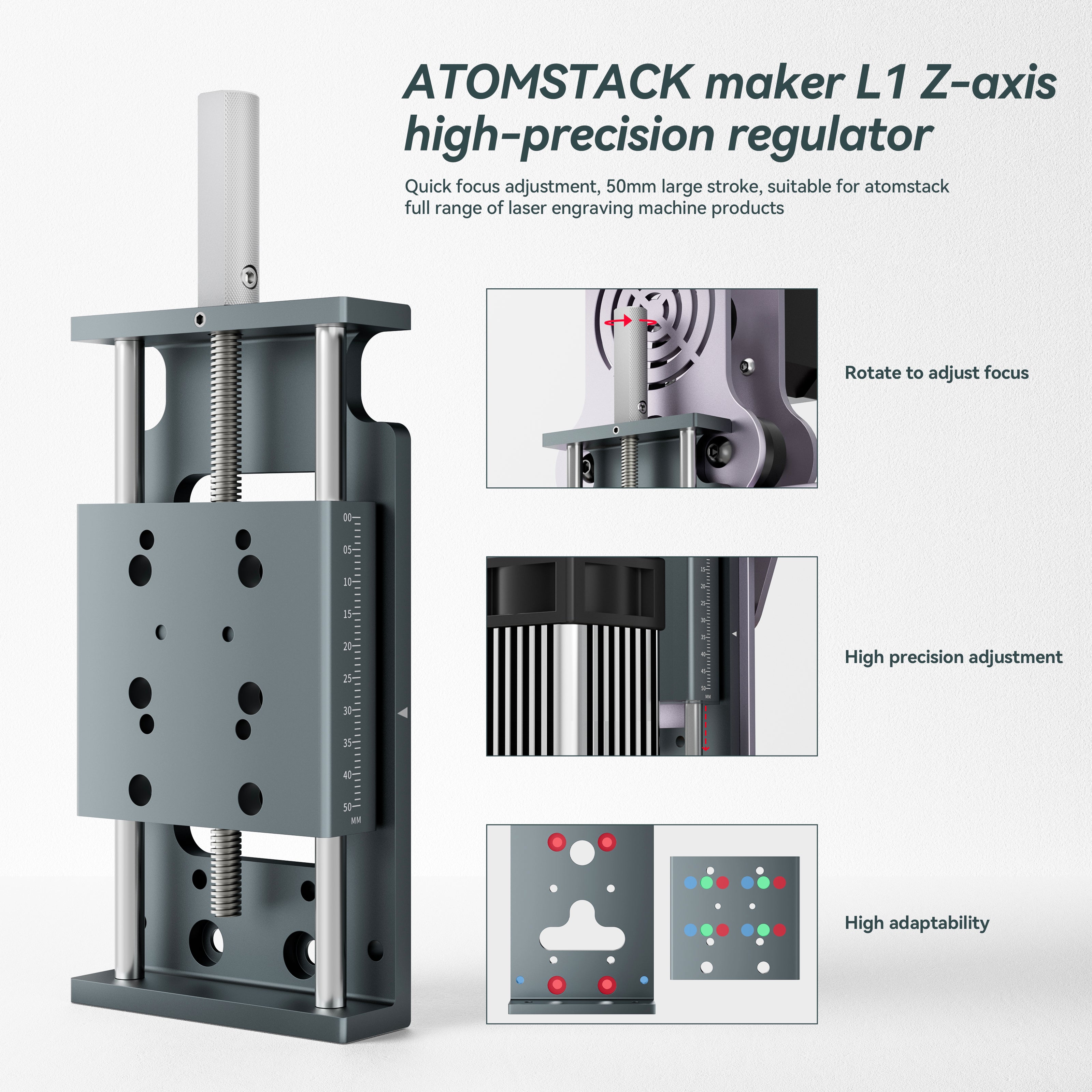

1. Precise focus adjustment by rotating the button: AtomStack L1 Z-axis sliding lift mechanism for AtomStack laser engraver models.

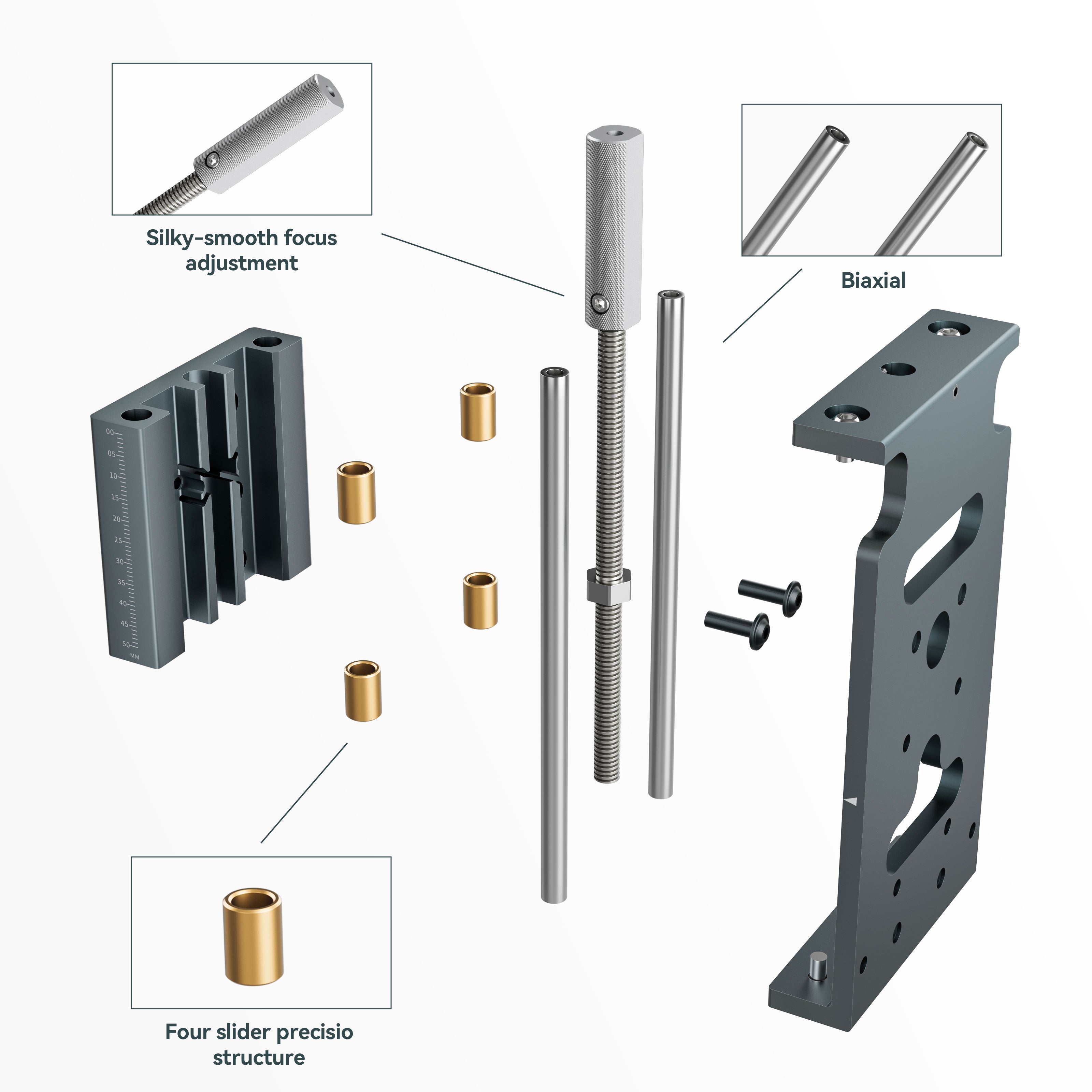

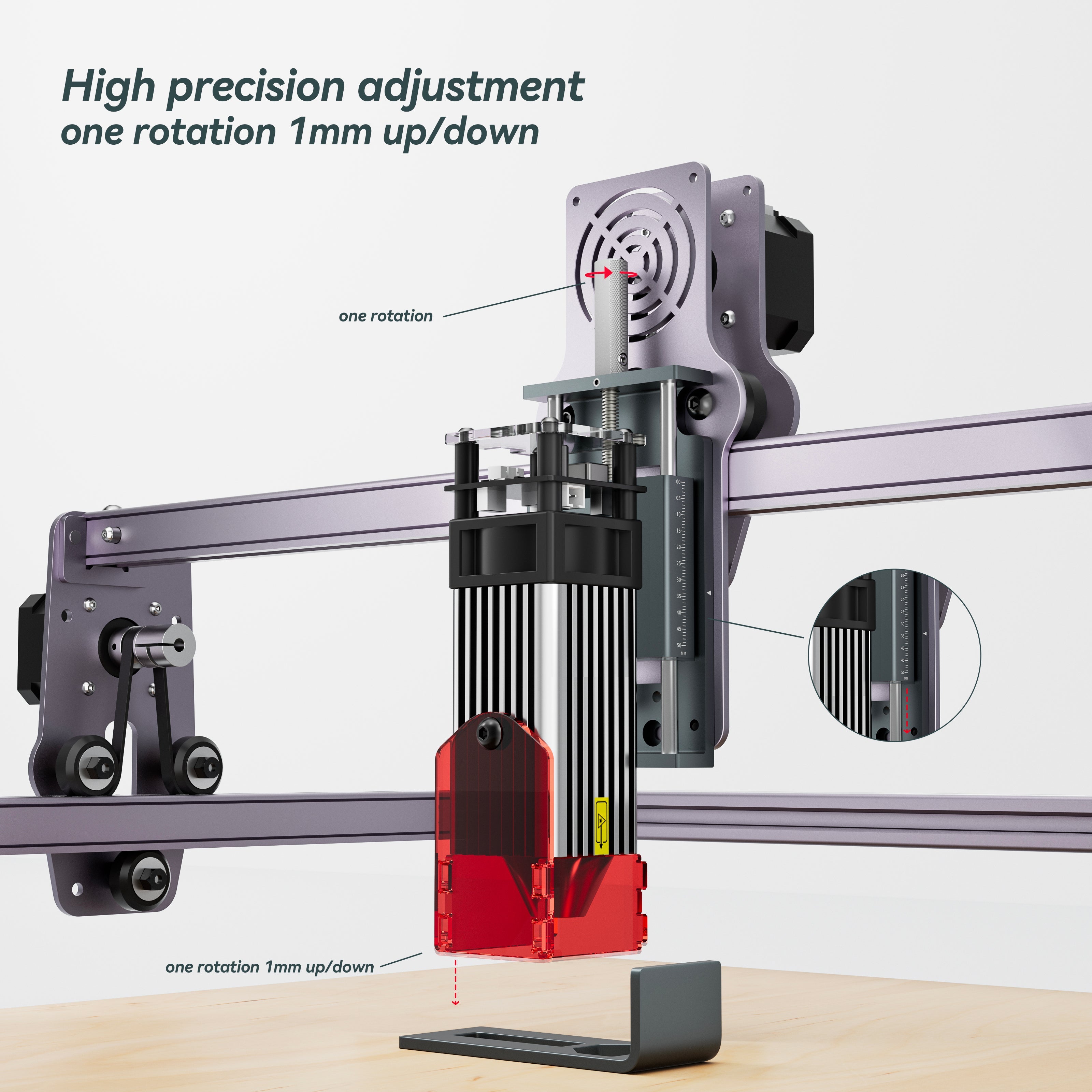

2. Precision structure: double optical axis, four slider precision structure, precise control of height, every rotation, the Z axis will rise or fall 1mm.
3. The AtomStack L1 Z-axis adjuster can be adapted to the AtomStack laser engraving machine range, with a height adjustment of 50 mm.
4. Easy to operate: 35*Φ10mm large size knob handle, easy to rotate.
5. Lightweight: 150*60*17mm slim size, installed in the machine with a stable center of gravity, will not shake and will not reduce the operating speed.

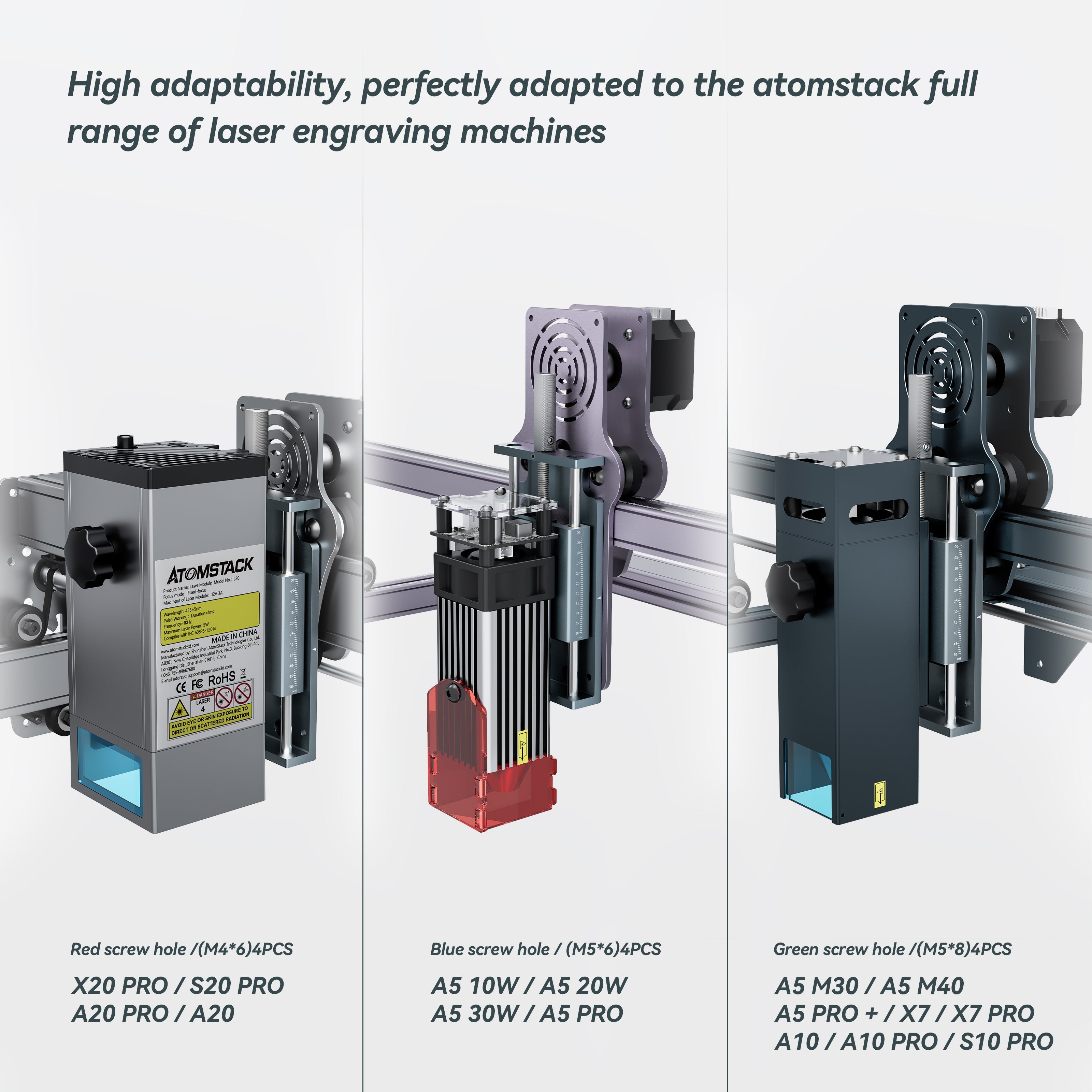

Compatible with the following models:
A30 Pro, S30 Pro, X30 Pro
A20 Pro, S20 Pro, X20 Pro
A10 Pro, S10 Pro, X7 Pro
A5 Series
[Please note]: This accessory is not compatible with the ATOMSTACK Hurricane 55W CO2 Laser Cutter.
Specification:
Brand | Atomstack |
Model | L1 |
Material | Metal |
Product Size | 150*60*17mm |
Slide stroke | 50mm |
Adaptable Laser Size | 33mm, 40mm, 51mm and 60mm |
Working Mode | Manual adjustment |
