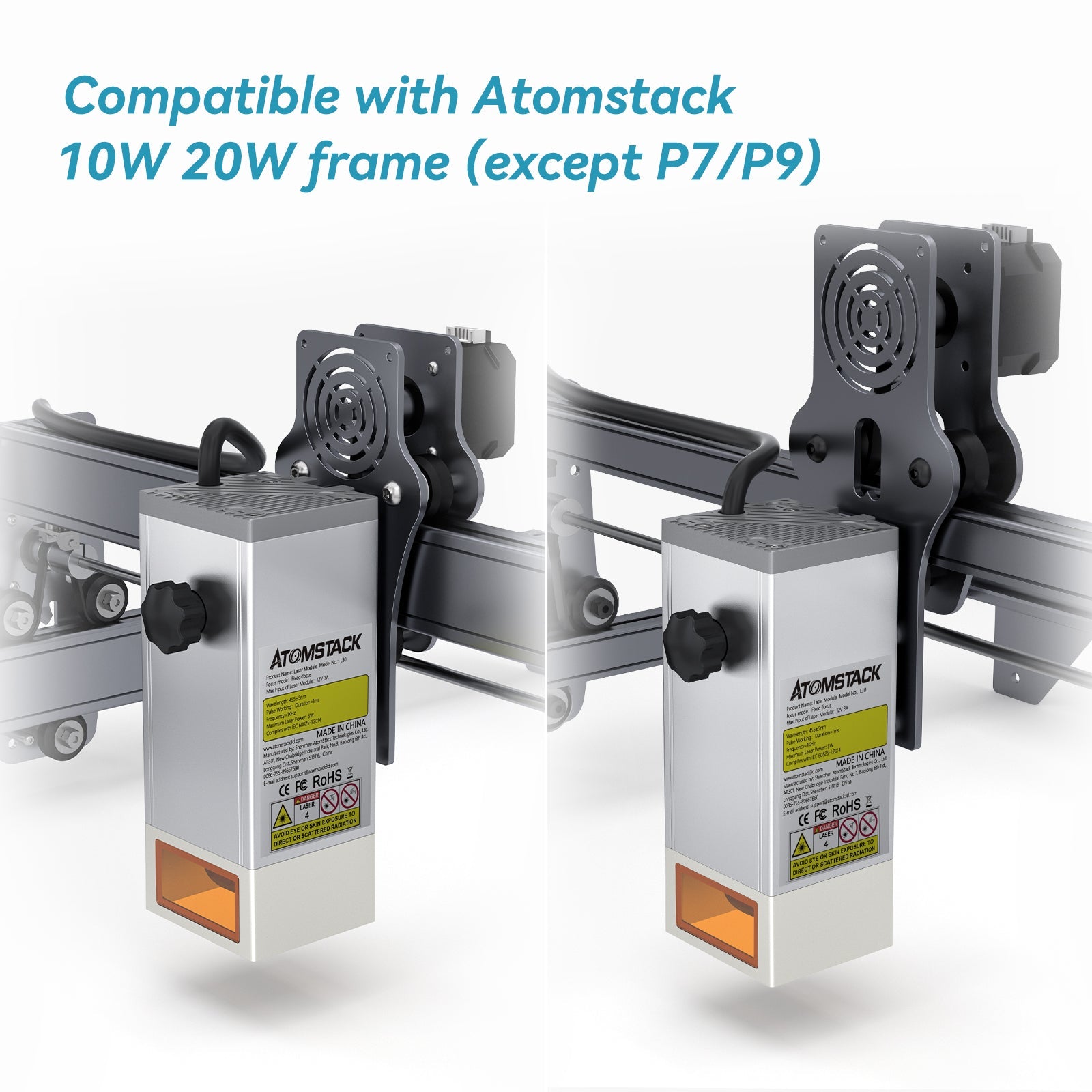

a. High adaptability: The M150 laser module can be installed on most engraving machine model of AtomStack 10W series (A10 Pro / S10 Pro / X7 Pro) 20W series (A20 Pro / S20 Pro / X20 Pro) 33W series (A30 Pro / X30 Pro) just use the corresponding adapter board and it can be used without any additional settings.(Not suitable for 5W and P7/P9 series machines)
If you own other brands of engravers such as Ortur NEJE Two-Trees etc. you can also install our AtomStack M150 laser module which comes with a free adapter in the box.

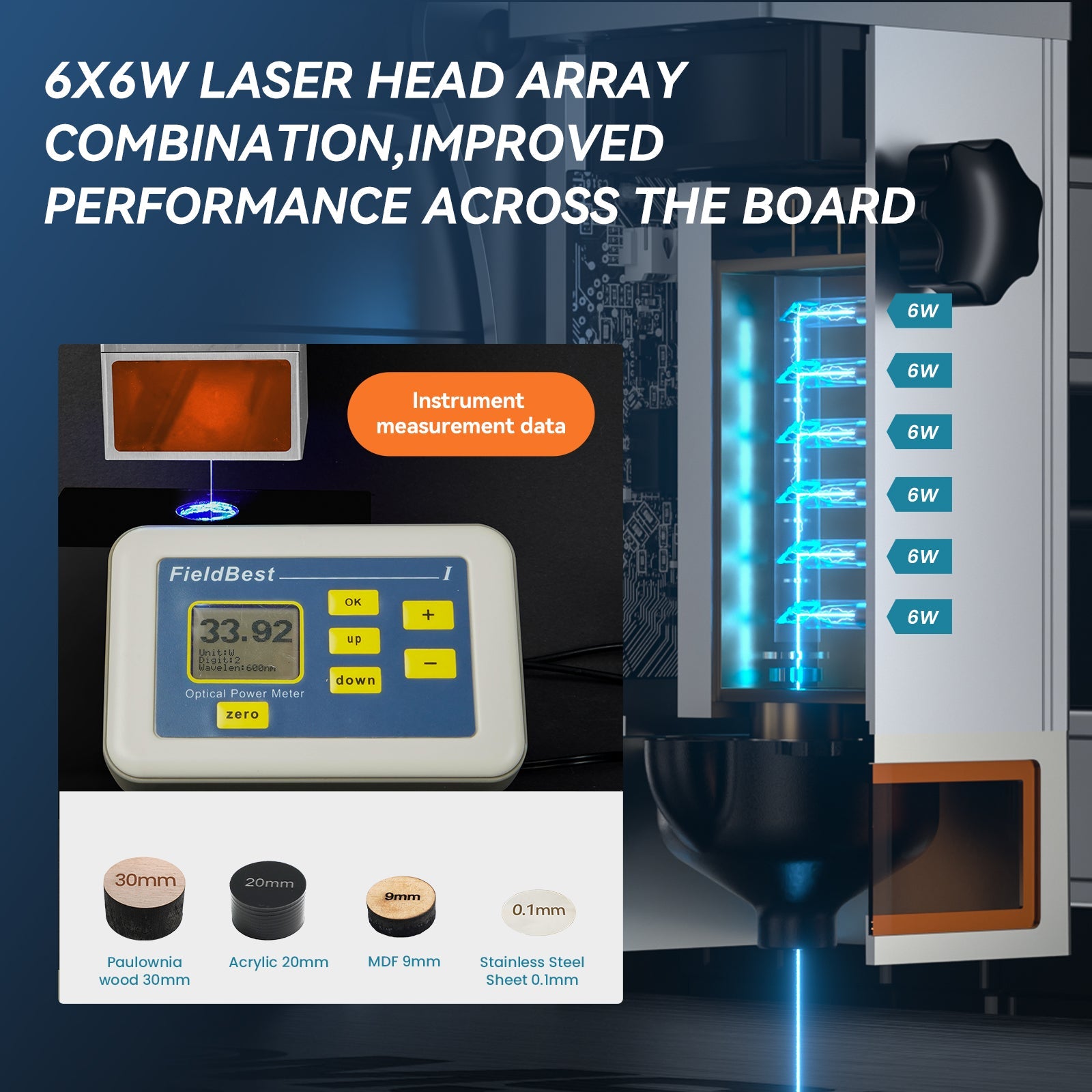

b. Powerful power: M150 adopts 6 laser chip coupling after compressed spot. Compared with 20W module products on the market its powerful power can increase the cutting depth of wood board by 25% increase the cutting speed by 50% with the same parameters and increase the clear engraving speed by 65%. Greatly improve work efficiency

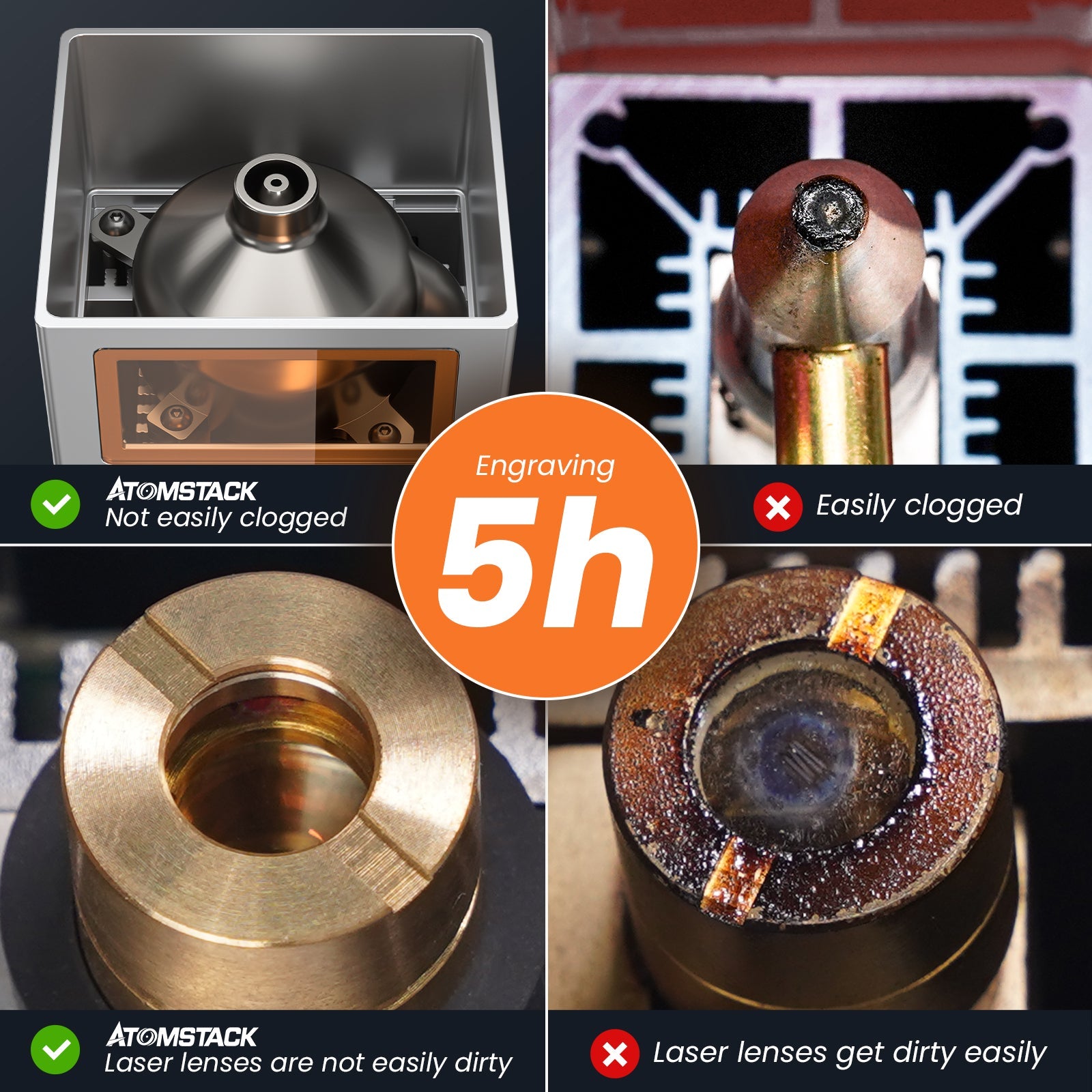

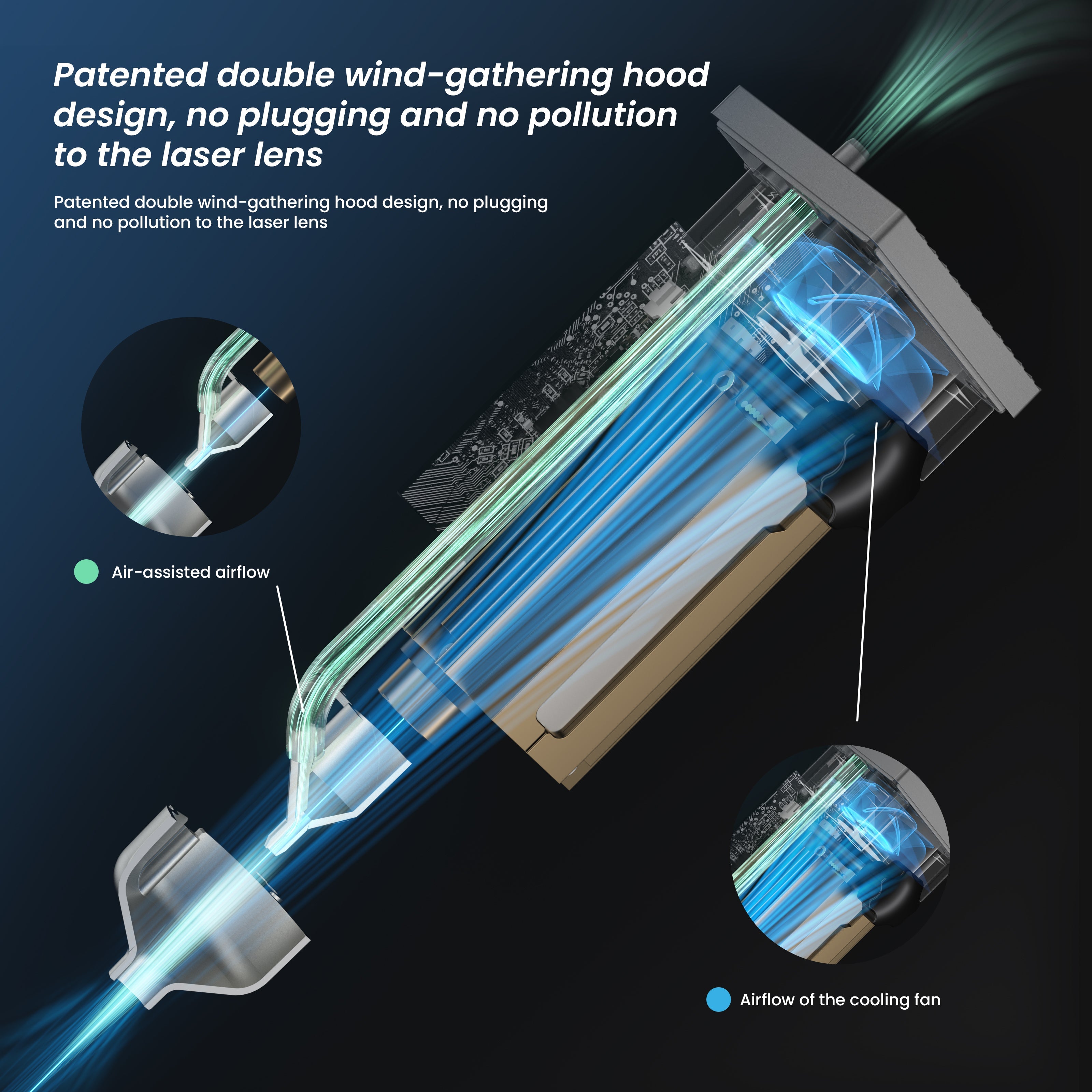

c. Non-blocking air outlet and pollution-free design: Non-blocking air outlet and pollution-free design:The M150 adopts the patented double air-gathering hood design the dual air ducts have different functions and the scientific air duct is used to clean up the debris and oil at the air outlet so that the laser can be kept clean at any time and the service life can be extended by 50%.

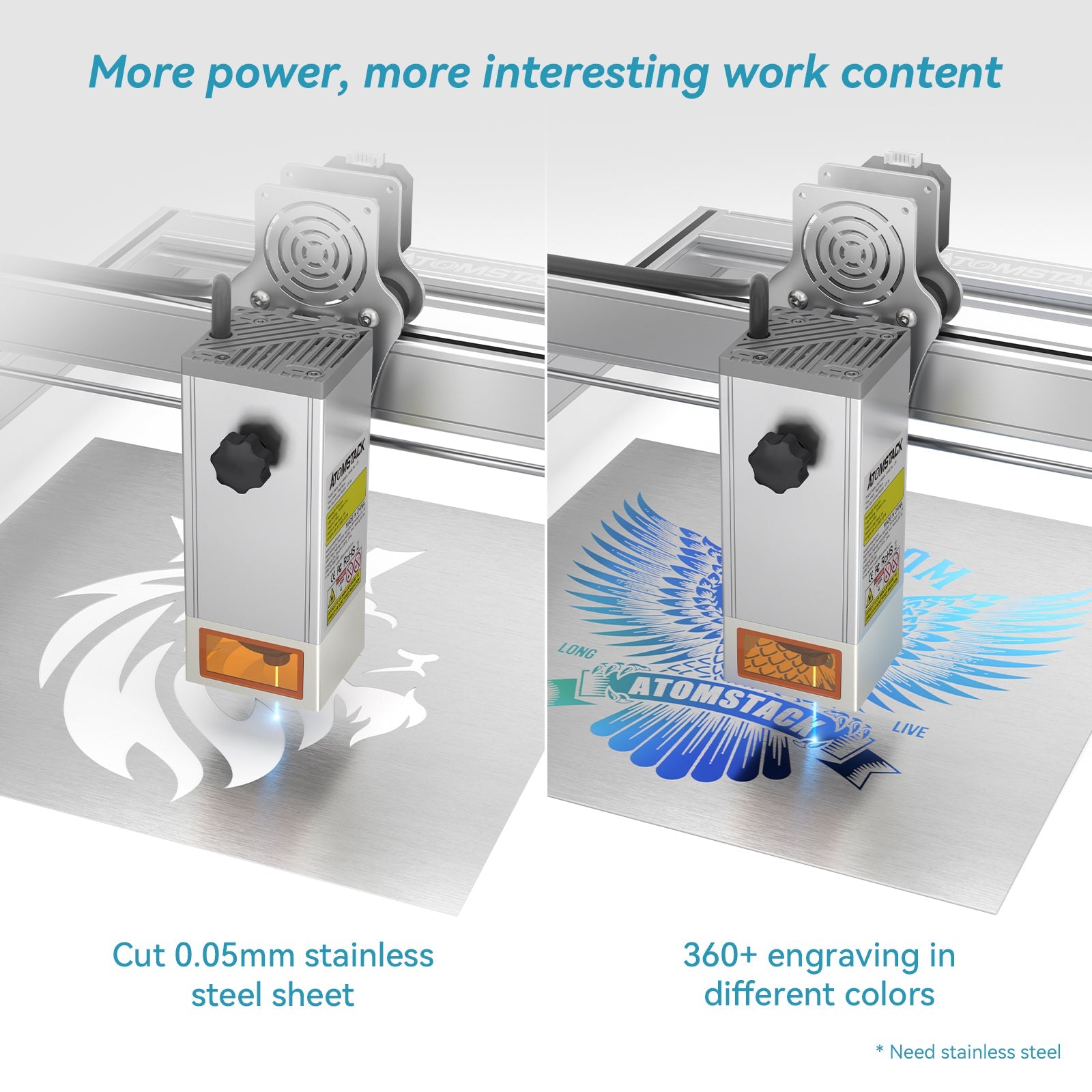

d. Metal cutting and color engraving: Thanks to the powerful optical power of the M150 all users can try more interesting new jobs. Such as cutting 0.05mm stainless steel sheet or color engraving with more than 360 different colors on stainless steel sheet.

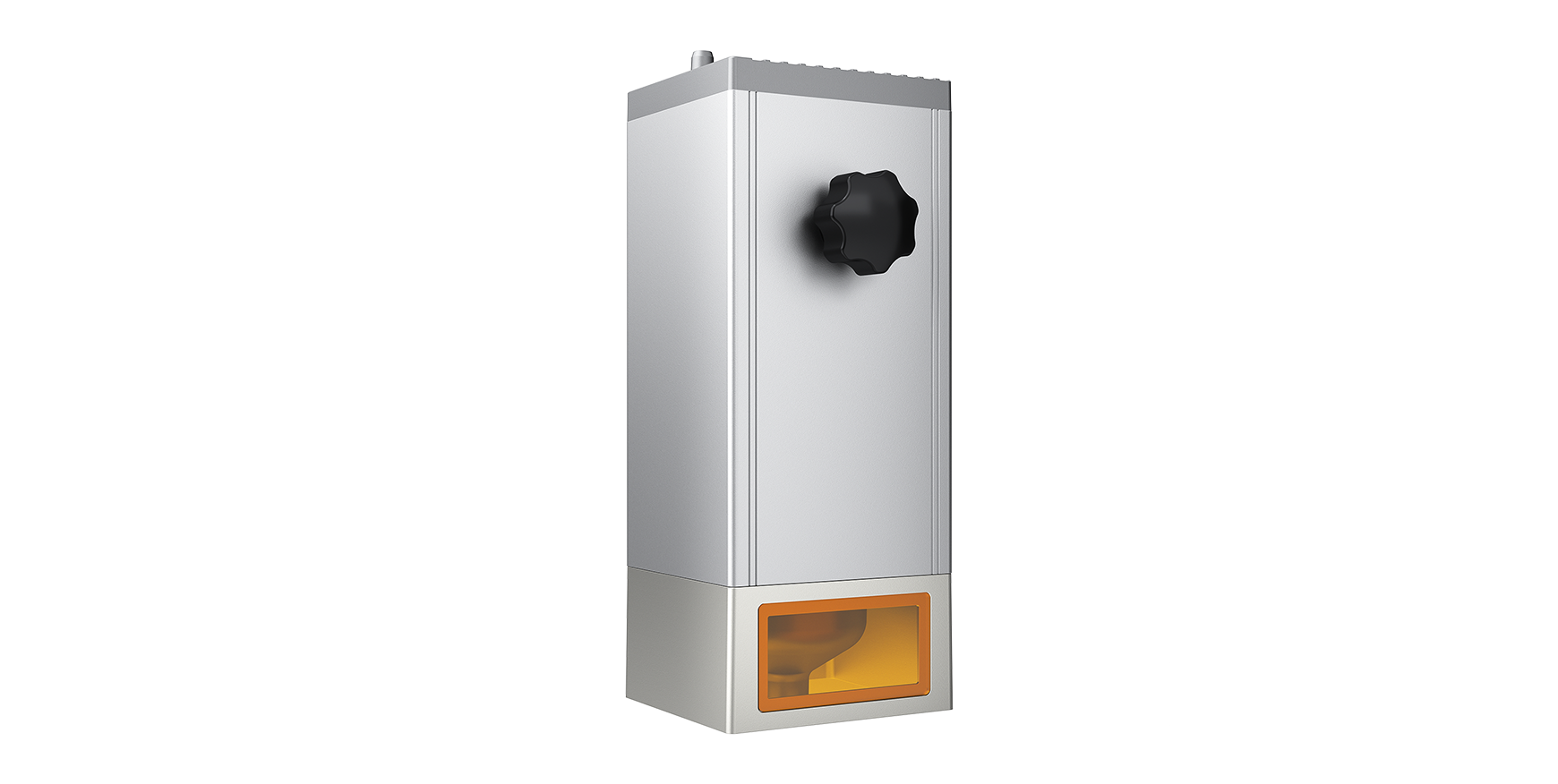

Higher laser power faster engraving speed! NEW AtomStack M150 33W six Ultrafine Compression Spot Laser Module: Can be used for laser cutting machine laser engraving machine CNC DIY laser. Upgrade high quality fixed focus laser no need to focus. The engraving speed is 150% higher than other 20W lasers.
[Please note]: This accessory is not compatible with the ATOMSTACK Hurricane 55W CO2 Laser Cutter.
Brand | AtomStack |
Model | M150 |
Optical Output Power | 30-33W |
Product Material | Aluminum 6061 Anode |
Housing Size | 140*65*60mm |
Circuit Board | V/PWM Modulation Board |
Wire Rod | 22# 2P2.54 Terminal Reverse Wire 80mm |
Optical Lens | φ6/glass |
Fan | 24V |
Laser Beam Mode | Spot |
Working Mode | Pulse Work |
Lightspot Size | 0.08*0.1mm |
Working Time | 10000H |
Working Temperature | 0℃~70℃ |
Storage Temperature | -40℃ ~ 85℃ |
Sintering Temperature | 2400 ~ 3000℃ |
Product Net Weight | 815g |
Items | Symbol | Min | Typ | Max | Unit | Condition |
Optical Output Power | Po | 30 | 33 | W | 24V Power | |
Working Current | Iop | / | 3.2 | 4.6 | A | |
Operating Voltage | Vop | / | 24 | / | V | |
Laser Wavelength | λp | 455 | 460 | nm |
a. The laser light emitted by the laser module is likely to injure persons'eye so do not directly gaze its end surface and wear appropriate safety glasses to prevent laser light when it is working.
b. Laser module needs an appropriate laser driver(PCB). When the laser module connects with power supply please set the output voltage to zero. The adjustment of the current should be slowly increased or decrease to avoid damaging the device.
c. Keep the device working or storing in a dry environment. The anti-dust grade is over one million in order to prevent dust inside the lens to affect the laser dot shape.
d. Working at high temperatures will increase the threshold current reduce conversion efficiency and speed up the aging of the device.
e. When output power is higher than it's specific parameter of operation it will accelerate the aging of the device.
f. When the operation temperature of the laser diode is over 70degree please do well heat dissipation of it.
g. This laser module is an electrostatic sensitive device. Please make sure ground yourself or wear an antistatic wrist strap before you take it.
